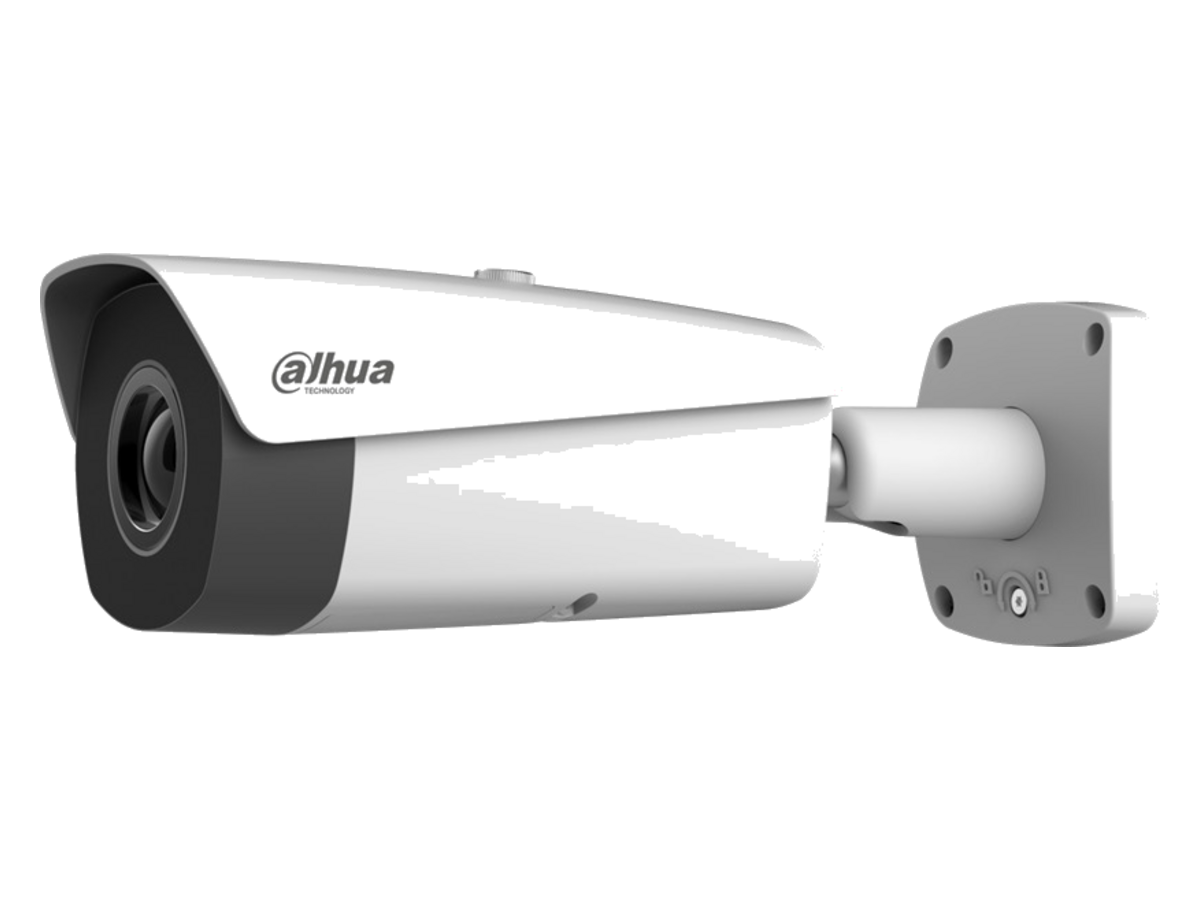

| Thermal Camera | Ethernet RJ-45 (10/100Base-T) |
|---|
| 影像感測器 | Uncooled VOx Microbolometer IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, 336(H)x256(V) DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, Effective Pixels 802.1x |
|---|
| Pixel Size | 17um Interoperability ONVIF Profile S & G, PSIA, CGI |
|---|
| Thermal Sensitivity(NETD) | <40mK@f/1.0 Streaming Method Unicast/Multicast |
|---|
| Spectral Range | 7~14um Max. User Access 10 Users/20 Users |
|---|
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR micro SD (128GB) Memory status display (Normal/Error/Active/ 14(Whitehot/Blackhot/Ironrow/Icefire/ Edge Storage Formatting/Lock), |
|---|
| Color Palettes | Fusion/Rainbow/Globow/Iconbow1/ NAS (Network Attached Storage), Local PC for |
|---|
| Iconbow2 .etc) | instant recording |
|---|
| Web Viewer | |
|---|
| Management Software | SmartPSS, DSS |
|---|
| 鏡頭類型 | Fixed |
|---|
| Focus Control | Athermalized, Focus-free Smart Phone Android, Ios |
|---|
| 焦距 | 7.5mm 13mm 19mm 25mm 35mm Certifications |
|---|
| H: 45° | H: 25° H: 17° H: 13° H: 9.3° |
|---|
| Angle of View | V: 35° V: 19° V: 13° V: 10° V: 7.1° Certification CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB ) |
|---|
| Effective Distance① | D②: 240m D: 450m D: 640m D: 1000m D: 1300m Interface |
|---|
| R③: 60m | R: 110m R: 160m R: 250m R: 320m |
|---|
| Man(1.8m*0.5m) | I ④: 30m I: 60m I: 80m I: 125m I: 160m |
|---|
| Video Interface | 1.0Vp-p/75Ω, PAL/NTSC (HDCVI Optional) |
|---|
| Effective Distance | D: 720m D: 1300m D: 2000m D: 3000m D: 4000m Audio Interface 1 Input |
|---|
| R: 180m | R: 350m R: 500m R: 720m R: 1000m |
|---|
| Vehicle(2.3m*2.3m) | I: 90m I: 180m I: 250m I: 360m I: 500m |
|---|
| RS485 | NA |
|---|
| 警報 | 2/1 In/Out |
|---|
| Compression | H.264/MJPEG Electrical |
|---|
| 主碼流 | Power Supply AC 24V/DC 12V/PoE 1280*1024 (default)/720P @1 ~ 25/30fps |
|---|
| Frame Rate | Power Consumption Max. 7W Sub Stream: 640*512 (default)/320*256 @1 ~ 25/30fps Environmental |
|---|
| 碼率控制 | CBR/VBR -40°C ~ +60°C (-40°F ~ +140°F)/Less than 95% RH Operating Condition |
|---|
| Bit Rate | H.264: 640 ~ 8192Kbps * Start up should be done at above -40°C (-40°F) |
|---|
| Motion Detetion | Off/On (4 zone, Rectangle) Strorage Conditions -40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH |
|---|
| Region of Interest | Off/On (4 zone) |
|---|
| 防護等級 | IP67 Electronic Image Stabilization (EIS) |
|---|
| Digital Zoom | 16x Construction |
|---|
| Flip | 180° Casing Metal |
|---|
| Mirror | Off/On Dimensions 291mm× 103mm× 97mm (11.46" x 4.06" x 3.82") |
|---|
| Privacy Masking | Off/On (4 area, Rectangle) Net Weight 1.37Kg (3.02 lb) |
|---|
| 毛重 | 1.7Kg (3.75 lb) Note: |
|---|
| Intelligence | ②D: Detection Distance ③R: Recognition Distance |
|---|
| IVS | Tripwire, Intrusion, Object Abandon/Missing ④I: Identification Distance |
|---|
| Advanced Intelligent Functions | Fire detection & alarm www.dahuasecurity.com |
|---|
| Ordering Information | Mounting Type |
|---|
| 類型 | Part Number Description |
|---|
| :ƵŶĐƟŽŶDŽƵŶƚ | WŽůĞDŽƵŶƚ |
|---|
| DH-TPC-BF5300P-A7 | PFA121 |
|---|
| PFA121 | PFA121+PFA152-E PFA121 + PFA152 Thermal: 336x256 7.5mm lens DH-TPC-BF5300N-A7 DH-TPC-BF5300P-A13 Thermal: 336x256 13mm lens DH-TPC-BF5300N-A13 |
|---|
| DH-TPC- | DH-TPC-BF5300P-A19 |
|---|
| BF5300 | Thermal: 336x256 19mm lens DH-TPC-BF5300N-A19 DH-TPC-BF5300P-A25 Thermal: 336x256 25mm lens DH-TPC-BF5300N-A25 DH-TPC-BF5300P-A35 Thermal: 336x256 35mm lens DH-TPC-BF5300N-A35 Accessories Optional： Dimensions(mm) 291.0[11.46"] 103.8[4.09"] 192.5[7.58"] 97.2[3.83"] PFA121 PFA152-E Junction box Pole Mount www.dahuasecurity.com |
|---|
