| Camera | Video |
|---|
| 影像感測器 | 1/2.7” CMOS Compression H.264+/H.264/MJPEG |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Streaming Capability 3 Streams 1080P(1920×1080)/720P(1280×720)/ |
|---|
| RAM/ROM | 256M/128M Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 1080P/720P/D1 (1 ~ 25/30fps) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; | Sub stream2: 720P/D1/CIF (1 ~ 25/30fps) Minimum Illumination 0Lux@F1.6 (IR on) |
|---|
| S/N Ratio | More than 50dB Bit Rate Control CBR/VBR H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ |
|---|
| IR Distance | Distance up to 30m (98ft) Bit Rate 10240Kbps |
|---|
| IR On/Off Control | Auto/Manual Day/Night Auto(ICR) / Color / B/W |
|---|
| IR LEDs | 4 Backlight Compensation BLC / HLC / WDR (120dB) |
|---|
| 鏡頭 | White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| 焦距 | 2.7mm~11mm Gain Control Auto / Manual |
|---|
| Max. Aperture | F1.6 Noise Reduction Ultra DNR (2D/3D) |
|---|
| Angle of View | H: 112.5° ~ 30° |
|---|
| Motion Detection | Support |
|---|
| Optical Zoom | 4x |
|---|
| Region of Interest | Support |
|---|
| Focus Control | Auto/Manual Electronic Image Stabilization N/A (EIS) |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| 除霧 | Support DORI Distance |
|---|
| Digital Zoom | 16x *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Flip 180° sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Privacy Masking Up to 24 areas |
|---|
| Detect | Observe Recognize Identify 120m(394ft) 48m(157ft) 24m(79ft) 12m(39ft) |
|---|
| Compression | G.711a/G.711u(32kbps)/PCM(128kbps) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° limited; Tilt: 0° ~ 90° |
|---|
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
|---|
| Manual Control Speed | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s |
|---|
| WiFi | Support |
|---|
| Preset Speed | Pan: 100° /s; Tilt: 60° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
|---|
| 預置位 | 300 DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Interoperability ONVIF Profile S&G, API |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Streaming Method | Unicast / Multicast Auto restore to previous PTZ and lens status after |
|---|
| Power up Action | Max. User Access 20 users power failure Activate Preset/ Scan/ Tour/ Pattern if there is no NAS (Network Attached Storage),Local PC for |
|---|
| Idle Motion | Edge Storage |
|---|
| command in the specified period | instant recording, Micro SD card 128GB |
|---|
| Intelligence | Management Software Smart PSS, DSS, DMSS Motion detection, Video tampering, Network Smart Phone IOS, Android |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | Certifications |
|---|
| Auto Tracking | N/A CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| IVS | Tripwire, Intrusion,Abandoned/Missing UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | Built-in Mic |
|---|
| Alarm I/O | N/A |
|---|
| PFB302S | PFA103 DC12V/2A Electrical |
|---|
| Wall Mount | Mount Adapter Power Adapter |
|---|
| 供電 | DC 12V/1.5A |
|---|
| 功耗 | 10W,13W (IR on) Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH PFA150 PFB300C PFA151 |
|---|
| Pole Mount | Ceiling Mount Corner Mount |
|---|
| 防護等級 | N/A |
|---|
| Vandal Resistance | N/A |
|---|
| PFA103+PFB302S | PFA103+PFB302S+PFA150 Construction |
|---|
| Casing | Metal |
|---|

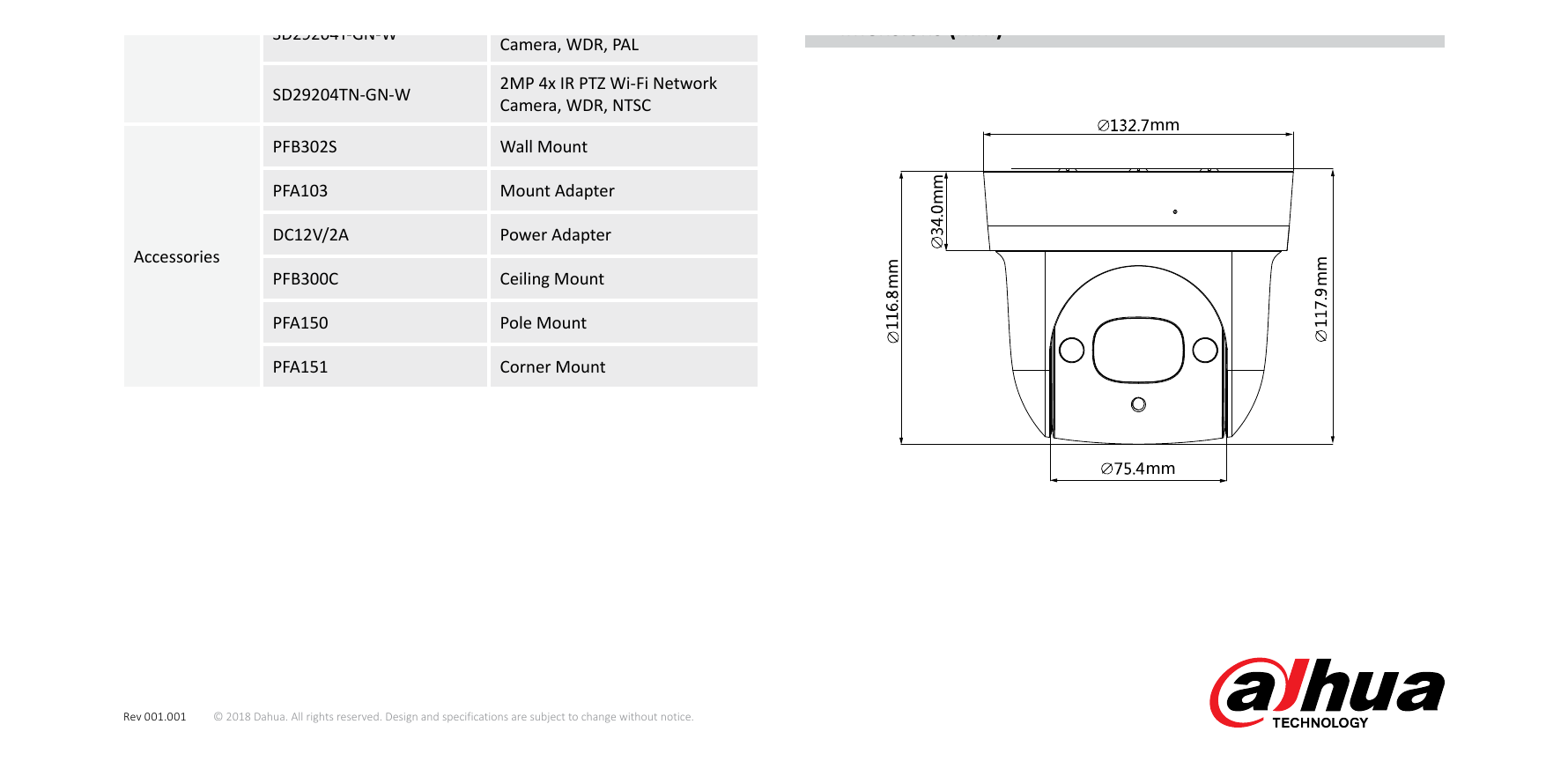

| 尺寸 | Φ132.7 (mm) x 117.9 (mm) |
|---|
| 淨重 | 0.95kg(2.09lb) |
|---|
| 毛重 | 1kg(2.20lb) Ceiling Mount PFA103+PFB300C Ordering Information |
|---|
| 類型 | Part Number Description 2MP 4x IR PTZ Wi-Fi Network DH-SD29204T-GN-W Camera, WDR, PAL 2MP 4x IR PTZ Wi-Fi Network DH-SD29204TN-GN-W 2MP PTZ Camera, WDR, NTSC |
|---|
| SD29204T-GN-W | Dimensions (mm) Camera, WDR, PAL 2MP 4x IR PTZ Wi-Fi Network SD29204TN-GN-W Camera, WDR, NTSC |
|---|
| PFA103 | Mount Adapter |
|---|
| DC12V/2A | Power Adapter Accessories |
|---|
| PFB300C | Ceiling Mount |
|---|
| PFA150 | Pole Mount |
|---|
| PFA151 | Corner Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
