| System | Audio Sample Rate 8 KHz, 16 bit Per Channel |
|---|
| Main Processor | Embedded Processor Audio Bit Rate 64 Kbps Per Channel |
|---|
| 操作系統 | Embedded LINUX Display |
|---|
| 周界防護 | Interface 1 HDMI ,1 VGA |
|---|
| Performance | 2 channels, 10 IVS for each channel VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × Human/Vehicle secondary recognition for tripwire and Resolution 720 |
|---|
| Object classification | It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 intrusion when Face or IVS&SMD is selected in AI Mode. |
|---|
| AI Search | Search by target classification (Human, Vehicle) When IP extension mode not enabled: 1/4/8/9/16 Multi-screen Display When IP extension mode enabled: 1/4/8/9/16/25 Camera title, Time, Video loss, Camera lock, Motion OSD |
|---|
| Max 12 face pictures/sec processing | detection, Recording |
|---|
| 接口 | 1 RJ-45 Port (1000 MB) Detect strangers' faces (not in device's face database). |
|---|
| Similarity threshold can be set manually. | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, Up to 8 target face images search at same time, similarity Network Function |
|---|
| to each face picture. | Smart Phone iPhone, iPad, Android Each database can be applied to video channels |
|---|
| Database Application | Interoperability ONVIF 16.12, CGI Conformant independently . Buzzer, Voice Prompts, Email, Snapshot, Recording, Video Detection and Alarm Alarm Out, PTZ Activation, etc. Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Trigger Events |
|---|
| SMD Plus | Buzzer and Screen Tips Motion Detection, MD Zones: 396 (22 × 18), Video Loss, |
|---|
| Video and Audio | Relay Output N/A |
|---|
| Analog Camera Input | 16 channels, BNC Playback and Backup 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 1/4/9/16 720P@25/30fps Playback It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode. |
|---|
| AHD Camera Input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps Time /Date, Alarm, MD and Exact Search (accurate to Search Mode |
|---|
| TVI Camera Input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps second) Play, Pause, Stop, Rewind, Fast play, Slow Play, Next |
|---|
| CVBS Camera Input | PAL/NTSC Playback Function File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|---|
| IP Camera Input | 16+8 channels, each channel up to 6MP |
|---|
| Backup Mode | USB Device/Network |
|---|
| Audio In/Out | 1/1, RCA Storage |
|---|
| Two-way Talk | Reuse audio in/out, RCA |
|---|
| Internal HDD | 1 SATA Port, up to 10TB capacity |
|---|
| eSATA | N/A |
|---|
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
|---|
| 解像度 | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
|---|
| USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/ RS485 1 Port, for PTZ Control D1/CIF (1fps–25/30fps) |
|---|
| Sub stream: D1/CIF (1fps–15fps) | RS232 N/A |
|---|
| Bit Rate | 32 Kbps–6144 Kbps Per Channel Electrical Manual, Schedule (General, Continuous), MD (Video |
|---|
| Record Mode | detection: Motion Detection, Video Loss, Tampering), Power Supply DC 12V/2A Alarm, Stop 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post- Power Consumption <12W |
|---|
| Record Interval | (Without HDD) record: 10 s–300 s www.dahuasecurity.com |
|---|
| Construction | Panels Mini 1U, 325 mm × 257 mm × 55 mm |
|---|
| 尺寸 | 1 2 9 10 (12.80'' × 10.10'' × 2.17'') Net Weight 1.2 kg (2.6 lb) (without HDD) |
|---|
| 毛重 | 2.0 kg (4.4 lb) |
|---|
| 安裝 | Desktop installation 3 4 5 6 78 Environmental |
|---|
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 0–90% RH 1 VIDEO IN 6 Network Interface |
|---|
| 儲存環境 | -20°C to +70°C (-4°F to +158°F) , 0–90% RH 2 AUDIO IN, RCA Connector 7 RS485 Interface |
|---|
| Third-party Support | 3 AUDIO OUT, RCA Connector 8 DC 12V Power Input 4 HDMI Interface 9 VGA Interface Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP |
|---|
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 Ordering Information |
|---|

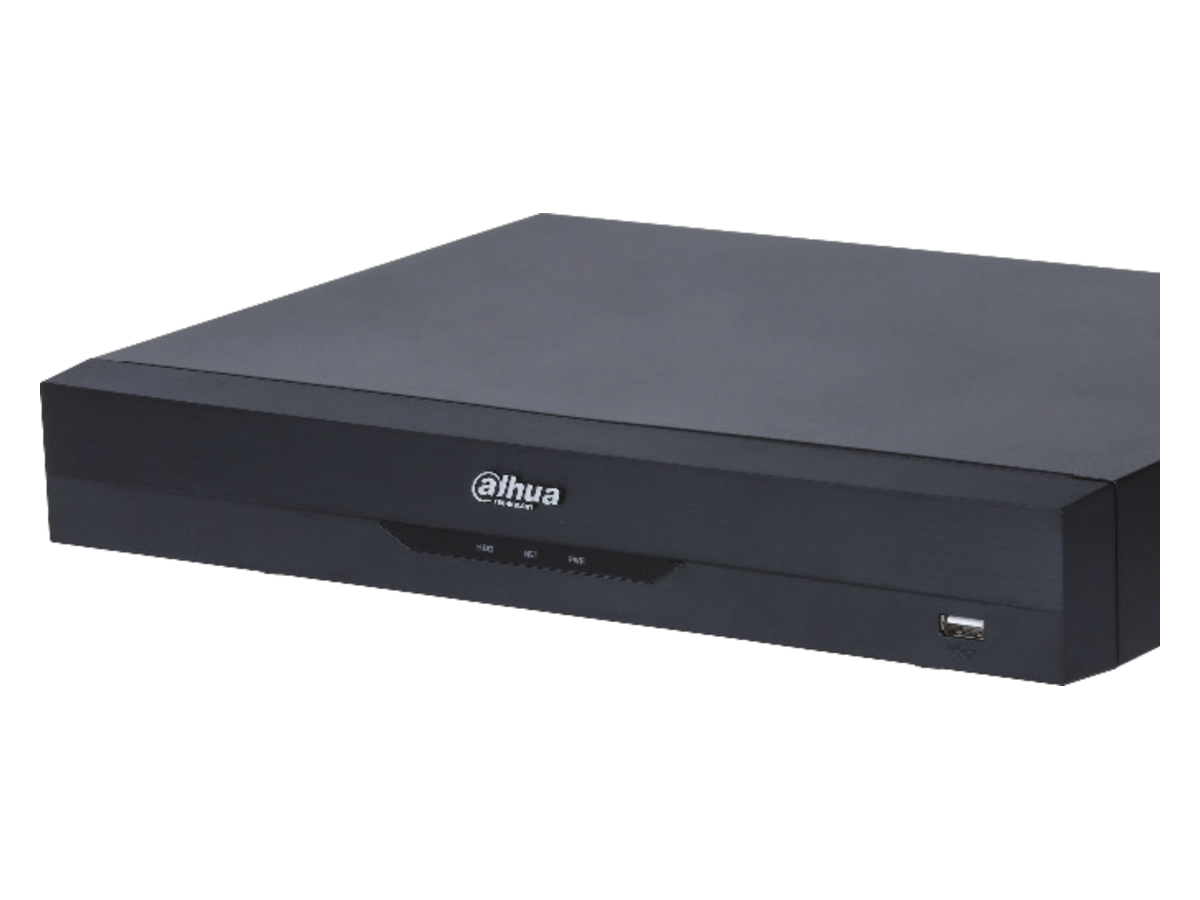

| 類型 | Model Description 16 Channel Mini 1U WizSense Digital Video DH-XVR5116H-I2 |
|---|

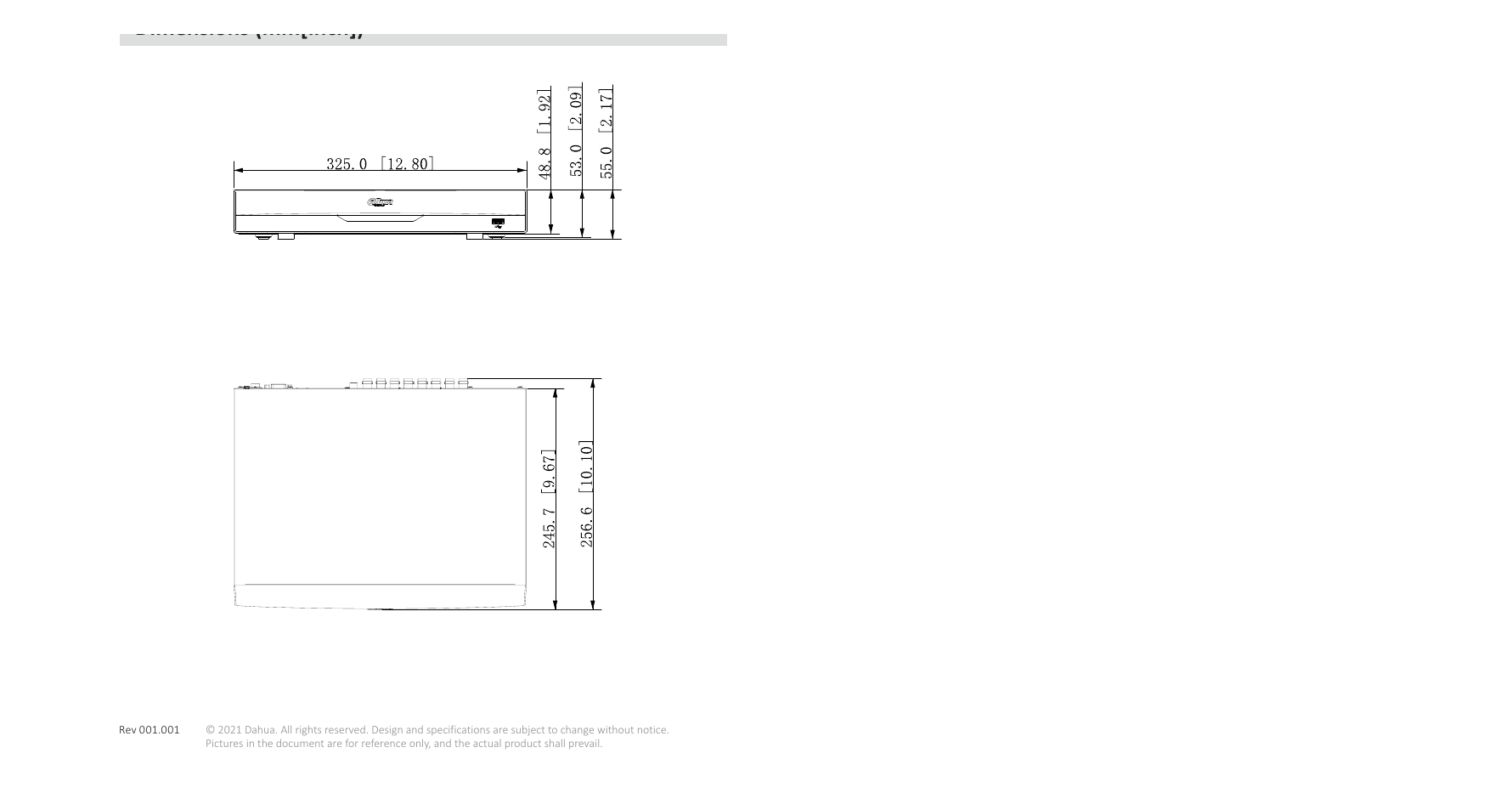

| WizSense XVR | Recorder Dimensions (mm[inch]) |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
