| Camera | Noise Reduction 3D NR |
|---|
| 影像感測器 | 2 MP CMOS Illumination Mode Smart IR |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Mirror Yes |
|---|
| Scanning System | Progressive Privacy Masking Off/On (8 areas, rectangle) Electronic Shutter Speed |
|---|
| PAL: 1/25 s–1/100000 s | Certification NTSC: 1/30 s–1/100000 s 0.01 lux@F2.0 (Color, 30 IRE) CE-LVD: EN 62368-1; |
|---|
| 最低照度 | 0.001 lux@F2.0 (B/W, 30 IRE) CE-EMC: EN 55032; EN 55035; Certifications 0 lux (Illuminator on) FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
|---|
| S/N Ratio | >65 dB Port |
|---|
| Illumination Distance | 40 m (131.23 ft) Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| Illuminator On/Off Control | Auto BNC port |
|---|
| Illuminator Number | 3 (IR light) Power |
|---|
| Pan: 0°–355° | Power Supply 12 VDC ± 30% |
|---|
| 角度調節 | Tilt: 0°–80° |
|---|
| Rotation: 0°–355° | Power Consumption Max 2.8 W (12 VDC, IR on) |
|---|
| 鏡頭 | Environment |
|---|
| 鏡頭類型 | Fixed-focal Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 鏡頭接口 | M12 Operating Humidity <95% (RH), non-condensing |
|---|
| 焦距 | 2.8 mm;3.6 mm Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Max. Aperture | F2.0 Storage Humidity <95% (RH), non-condensing 2.8 mm: H: 102°; V: 60°; D: 129° Protection IK10; IP67 Field of View 3.6 mm: H: 83°; V: 48°; D: 105° |
|---|
| Iris Control | Fixed Structure 2.8 mm: 0.5 m (1.64 ft) |
|---|
| Casing Material | Metal Close Focus Distance 3.6 mm: 0.7 m (2.30 ft) |
|---|
| Product Dimensions | Φ112.0 mm × 89.1 mm (Φ4.41" × 3.51") |
|---|
| 淨重 | 0.44 kg (0.97 lb) |
|---|
| DORI 偵測距離 | 41.4 m 16.5 m 8.3 m 4.1 m 2.8 mm |
|---|
| Distance | (135.83 ft) (42.13 ft) (27.23 ft) (13.45 ft) Gross Weight 0.62 kg (1.37 lb) 50.9 m 20.3 m 10.2 m 5.1 m 3.6 mm Installation Wall mount; ceiling mount; vertical pole mount (166.99 ft) (66.60 ft) (33.46 ft) (16.73 ft) CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; Video Frame Rate TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|---|
| 解像度 | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; Area white balance www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description 2MP IR HDCVI Fixed-focal Vandal-proof |
|---|
| DH-HAC-HDBW1200EAP | Dome Camera, PAL 2MP Camera 2MP IR HDCVI Fixed-focal Vandal-proof |
|---|
| DH-HAC-HDBW1200EAN | Dome Camera, NTSC |
|---|
| PFA136 | Junction Box |
|---|
| PFA106 | Mount Adapter |
|---|
| PFB220C | Ceiling Mount Bracket |
|---|
| PFB203W | Wall Mount Bracket |
|---|
| PFA152-E | Pole Mount Bracket Accessories (Optional) Wall Mount Bracket PFB305W |
|---|
| PFA151 | Corner Mount Bracket |
|---|
| PFM800-E | 1 Channel Passive HDCVI Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|

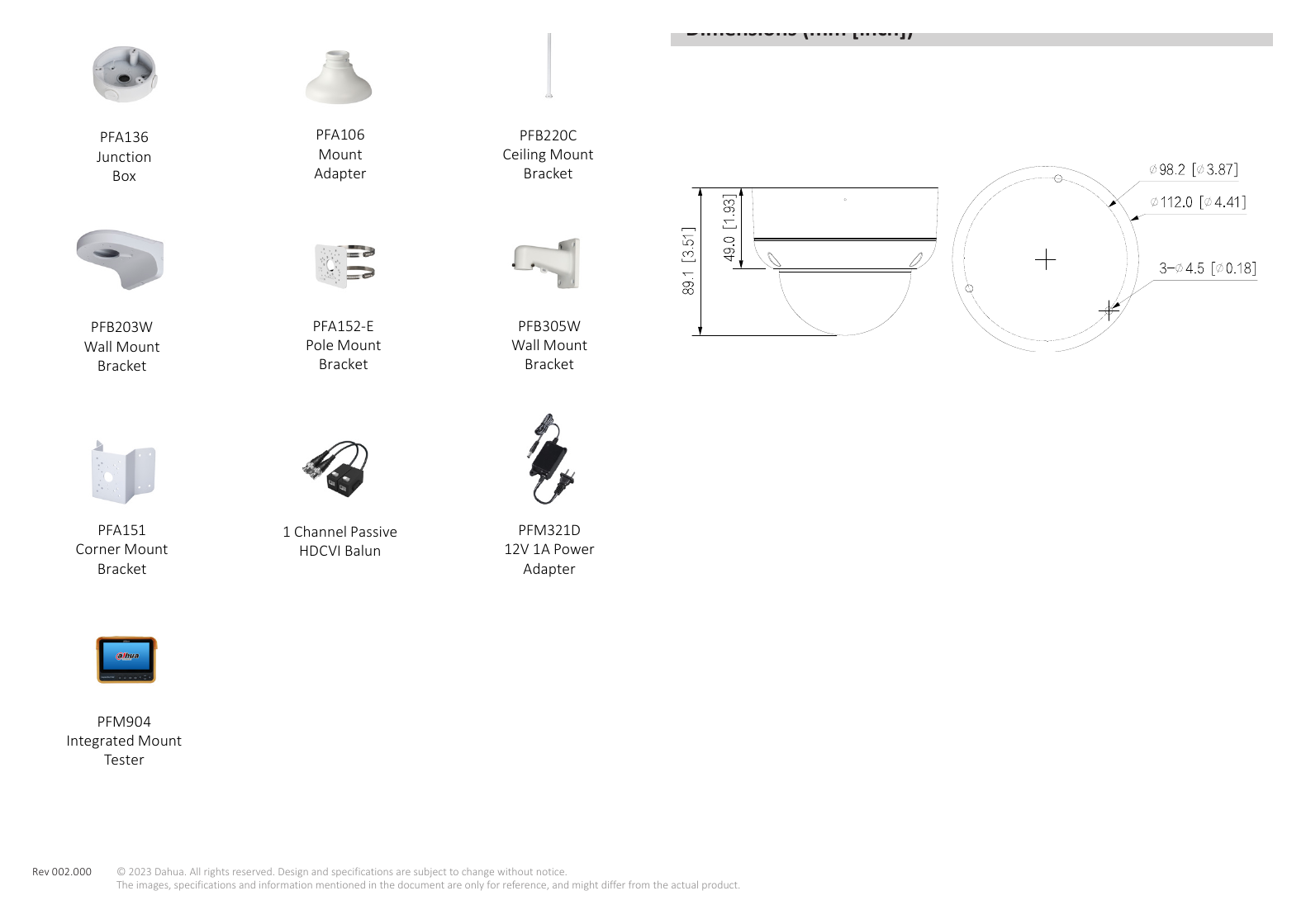

| PFM904 | Integrated Mount Tester Accessories Optional: Dimensions (mm [inch]) |
|---|
| Junction | Mount Ceiling Mount |
|---|
| Box | Adapter Bracket |
|---|
| Wall Mount | Pole Mount Wall Mount |
|---|
| Bracket | Bracket Bracket |
|---|
| Corner Mount | HDCVI Balun 12V 1A Power |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
