DAHUA HAC-HDBW1231RA-Z-A CCTV攝影機安裝・保養

Name: DAHUA HAC-HDBW1231RA-Z-A DH-HAC-HDBW1231RA-Z-A
Brand: Dahua
SKU: HAC-HDBW1231RA-Z-A

產品簡介

Dahua HAC-HDBW1231RA-Z-A 為DH-HAC-HDBW1231RA-Z-A，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 HAC-HDBW1231RA-Z-A 香港價格連安裝報價。

Camera：Gain Control Auto/Manual
Pixel：2MP Noise Reduction 3D NR
影像感測器：1/2.8"CMOS Smart Illumination Yes
最大解像度：1920 (H) × 1080 (V) Mirror Yes
Scanning System：Progressive Privacy Masking Off/On (8 areas, rectangle) PAL:

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

HAC-HDBW1231RA-Z-A Dahua DH-HAC-HDBW1231RA-Z-A 產品圖片

詳細規格

Camera	Gain Control Auto/Manual
Pixel	2MP Noise Reduction 3D NR
影像感測器	1/2.8"CMOS Smart Illumination Yes
最大解像度	1920 (H) × 1080 (V) Mirror Yes
Scanning System	Progressive Privacy Masking Off/On (8 areas, rectangle) PAL: 1/25 s–1/100,000 s Electronic Shutter Speed NTSC: 1/30 s–1/100,000 s Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN
最低照度	0.002lux/F1.5, 30IRE, 0Lux IR on 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-
S/N Ratio	> 65 dB Certifications 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Illumination Distance	60 m (196.9 ft) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Illuminator On/Off Control	Auto Port
Illuminator Number	3 (IR light) Video output choices of CVI/TVI/AHD/CVBS by one Video Output BNC port Pan: 0°–355°
Pan/Tilt/Rotation Range	Tilt: 0°–80° Audio Input One channel built-in mic Rotation: 0°–355° Power
供電	12 VDC±30%
鏡頭類型	Motorized vari-focal
功耗	Max. 8 W (12 VDC, IR on)
Auto Focus	Yes
鏡頭接口	φ14 –30 °C to +60 °C (–22 °F to +140 °F); < 95% (non- Operating Temperature
焦距	2.7 mm–12 mm condensation) –30 °C to +60 °C (–22 °F to +140 °F); < 95% (non-
Max. Aperture	F1.5 Storage Temperature condensation) Diagonal: 38°– 123°
防護等級	IP67; IK10
Field of View	Horizontal: 33°–102° Vertical: 19°–53° Structure
Iris Control	Fixed
Casing	Metal throughout the whole casing
Close Focus Distance	0.5 m (1.6ft )
Camera Dimensions	φ126 mm × 100 mm (φ5" × 3.9")
鏡頭	Detect Observe Recognize Identify
淨重	0.63 kg (1.4 lb)
DORI 偵測距離	47.6 m 19.0 m 9.5 m 4.76 m 2.7 mm
Distance	(156.2 ft) (62.3 ft) (31.2 ft) (15.6 ft) Gross Weight 0.81 kg (1.8 lb) 132.1 m 52.9 m 26.4 m 13.2 m 12 mm (433.4 ft) (173.6 ft) (86.6 ft) (43.3 ft) CVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps; Video Frame Rate TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H 1080P (1920 × 1080); Resolution 960H (960 × 576/960 × 480)
Day/Night	Auto (ICR)
BLC	BLC/WDR/HLC
WDR	130 dB www.dahuasecurity.com Ordering Information
類型	Part Number Description
DH-HAC-	2MP Starlight HDCVI IR Dome Camera,
HDBW1231RAP-Z-A	PAL 2.7-12mm 2M Camera
HDBW1231RAN-Z-A	NTSC 2.7-12mm
PFA197R	Junction Box
PFB206W	Wall Mount Bracket
PFA109	Mount Adapter Ceiling Mount Bracket of Mini Dome &
PFB220C	Eyeball Camera Accessories (Optional)
PFA156	Pole Mount Bracket
PFM800-E	1 Channel Passive HDCVI Balun
PFM321D	12V 1A Power Adapter

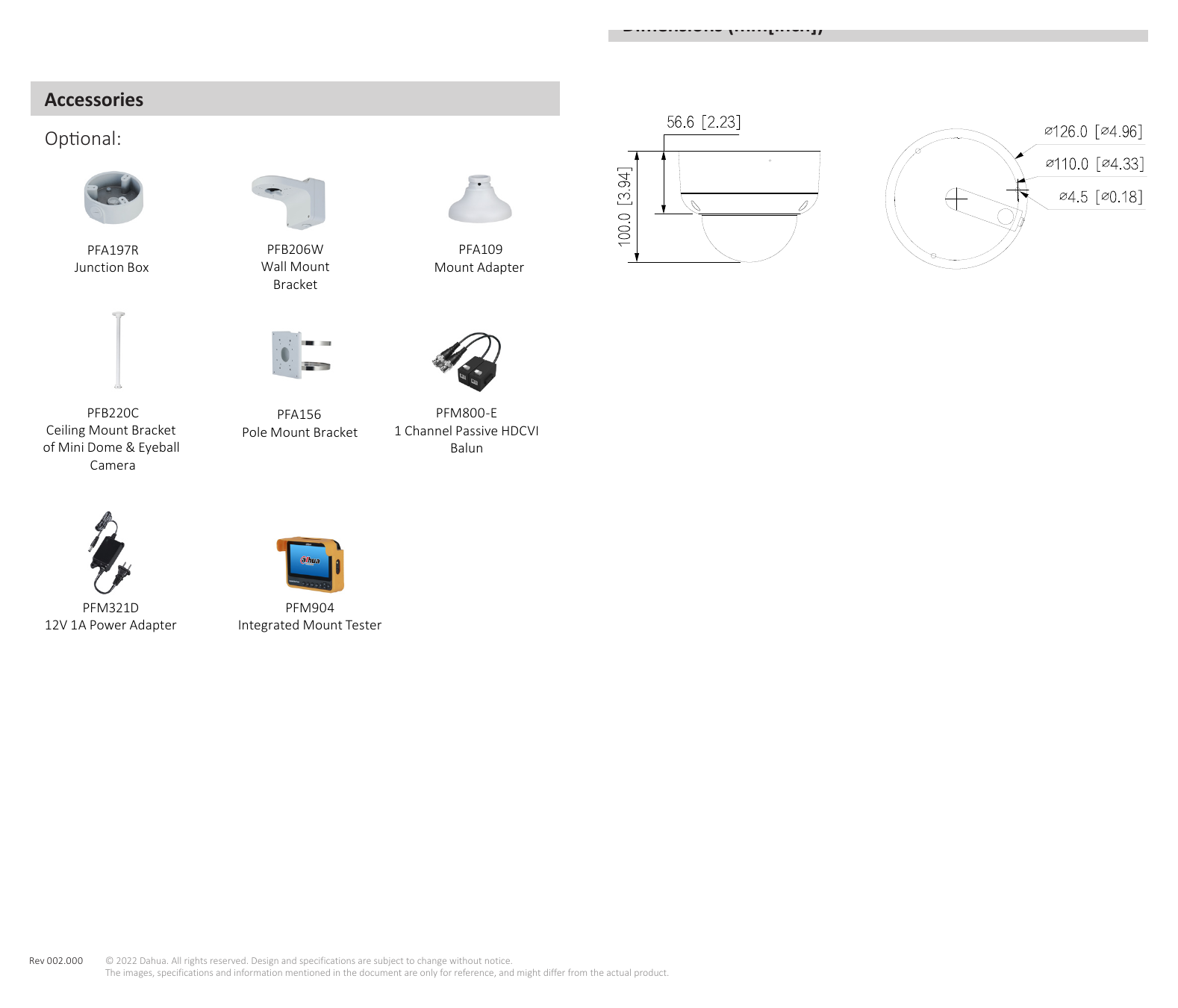

PFM904	Integrated Mount Tester Dimensions (mm[inch]) Accessories Optional:
Junction Box	Wall Mount Mount Adapter Bracket
Ceiling Mount Bracket	Pole Mount Bracket 1 Channel Passive HDCVI
of Mini Dome & Eyeball	Balun
Rev 002.000	© 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com
