| Function | Window Dimensions Φ59.4 mm (Φ2.34") Heating mode: ON: <+5 ºC (+41 °F)/OFF: ≥+5 ºC 255 mm × 90 mm × 70.5 mm (10.04" × 3.54" × (+41 °F) 2.78") (L × W × H) |
|---|
| Auto Temperature Control | Internal Usable Space Cooling mode: ON: ≥+20 ºC (+68 °F)/OFF: <+20 ºC 215 mm × 90 mm × 83 mm (8.46" × 3.54" × 3.27") (+68 °F) (L × W × H) |
|---|
| IR Light | 0 m–100 m (0 ft–328.08 ft) Net Weight 3.1 kg (6.83 lb) |
|---|
| Sprinkling Control | Yes Gross Weight 3.6 kg (7.94 lb) Wall mount, ceiling mount, plane mount, pole |
|---|
| 防護等級 | Installation mount |
|---|
| Vanda-proof | IK10 Screw Thread Type G1/2 |
|---|
| Common mode: ±4 kV | 447.0 mm × 240.0 mm × 234.0 mm (17.60" × 9.45" |
|---|
| Surge Protection Grade | Packaging Dimensions |
|---|
| Different mode: ± 2 kV | × 9.21") (L × W × H) |
|---|
| 供電 | Environment |
|---|
| 功耗 | 14 W (without camera) Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Power Supply for Camera | PoE/12 VDC Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Port | Storage Humidity 10%–90% (RH) |
|---|
| RS-485 | 1, used to control the IR light Certifications CE: EN 62368-1, EN 60950-22, EN 62560, EN55032, |
|---|
| Alarm Input Port | 1, used to control the wiper |
|---|
| Certifications | EN55035, EN61000-3-2, EN61000-3-3, EN50130-4 FCC: FCC part15B |
|---|
| Alarm Output Port | 2, used to control IR feedback and washer modules |
|---|
| DIP Switch | Yes www.dahuasecurity.com |
|---|
| 安裝 | Package Information · 14" Corrosion-proof Housing × 1 · Installation Guide × 1 |
|---|

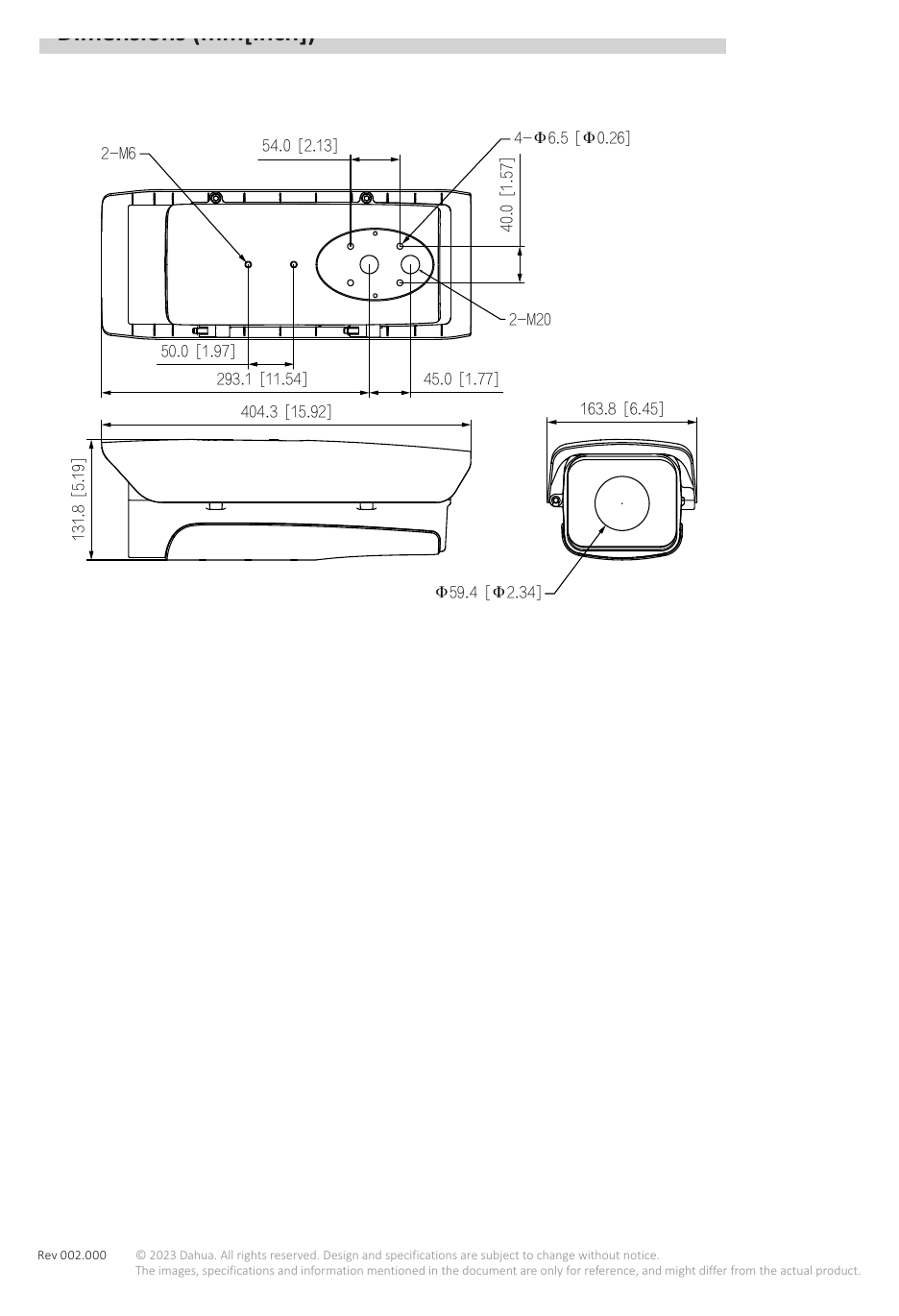

| Wall Mount | Ceiling Mount · QR code labels × 1 · Legal and Regulatory Information × 1 · Waterproof Plug × 1 · Water Joint × 2 · 1/4/20×6UNC screw × 2 · S5.0 wrench × 1 · Connecting line × 1 · Network patch cord × 1 · 12 VDC Terminal Block × 1 Dimensions (mm[inch]) mm [inch] 4-Φ6.5 [Φ0.26] 2-M6 54.0 [2.13] 40.0 [1.57] 2-M20 50.0 [1.97] 293.1 [11.54] 45.0 [1.77] 404.3 [15.92] 163.8 [6.45] 131.8 [5.19] Φ59.4 [Φ2 |
|---|
