| Camera | Electronic Defog Yes |
|---|
| 影像感測器 | 1/2.7 inch CMOS Mirror Off/On |
|---|
| Effective Pixels | 1920 (H) × 1080 (V), 2MP Privacy Masking Off/On (8 area, rectangle) |
|---|
| Scanning System | Progressive Certifications |
|---|
| PAL: 1/25s–1/100000s | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000- Electronic Shutter Speed |
|---|
| NTSC: 1/30s–1/100000s | 3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, |
|---|
| Certifications | EN50130-4:2011+A1:2014) |
|---|
| S/N Ratio | >65dB FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Minimum Illumination | 0.02Lux/F1.9, 30IRE, 0Lux IR on Port |
|---|
| Fill Light Working Distance | 30 m (98.4 ft) |
|---|
| 音訊輸出 | One channel built-in mic (-A) |
|---|
| IR On/Off Control | Auto; manual Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| IR LED Number | 1 BNC port |
|---|
| Pan: 0°–360° | Power |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Power Supply 12V ±30% DC |
|---|
| 鏡頭 | Power Consumption Max 3.3W (12V DC, IR on) |
|---|
| 鏡頭類型 | Fixed-focal Environment |
|---|
| Mount Type | M12 -40°C to +60°C (-40°F to 140°F); <95% (non- Operating Temperature condensation) |
|---|
| 焦距 | 2.8 mm; 3.6 mm -40°C to +60°C (-40°F to 140°F); <95% (non- Storage Temperature condensation) |
|---|
| Max. Aperture | F1.9 |
|---|
| Protection Grade | IP67 2.8 mm: 119° x 101° x 54° Field of View (diagonal x horizontal x vertical) Structure 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) Casing Metal upper dome+plastic lower dome+plastic cover |
|---|
| 光圈類型 | Fixed iris Camera Dimensions φ97.0 mm × 85.8 mm ( φ3.82" × 3.38" ) 2.8 mm: 0.5 m (1.7 ft) Net Weight 0.22 Kg (0.49 lb) Close Focus Distance 3.6 mm: 0.8 m (2.6 ft) |
|---|
| 毛重 | 0.28 Kg (0.62 lb) |
|---|
| DORI 偵測距離 | 38.6 m 15.4 m 7.7 m 3.9 m 2.8 mm |
|---|
| Distance | (126.6 ft) (50.5 ft) (25.3 ft) (12.8 ft) 49.7 m 19.9 m 9.9 m 5m 3.6 mm (163.1 ft) (65.3 ft) (32.5 ft) (16.4 ft) CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; Frame Rate TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H 1080P (1920×1080); 720P (1280×720); 960H (960× Resolution 576/960×480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/HLC/DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D NR www.dahuasecurity.com |
|---|
| Ordering Information | Ceiling Mount Wall Mount 1 Wall Mount 2 |
|---|

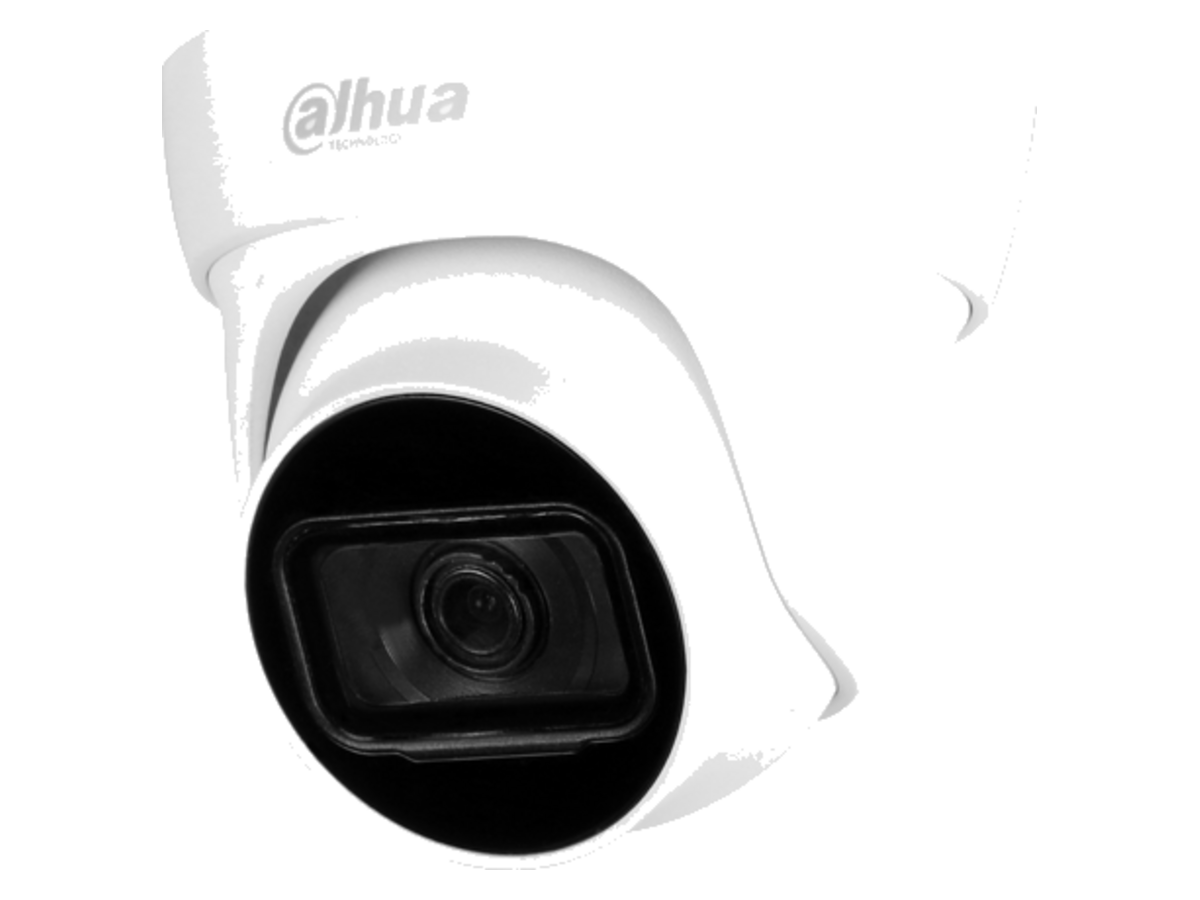

| 類型 | Part Number Description DH-HAC- HDW1200TLP-A 2.8mm DH-HAC- HDW1200TLN-A 2.8mm 2MP Camera 2MP HDCVI IR Eyeball Camera |
|---|
| DH-HAC- | Pole Mount Hanging Mount HDW1200TLP-A 3.6mm DH-HAC- HDW1200TLN-A 3.6mm |
|---|
| PFA13G | Junction Box Wall Mount Bracket (For use alone or with |
|---|
| PFB205W | PFA152-E) |
|---|
| PFA152-E | Pole Mount Bracket (For use with PFB205W) |
|---|

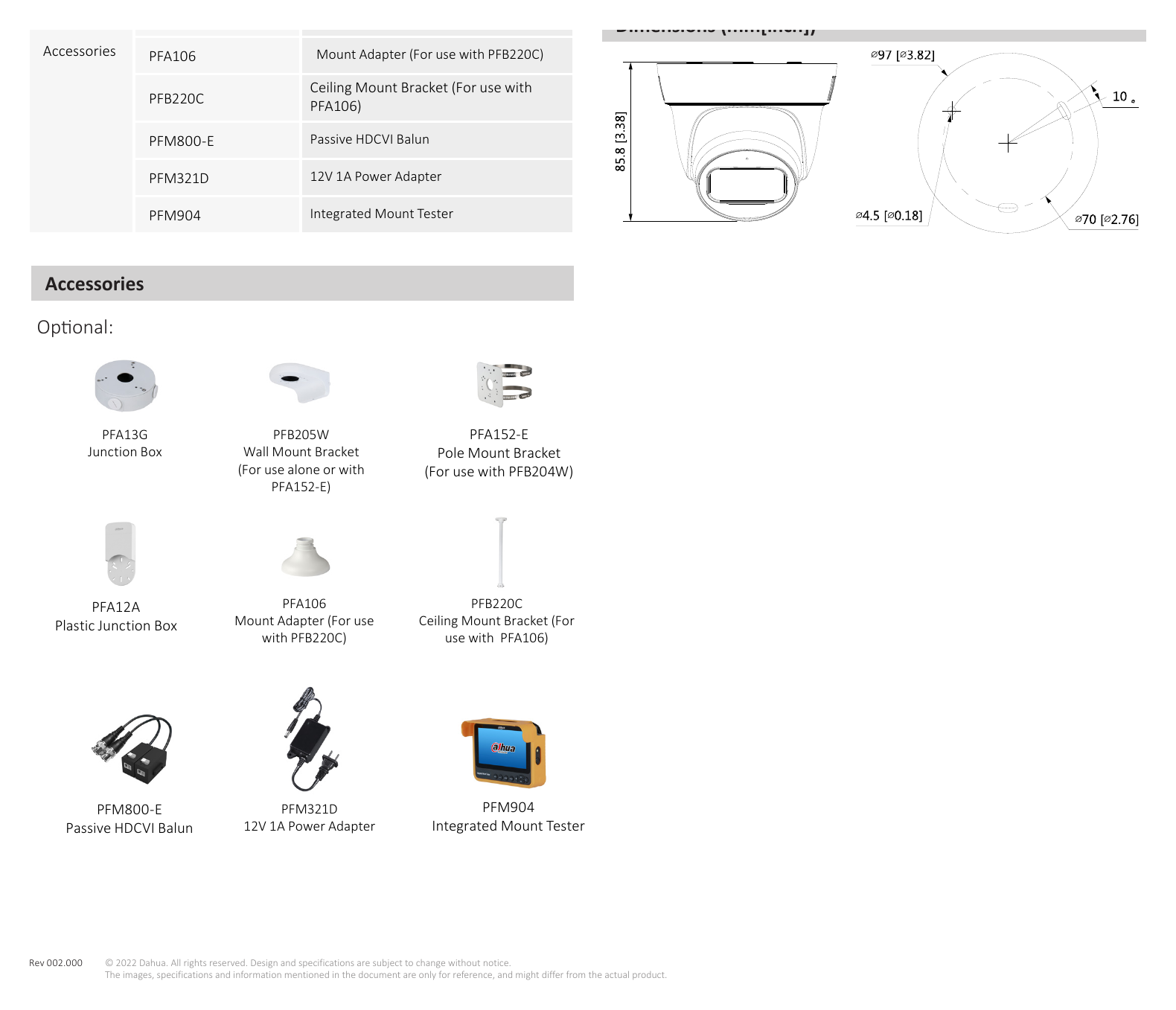

| PFA12A | Plastic Junction Box Dimensions (mm[inch]) |
|---|
| Accessories | PFA106 Mount Adapter (For use with PFB220C) Ceiling Mount Bracket (For use with |
|---|
| PFB220C | PFA106) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| PFM904 | Integrated Mount Tester Accessories Optional: |
|---|
| Junction Box | Wall Mount Bracket Pole Mount Bracket (For use alone or with (For use with PFB204W) PFA152-E) |
|---|
| Plastic Junction Box | Mount Adapter (For use Ceiling Mount Bracket (For |
|---|
| with PFB220C) | use with PFA106) |
|---|
| Passive HDCVI Balun | 12V 1A Power Adapter Integrated Mount Tester |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
