| Camera | Certifications |
|---|
| 影像感測器 | 2MP CMOS CE (EN55032, EN55024, EN50130-4, EN62368-1) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Pixel | 2MP Port Video output choices of CVI/TVI/AHD/CVBS by one |
|---|
| Scanning System | Progressive Video Output BNC port |
|---|
| PAL: 1/25 s–1/100000 s | Audio Input One channel built-in mic Electronic Shutter Speed NTSC: 1/30 s–1/100000 s |
|---|
| S/N Ratio | ＞ 65 dB Power |
|---|
| 供電 | 12V ±30% DC |
|---|
| 最低照度 | 0.02Lux/F2.0, 30IRE, 0Lux IR on |
|---|
| 功耗 | Max 2.9W (12V DC, IR on); POC (AF) |
|---|
| Illumination Distance | 30 m (98.4 ft) |
|---|
| Illuminator On/Off Control | Auto; manual Environment –40°C to +60°C (–40°F to 140°F); < 95% (non- |
|---|
| Illuminator Number | 1 (IR light) Operating Temperature condensation) |
|---|
| Pan: 0°–360° | –40°C to +60°C (–40°F to 140°F); < 95% (non- |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° Storage Temperature condensation) Rotation: 0°–360° |
|---|
| Protection Grade | IP67 Structure |
|---|
| 鏡頭類型 | Fixed lens |
|---|
| Casing | Metal throughout the whole casing |
|---|
| Mount Type | M12 |
|---|
| Camera Dimensions | φ94.0 mm × 85.7 mm (φ3.70" × 3.37") |
|---|
| 焦距 | 2.8mm; 3.6mm; |
|---|
| 淨重 | 0.33 kg (0.73 lb) |
|---|
| Max. Aperture | F2.0 |
|---|
| 毛重 | 0.47 kg (1.04 lb) 2.8mm:H:102° V:54° D:120° Field of View 3.6mm:H:85° V:45° D:100° |
|---|
| 光圈類型 | Fixed 2.8 mm: 0.5 m (1.6 ft) Close Focus Distance 3.6 mm: 0.9 m (3.0 ft) |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI 偵測距離 | 38.6 m 15.4 m 7.7 m 3.9 m 2.8 mm |
|---|
| Distance | (126.6 ft) (50.5 ft) (25.3 ft) (12.8 ft) 55.2 m 22.1 m 11.0 m 5.5 m 3.6 mm (181.1 ft) (72.5 ft) (36.1 ft) (18.0 ft) CVI: 1080P@25/30fps; 720P@25/30fps AHD: 1080P@25/30fps; 720P@25/30fps Frame Rate TVI: 1080P@25/30fps; 720P@25/30fps CVBS: 960H; 1080P (1920×1080); |
|---|
| 解像度 | 720P (1280×720); 960H (960×576/960×480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/HLC/DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; Area WB |
|---|
| Gain Control | Auto/Manual |
|---|
| Noise Reduction | 2D NR |
|---|
| Smart IR | Yes |
|---|
| Mirror | Off/On www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC- | 2MP HDCVI POC IR Eyeball Camera, PAL HDW1200TLMP-A-POC 2MP Camera DH-HAC- |
|---|
| HDW1200TLMN-A- | 2MP HDCVI POC IR Eyeball Camera, NTSC POC |
|---|
| PFA13A-E | Junction box |
|---|
| PFB205W | Wall Mount Bracket |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFA106 | Adapter plate Accessories |
|---|
| PFB220C | Ceiling Mount Bracket |
|---|
| PFM800-4K | Passive HDCVI Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|

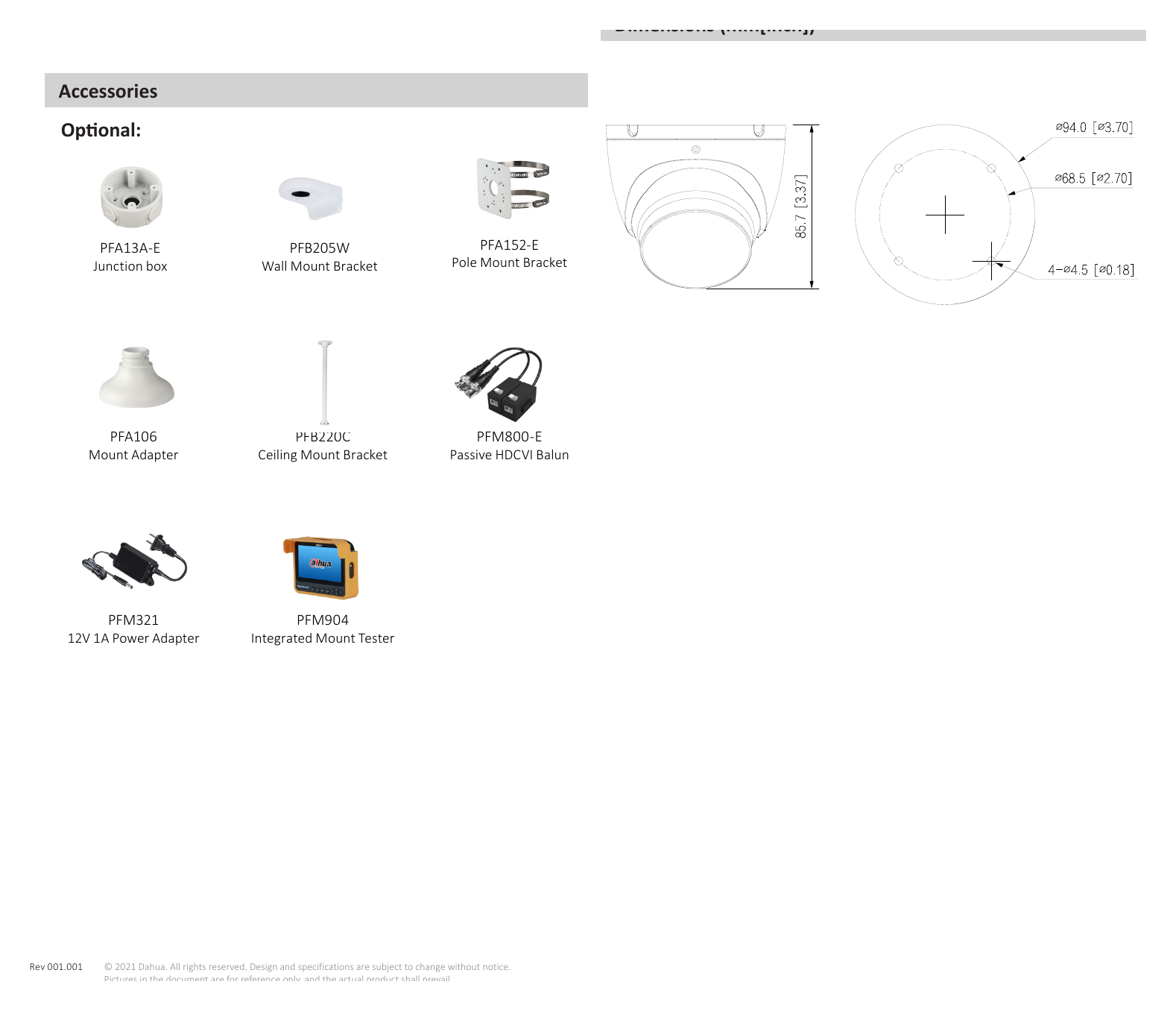

| PFM904 | Integrated Mount Tester Dimensions (mm[inch]) Accessories Optional: |
|---|
| Junction box | Wall Mount Bracket Pole Mount Bracket |
|---|
| Mount Adapter | Ceiling Mount Bracket Passive HDCVI Balun |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
