| 影像感測器 | White Balance Auto; Area white balance |
|---|
| 最大解像度 | 1920(H) × 1080(V) Noise Reduction 3D NR |
|---|
| Pixel | 2MP Smart Light Yes |
|---|
| Scanning System | Progressive Mirror Off/On |
|---|
| PAL: 1/3 s–1/100,000 s | Privacy Masking Off/On (8 area, rectangle) Electronic Shutter Speed NTSC: 1/4 s–1/100,000 s Certifications |
|---|
| S/N Ratio | > 65 dB CE (EN55032, EN55024, EN50130-4, EN62368-1) |
|---|
| 最低照度 | 0.0002 Lux/F1.0, 0 Lux White Light on Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Illumination Distance | 40 m (131.2 ft) Port |
|---|
| Illuminator On/Off Control | Auto; manual Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| Illuminator Number | 2 BNC port (DIP Switch) |
|---|
| Pan: 0°–360° | Audio Input One channel built-in mic |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Power |
|---|
| 鏡頭 | Power Supply 12V ±30% DC |
|---|
| 鏡頭類型 | Fixed lens Power Consumption Max 5.8W (12V DC, warm light on) |
|---|
| Mount Type | M12 Environment |
|---|
| 焦距 | 2.8 mm; 3.6 mm –40°C to +60°C (–40°F to 140°F) ; < 95% (non- Operating Temperature condensation) |
|---|
| Max. Aperture | F1.0 –40°C to +60°C (–40°F to 140°F) ; < 95% (non- Storage Temperature condensation) 2.8 mm: H: 106°; V: 55°; D: 125° Field of View 3.6 mm: H: 84°; V: 44°; D: 99° Protection Grade IP67 |
|---|
| 光圈類型 | Fixed iris Structure 2.8 mm: 1 m (3.3 ft) |
|---|
| Close Focus Distance | Casing Metal throughout the whole casing 3.6 mm: 1.7 m (5.6 ft) |
|---|
| 毛重 | 0.63 kg (1.39 lb) 55.2 m 22.1 m 11.0 m 5.5 m |
|---|
| DORI 偵測距離 | 3.6 mm (181.1 ft) (72.5 ft) (36.1 ft) (18.0 ft) Distance *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning man |
|---|
| 解像度 | 1080P (1920×1080); (960H×960× 576/960×480) |
|---|
| BLC | BLC/HLC/WDR/HLC-Pro www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Part Number Description |
|---|

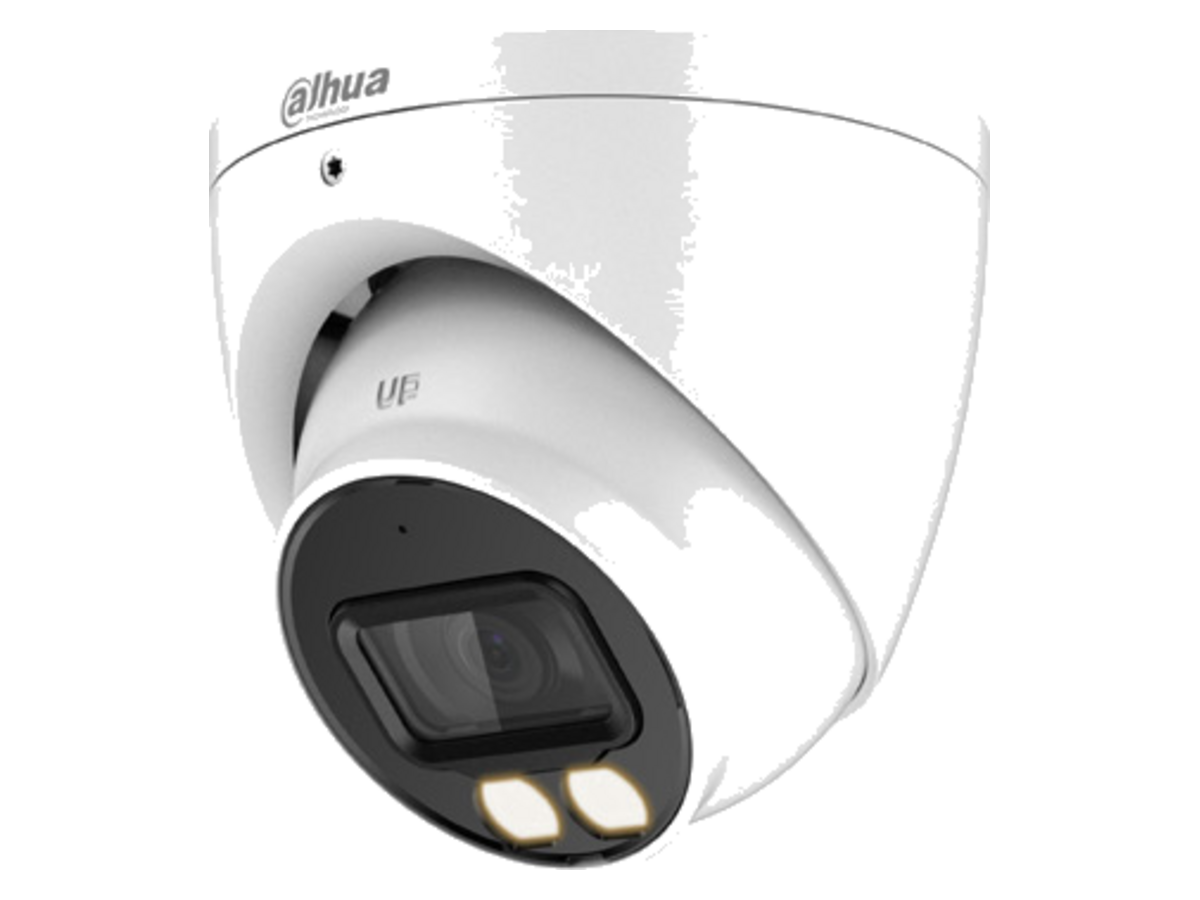

| DH-HAC-HDW2249TP- | 2MP Full-color HDCVI Eyeball Camera, PAL A-LED 2MP Camera |
|---|
| DH-HAC-HDW2249TN- | 2MP Full-color HDCVI Eyeball Camera, NTSC A-LED |
|---|
| PFA130-E | Junction box |
|---|
| PFB204W+PFA152-E | Pole Mount Bracket |
|---|
| PFB204W | Wall Mount |
|---|
| Accessories | PFA106+PFB220C Ceiling Mount |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM904 | Integrated Mount Tester |
|---|
| Pole Mount Bracket | Wall Mount Junction Box PFA106+PFB220C |
|---|
| Pole Mount Bracket + | PFM800-E PFM321 |
|---|
| Water-proof Junction Box | Passive HDCVI Balun 12V 1A Power Adapter PFM904 Integrated Mount Tester |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
