| Camera | Illumination Mode Smart IR |
|---|
| 影像感測器 | 4K CMOS Defog Electronic defog |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Digital Zoom 4× |
|---|
| Scanning System | Progressive Mirror Yes Electronic Shutter Speed |
|---|
| PAL: 1/3 s–1/100000 s | Privacy Masking Off/On (8 areas, rectangle) NTSC: 1/4 s–1/100000 s 0.001 lux@F1.5 (Color, 30 IRE) Certification |
|---|
| 最低照度 | 0.0001 lux@F1.5 (B/W, 30 IRE) CE-LVD: EN 62368-1; 0 lux (Illuminator on) CE-EMC: EN 55032; EN 55035; Certifications |
|---|
| S/N Ratio | >65 dB FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
|---|
| Illumination Distance | 60 m (196.85 ft) Port |
|---|
| Illuminator On/Off Control | Auto Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port (DIP Switch) |
|---|
| Illuminator Number | 2 (IR light) |
|---|
| 音訊輸入 | One channel built-in MIC Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Power |
|---|
| 鏡頭 | Power Supply 12 VDC ± 10%; 24 VAC ± 25% |
|---|
| 鏡頭類型 | Motorized Vari-focal Power Consumption Max 10.0 W (12 VDC, IR on) |
|---|
| Auto Focus | Yes Environment |
|---|
| 鏡頭接口 | φ14 Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 焦距 | 2.7 mm–13.5 mm Operating Humidity <95% (RH), non-condensing |
|---|
| Max. Aperture | F1.5 Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| Field of View | H: 113°–47°; V: 60°–26°; D: 133°–53° Storage Humidity <95% (RH), non-condensing |
|---|
| Iris Control | Fixed Protection IP67 |
|---|
| Close Focus Distance | 1.2 m (3.94 ft) Structure |
|---|
| DORI 偵測距離 | (622.05 ft) (248.69 ft) (124.34 ft) (62.34 ft) |
|---|
| Distance | Gross Weight 0.73 kg (1.60 lb) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in Installation Wall mount; ceiling mount; vertical pole mount this table do not reflect intelligent function distances. For intelligent function distances, refer to |
|---|
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps CVBS: PAL: 960H; NTSC: 960H 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); Resolution 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| WDR | 120 dB |
|---|
| White Balance | Auto;Area white balance |
|---|
| Gain Control | Auto/Manual www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDW2802T- | 4K Starlight HDCVI Motorized Vari-focal |
|---|
| MQP-Z-A-DP | IR Quick-to-install Eyeball Camera, PAL 4K Camera |
|---|
| MQN-Z-A-DP | IR Quick-to-install Eyeball Camera, NTSC |
|---|
| PFA13F | Junction Box |
|---|
| PFB211W | Wall Mount Bracket |
|---|

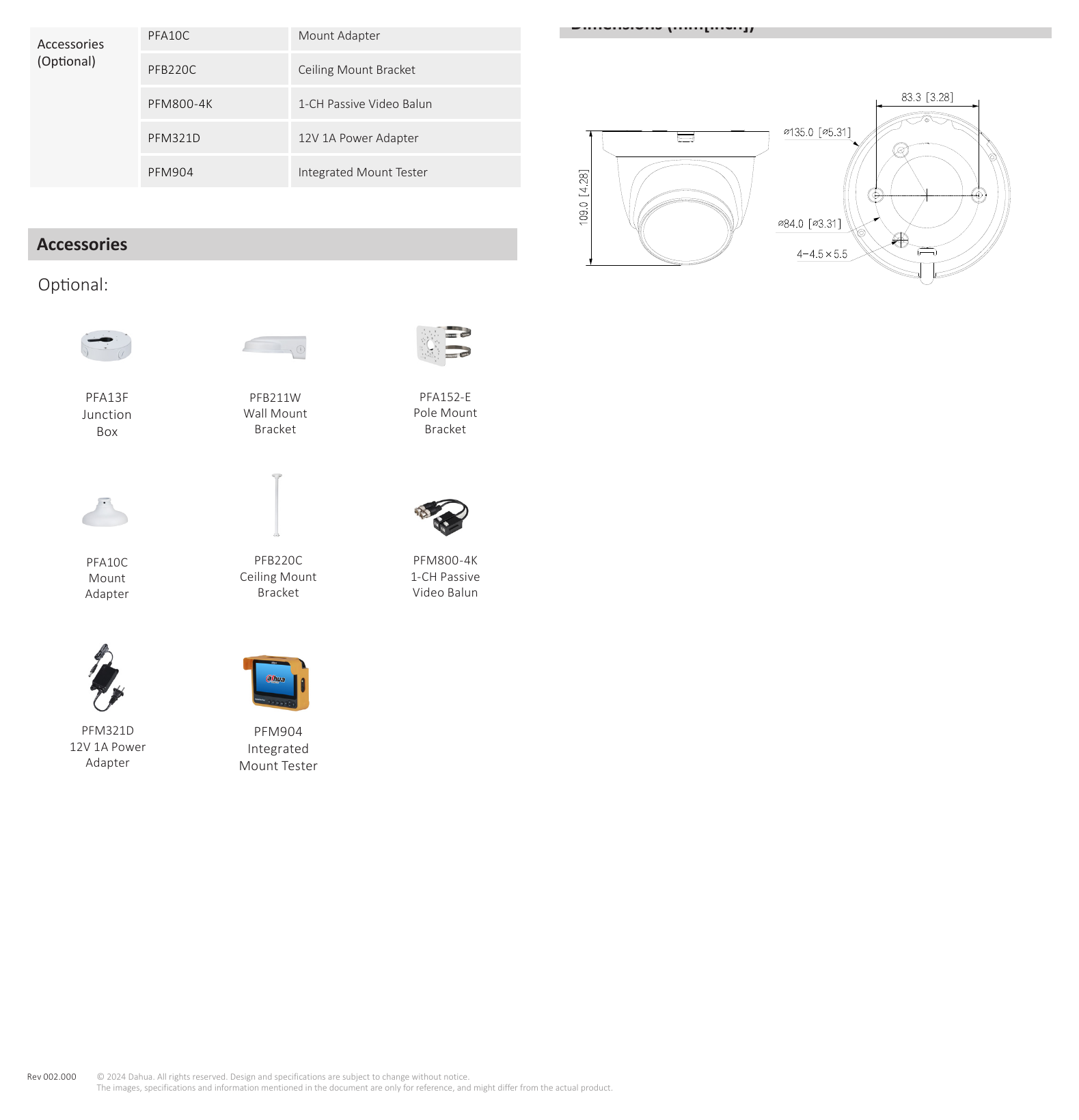

| PFA152-E | Pole Mount Bracket Dimensions (mm[inch]) |
|---|
| PFA10C | Mount Adapter Accessories (Optional) |
|---|
| PFB220C | Ceiling Mount Bracket |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| PFM904 | Integrated Mount Tester Accessories Optional: |
|---|
| Junction | Wall Mount Pole Mount |
|---|
| Box | Bracket Bracket |
|---|
| Mount | Ceiling Mount 1-CH Passive |
|---|
| Adapter | Bracket Video Balun |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
