| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 4K CMOS Noise Reduction 3D NR |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Illumination Mode Smart IR&WL; WL Mode; IR Mode |
|---|
| Scanning System | Progressive Defog Electronic defog |
|---|
| PAL: 1/3 s–1/100000 s | Digital Zoom 4× Electronic Shutter Speed NTSC: 1/4 s–1/100000 s |
|---|
| Mirror | Yes 0.001 lux@F1.0 (Color, 30 IRE) |
|---|
| 最低照度 | 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) Privacy Masking Off/On (8 areas, rectangle) |
|---|
| S/N Ratio | >65 dB Active Deterrence |
|---|
| IR: 40 m (131.23 ft) | Audio 1: alarm |
|---|
| Illumination Distance | Audio2: No parking here Warm Light: 40 m (131.23 ft) Audio3: Private land no entry. |
|---|
| Illuminator On/Off Control | Auto/Manual |
|---|
| Sound Warning | Audio4: Warning zone keep off |
|---|
| Illuminator Number | 2 (Warm light); 2 (IR light) Audio5: Welcome Volume: high/medium/low; |
|---|
| Pan: 0°–360° | duration: 5 s–60 s; 110 dB |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Red/Blue Light Warning Flash: 5 s–60 s; frequency: high/medium/low |
|---|
| 鏡頭 | Certification |
|---|
| 鏡頭類型 | Fixed-focal CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, |
|---|
| Auto Focus | No EN55035:2017, EN50130-4:2011+A1:2014, EN62368- Certifications 1:2014+A11:2017) |
|---|
| 鏡頭接口 | M12 FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
|---|
| 焦距 | 2.8 mm; 3.6 mm Port |
|---|
| Max. Aperture | F1.0 Video output choices of CVI/TVI/AHD/CVBS by one Video Output 2.8 mm: H: 106°; V: 55°; D: 125° BNC port Field of View 3.6 mm: H: 85°; V: 45°; D: 100° |
|---|
| 音訊輸入 | One channel built-in mic |
|---|
| Iris Control | Fixed |
|---|
| 警報輸出 | 1 channel 2.8 mm: 2.0 m (6.56 ft) Close Focus Distance 3.6 mm: 2.8 m (9.19 ft) Power |
|---|
| DORI 偵測距離 | 91.0 m 36.4 m 18.2 m 9.1 m 2.8 mm |
|---|
| Distance | (298.56 ft) (119.42 ft) (59.71 ft) (29.86 ft) Power Consumption Max 10.45 W (12 VDC, IR on) 107.6 m 43.0 m 21.5 m 10.8 m 3.6 mm Environment (353.02 ft) (141.08 ft) (70.54 ft) (35.47 ft) |
|---|
| Video | Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| CVI: | Operating Humidity <95% (RH), non-condensing PAL: 4k@15 fps; 5M@25 fps; 4M@25 fps; |
|---|
| NTSC: 4k@15 fps; 5M@25 fps; 4M@30 fps; | Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) AHD: |
|---|
| PAL: 4K@15 fps; | Storage Humidity <95% (RH), non-condensing NTSC: 4K@15 fps; Video Frame Rate TVI: |
|---|
| 防護等級 | IP67 PAL: 4K@15 fps; NTSC: 4K@15 fps; |
|---|
| CVBS: | Anti-corrosion Level Low PAL: 960H; |
|---|
| NTSC: 960H | Structure 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); Casing Material Dome (metal + plastic) + plastic enclosure Resolution 960H (960 × 576/960 × 480) |
|---|
| Product Dimensions | Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97") |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| 淨重 | 0.35 kg (0.77lb) |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| 毛重 | 0.53 kg (1.17 lb) |
|---|
| WDR | 120 dB |
|---|
| 安裝 | Wall mount; ceiling mount; vertical pole mount www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-HAC-ME1809TQP- | 4K Smart Dual Illuminators TiOC HDCVI |
|---|
| A-PV | Eyeball Camera 4K Camera |
|---|
| DH-HAC-ME1809TQN- | 4K Smart Dual Illuminators TiOC HDCVI |
|---|
| PFA13G | Junction Box |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFB205W-E | Wall Mount Bracket |
|---|
| PFA109 | Mount Adapter Accessories (Optional) Ceiling Mount Bracket PFB220C |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| PFM321D | 12VDC Power Adapter |
|---|

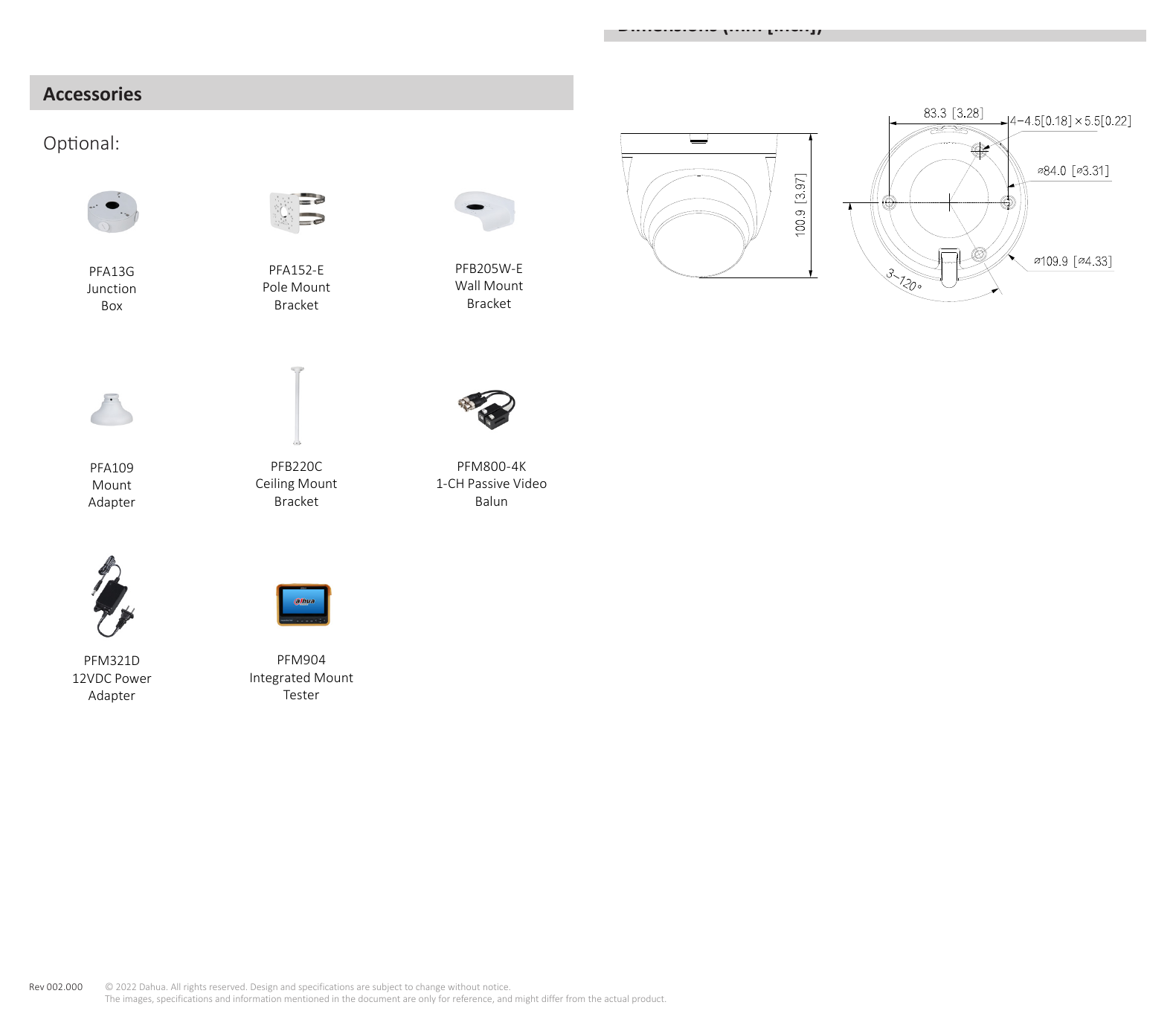

| PFM904 | Integrated Mount Tester Dimensions (mm [inch]) Accessories Optional: |
|---|
| Junction | Pole Mount Wall Mount |
|---|
| Box | Bracket Bracket |
|---|
| Mount | Ceiling Mount 1-CH Passive Video |
|---|
| Adapter | Bracket Balun |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
