| System | HDCVI Camera Input 4/8/16 Channel |
|---|
| Main Processor | Embedded Processor IP Camera Input 4+2/8+4/16+8 Channel, each channel up to 8MP |
|---|
| 操作系統 | Embedded LINUX Audio In/Out 1/1 |
|---|
| Display | Two-way Talk Reuse audio in/out, RCA |
|---|
| 接口 | 1 HDMI(up to 3840x2160),1 VGA Recording 3840x2160, 2560×1440, 1920×1080, 1280×1024, Compression H.264+/H.264 Resolution 1280×720, 1024×768 |
|---|
| 解像度 | 4K, 4MP,1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF 4CH: 1/4/6 |
|---|
| Multi-screen Display | 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 Main stream: 1st channel 4K(1~12/15fps)/ 4MP(1~15fps), others 4MP(1~15fps); Camera title, Time, Video loss, Camera lock, Motion Record Rate 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF |
|---|
| OSD | (1~25/30fps) detection, Recording Sub steram:D1/CIF/QCIF(1~25/30fps) Video Detection and Alarm |
|---|
| Bit Rate | 1Kbps ~ 8192Kbps Per Channel Recording, PTZ, Tour, Video Push, Email, FTP, Trigger Events |
|---|
| Snapshot, Buzzer and Screen Tips | Manual, Schedule (Regular, Continuous), MD |
|---|
| Record Mode | (Video detection: Motion Detection, Video Loss, Motion Detection, MD Zones: 396 (22 × 18), Video |
|---|
| Video Detection | Tampering), Alarm, Stop Loss,Tampering and Diagnosis 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, |
|---|
| 警報輸入 | N/A Record Interval Post-record: 10 ~ 300 sec |
|---|
| Relay Output | N/A Network |
|---|
| Playback and Backup | Interface 1 RJ-45 Port (1000M) 4CH: 1/4 HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm |
|---|
| Playback | 8CH: 1/4/9 Network Function 16CH: 1/4/9/16 Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.) Time /Date, Alarm, MD and Exact Search (accurate Max. User Access 128 users Search Mode to second) Play, Pause, Stop, Rewind, Fast play, Slow Play, Next Smart Phone iPhone, iPad, Android File, Previous File, Next Camera, Previous Camera, |
|---|
| Playback Function | Interoperability ONVIF 2.42, CGI Conformant Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Electrical |
|---|
| Backup Mode | USB Device/Network |
|---|
| 供電 | 4/8CH:DC12V/4A, 16CH: DC12V/5A Storage |
|---|
| 功耗 | <15W (Without HDD) |
|---|
| Internal HDD | 2 SATA Ports, up to 8TB capacity for each disk Environmental |
|---|
| eSATA | N/A |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
|---|
| USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) Construction |
|---|
| RS232 | N/A |
|---|
| 尺寸 | 1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1") |
|---|
| RS485 | 1 Port, for PTZ Control |
|---|
| 淨重 | 2.35kg (5.2 lb) (without HDD) Third-party Support |
|---|
| 毛重 | 3.2kg (7.05 lb) Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Installation Desktop installation Third-party Support Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more Certifications FCC: Part 15 Subpart B ICES 003 Issue 6 CE: EN 55032: 2012+AC:2013 (Class B) |
|---|
| Certifications | EN 55024 : 2010 EN 61000-3-2 : 2014 EN 50130-4: 2011 EN 61000-3-3 : 2013 UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07 www.dahuasecurity.com |
|---|
| Ordering Information | Rear Panel |
|---|
| 類型 | Part Number Description DHI-HCVR7204AN-4M |
|---|
| DHI-HCVR7204AN- | 4 Channel 4MP 1U Digital Video 4M Recorder 4/8/16 |
|---|
| Channel | DHI-HCVR7208AN- 8 Channel 4MP 1U Digital Video |
|---|
| HCVR | 4M Recorder |
|---|

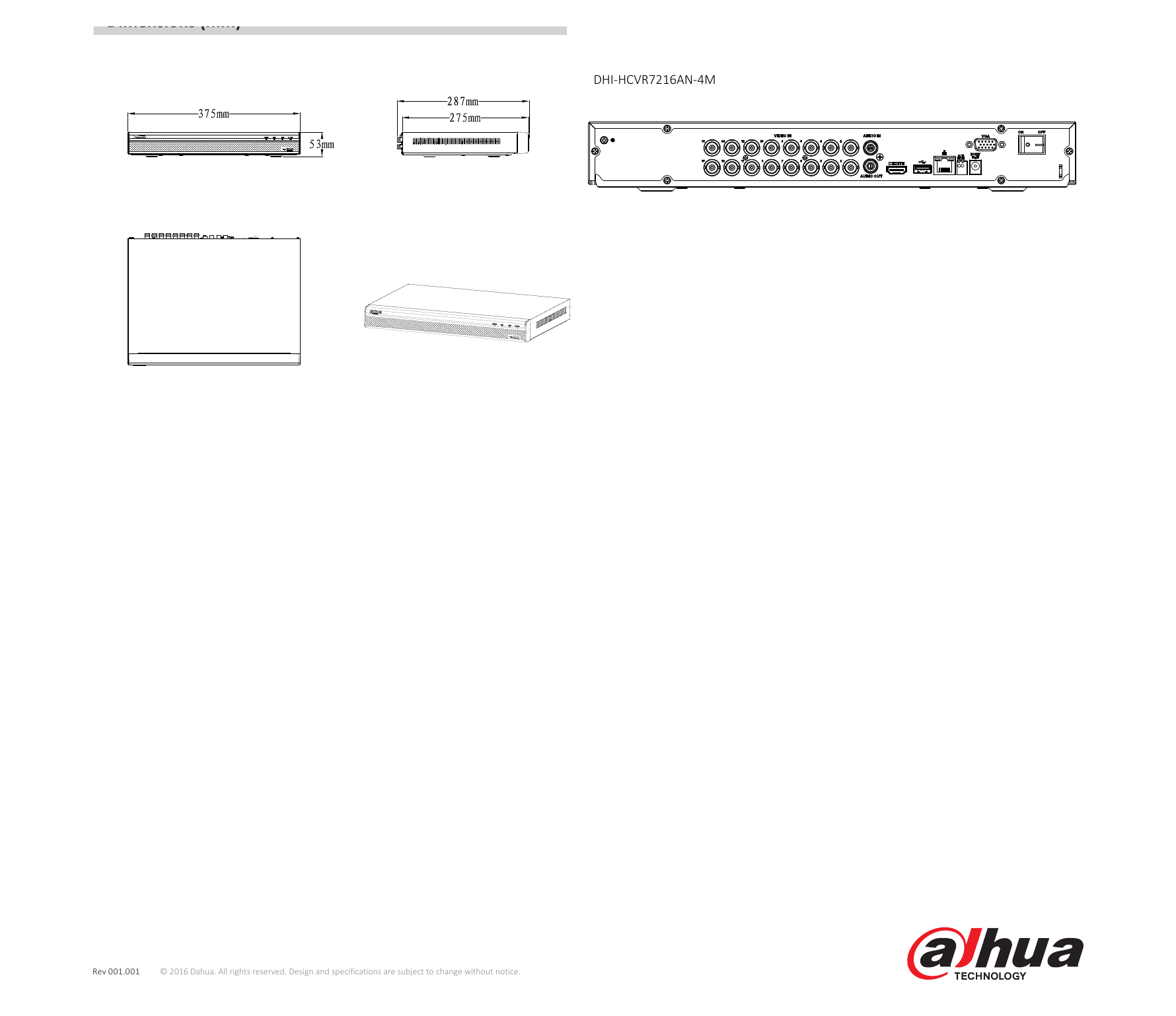

| DHI-HCVR7216AN- | 16 Channel 4MP 1U Digital Video DHI-HCVR7208AN-4M 4M Recorder Dimensions (mm) DHI-HCVR7216AN-4M |
|---|
| Rev 001.001 | © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
