| Camera | Motion detection, video tampering, scene changing, network |
|---|
| Event Trigger | disconnection, IP address conflict, illegal access, and storage |
|---|
| 影像感測器 | 1/1.8" CMOS anomaly |
|---|
| Pixel | 8 MP IVS Object Abandoned/Missing |
|---|
| 最大解像度 | 3840 (H) x 2160 (V) Intelligence Support human body, human face, motor vehicle and non- |
|---|
| ROM | 8 GB Video Metadata motor vehicle image capture and attributes extraction. |
|---|
| RAM | 2 GB Tripwire; intrusion; climbing fences; loitering detection; IVS (Perimeter abandoned/missing object; fast moving; parking detection; |
|---|
| Electronic Shutter | Protection) people gathering; vehicle/human alarm classification 1/1 s–1/30,000 s |
|---|
| Face Recognition | Yes |
|---|
| Scanning System | Progressive |
|---|
| Color: 0.005 lux@F1.4 | Auto Tracking Yes |
|---|
| 最低照度 | B/W: 0.0005 lux@F1.4 0 lux@F1.4 (illuminator on) Video |
|---|
| Illumination Distance | 500 m (1640.42 ft) Smart H.265+; H.265; Smart H.264+; H.264; MJPEG (Sub Video Compression Stream 1) Zoom Prio; Manual; Smart IR |
|---|
| Control | Streaming Capability 3 streams |
|---|
| Illuminator Number | 10 IR lights 4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); |
|---|
| 解像度 | 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); |
|---|
| Wiper | Smart wiper CIF (352 × 288) Main stream: 4K/4M/1080p/1.3M/720p (1–25/30 fps) |
|---|
| 鏡頭 | Video Frame Rate Sub stream 1: D1/CIF (1–25/30 fps) |
|---|
| 焦距 | 5.6 mm–223 mm Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
|---|
| 碼率控制 | CBR; VBR |
|---|
| Max. Aperture | F1.4–F4.5 H264: 512 kbps–16384 kbps |
|---|
| Field of View | H: 63.9°–2.0°; V: 37.3°–1.1 °; D: 71.2°–2.3 ° Video Bit Rate H265: 256 kbps–10240 kbps |
|---|
| Optical Zoom | 40x Day/Night Auto (ICR); Color; B/W |
|---|
| Focus Control | Auto; semi-auto; manual BLC Yes |
|---|
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) WDR 120 dB |
|---|
| Iris Control | Auto; manual HLC Yes |
|---|
| Detect | Observe Recognize Identify Auto; indoor; outdoor; tracking; manual; sodium lamp; natural White Balance light; street lamp 4,400 m 1,740 m 880 m 440 m (14,435.70 ft) (5,708.66 ft) (2,887.14 ft) (1,443.57 ft) Gain Control Auto; manual |
|---|
| PTZ | Noise Reduction 2D NR; 3D NR |
|---|
| Pan: 0° to 360° | Motion Detection Yes Tilt: –30° to +90°, auto flip 180° Region of Interest |
|---|
| Manual Control | Pan: 0.1°/s–240°/s Yes (RoI) |
|---|
| Speed | Tilt: 0.1°/s–100°/s |
|---|
| 除霧 | Optical |
|---|
| Preset Speed | Pan: 240°/s; Tilt: 120°/s |
|---|
| Digital Zoom | 16x |
|---|
| Preset | 300 |
|---|
| Image Rotation | 0°; 180° |
|---|
| Tour | 8 (up to 32 presets per tour) |
|---|
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
|---|
| Pattern | 5 |
|---|
| S/N Ratio | ≥55 dB |
|---|
| Scan | 5 |
|---|
| Speed Adjustment | Yes Audio G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; |
|---|
| 斷電記憶 | Yes Audio Compression G723 |
|---|
| Idle Motion | Preset; Tour; Pattern; Scanning Network |
|---|
| DH-SD | Network Port RJ-45 (10/100 Base-T) Pelco-P/D (auto recognition) www.dahuasecurity.com IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; Ordering Information |
|---|
| IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP | Type Model Description |
|---|
| Interoperability | ONVIF (Profile S&G&T); CGI 8 MP 40x Starlight WizMind Network DH-SD8A840-HNF-PA PTZ Camera, PAL |
|---|
| Streaming Method | Unicast; Multicast 8 MP 40x Starlight WizMind Network 8M DH-SD8A840N-HNF-PA |
|---|
| 用戶管理 | 20 (total bandwidth: 64 M) PTZ Camera, NTSC WizMind |
|---|
| Storage | FTP; Micro SD card (512GB) PTZ Camera 8 MP 40x Starlight WizMind Network SD8A840-HNF-PA PTZ Camera, PAL IE 7 and later versions |
|---|
| Chrome 42 and earlier versions | 8 MP 40x Starlight WizMind Network |
|---|
| Browser | SD8A840N-HNF-PA |
|---|
| Firefox 52 and earlier versions | PTZ Camera, NTSC Safari |
|---|
| DC36V/2.23A | Power Adapter Smart PSS; DSS; DMSS; Easy4ip; IVSS |
|---|
| Software | PFB306W Wall Mount Bracket |
|---|
| Mobile Client | iOS; Android |
|---|
| PFA118 | Mount Adapter |
|---|
| Certification | PFB710C Ceiling Mount Bracket CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | Accessories PFA150 Pole Mount Bracket FCC: Part15 subpartB, ANSI C63.4-2014 |
|---|
| Port | PFB301S-E Plane Mount Bracket |
|---|
| Analog Output | 1 BNC PFA120 Junction Box |
|---|
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) PFB301C Ceiling Mount Bracket |
|---|
| Alarm I/O | 7/2 PFA151 Corner Mount Bracket |
|---|
| Audio I/O | 1/1 Accessories 36 VDC, 2.23 A (±25%) Included: Hi-PoE Basic: 30 W Max.: 48 W (illuminator + PTZ working) |
|---|
| Operating | DC36V/2.23A PFB306W –40 °C to +70 °C (–40 °F to +158 °F) |
|---|
| Temperature | Power Adapter Wall Mount Bracket |
|---|
| 工作濕度 | ≤95% (RH) Optional: IP67; TVS 6000 V lightning protection; surge protection; voltage transient protection |
|---|
| Casing | Metal |
|---|
| Product Dimensions | 415.6 mm × Φ26 2 mm (16.36" × Φ10.31") PFA118 PFB710C PFA150 |
|---|
| Mount Adapter | Ceiling Mount Pole Mount |
|---|
| 淨重 | 10 kg (22.05 lb) Bracket Bracket |
|---|
| 毛重 | 12 kg (26.46 lb) |
|---|
| PFB301S-E | PFA120 PFB301C |
|---|

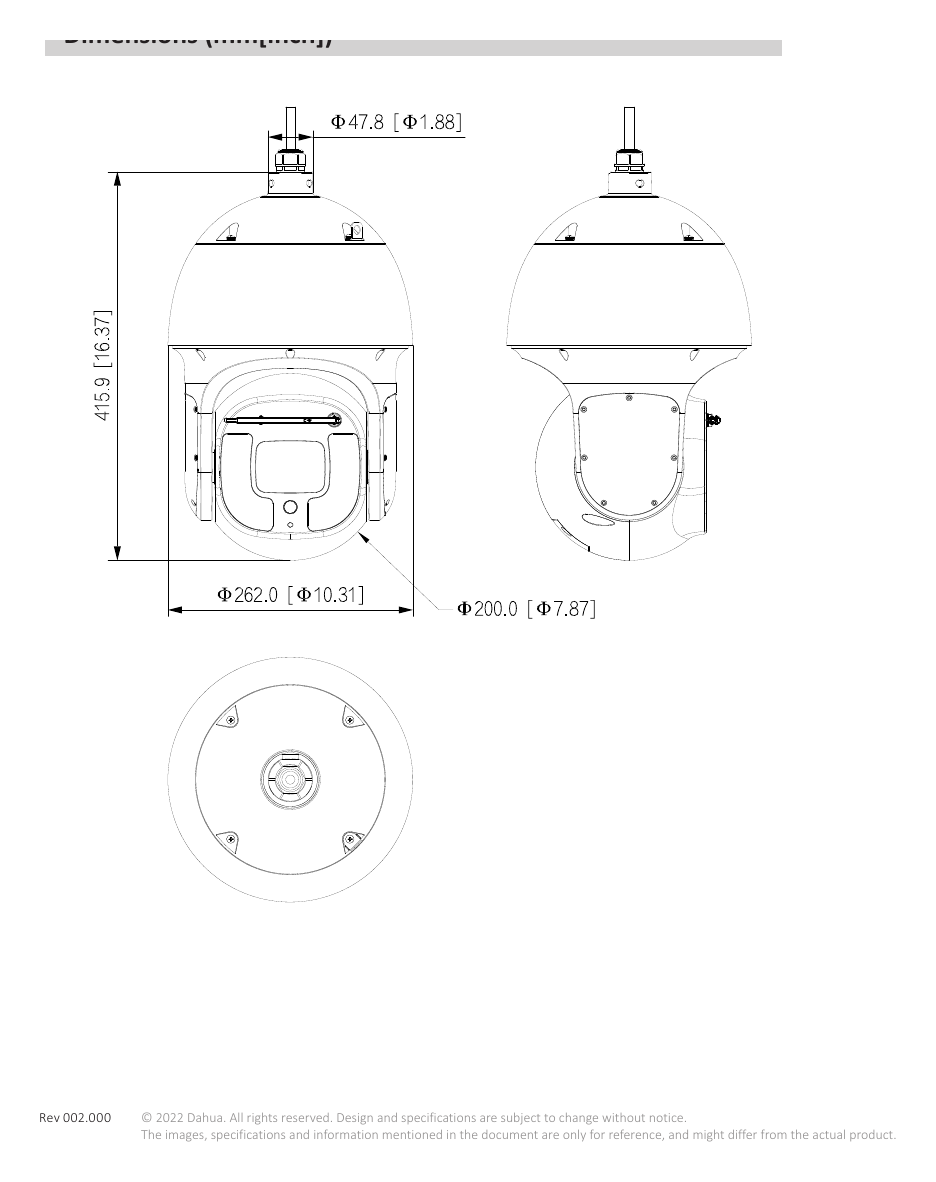

| Plane Mount Bracket | Junction Box Ceiling Mount Bracket PFA151 Corner Mount Bracket www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
