| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.7" CMOS WDR 120dB |
|---|
| Effective Pixels | 1928(H)×1088(V), 2.1MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D / 3D |
|---|
| PAL: 1.3s~1/30000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1s~1/30000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.03Lux/F1.4, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 60m (197feet) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 2 Interface |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply AC 24V±25%/DC 12V±25% |
|---|
| 焦距 | 2.7-12mm Power Consumption Max 12W (12V DC, IR on) |
|---|
| Max Aperture | F1.4 Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Angle of View | H: 99°~37° Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Auto / Manual Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 300mm Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 11.81'' Resistance |
|---|
| DORI Distance | Construction |
|---|
| Casing | Aluminium Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Dimensions Φ122mm×104.9mm (Φ4.8"×4.13") sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.58kg (1.28lb) |
|---|
| DORI 偵測距離 | Distance Gross Weight 0.73kg (1.61lb) |
|---|
| Definition | Wide Tele 25px/m |
|---|
| Detect | 47m(154ft) 129m(422ft) (8px/ft) 63px/m |
|---|
| Observe | 19m(61ft) 51m(169ft) (19px/ft) 125px/m |
|---|
| Recognize | 9m(31ft) 26m(84ft) (38px/ft) 250ppm |
|---|
| Identify | 5m(15ft) 13m(42ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 67° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & Video Output 1-channel BNC CVBS video output |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFB203W + PFA152-E |
|---|

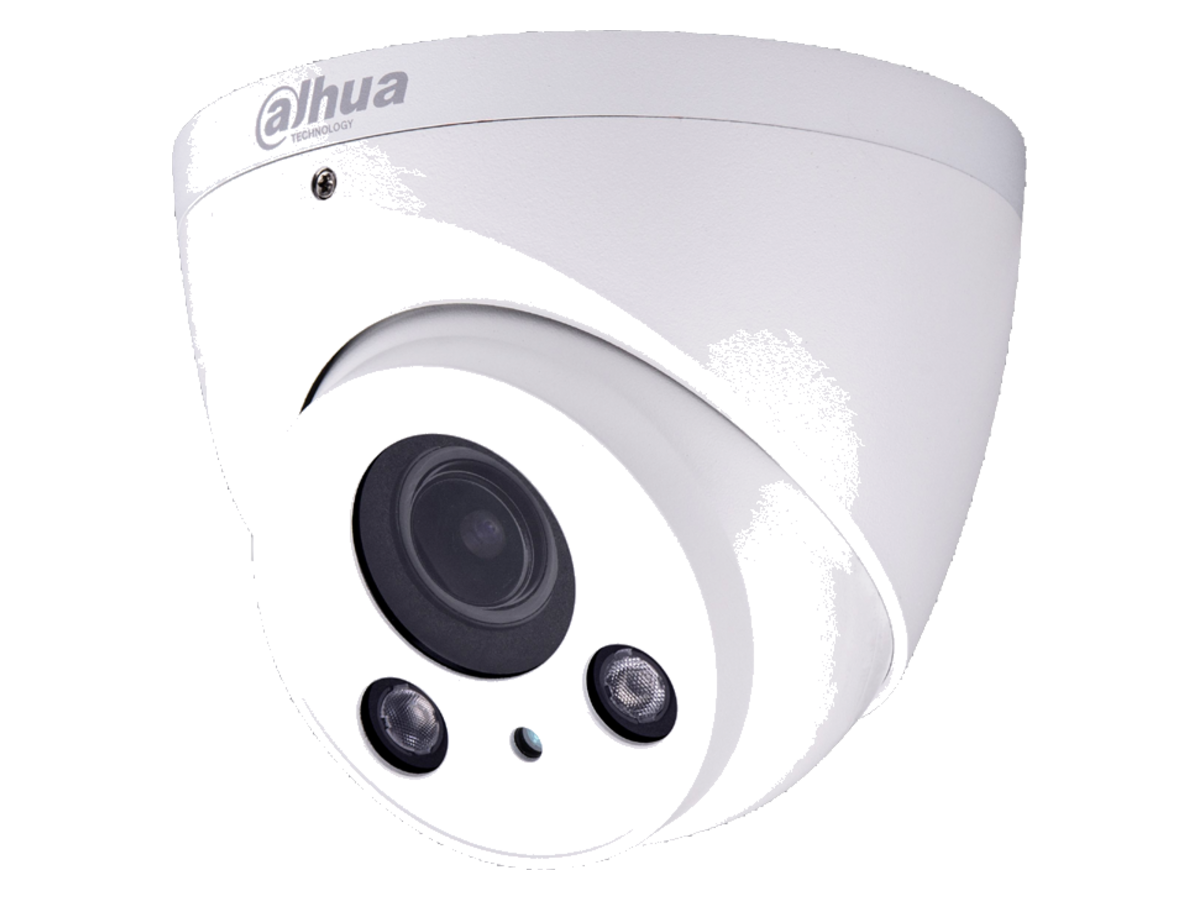

| 類型 | Part Number Description 2MP WDR HDCVI IR Eyeball DH-HAC-HDW2221RP-Z-DP Camera, PAL 2MP Camera 2MP WDR HDCVI IR Eyeball DH-HAC-HDW2221RN-Z-DP Camera, NTSC |
|---|
| PFA152-E | PFB203W PFB203W wall mount) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| Accessories | PFM800-4MP Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power 16 channel Passive HDCVI Balun PFM809-4MP Receiver |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|

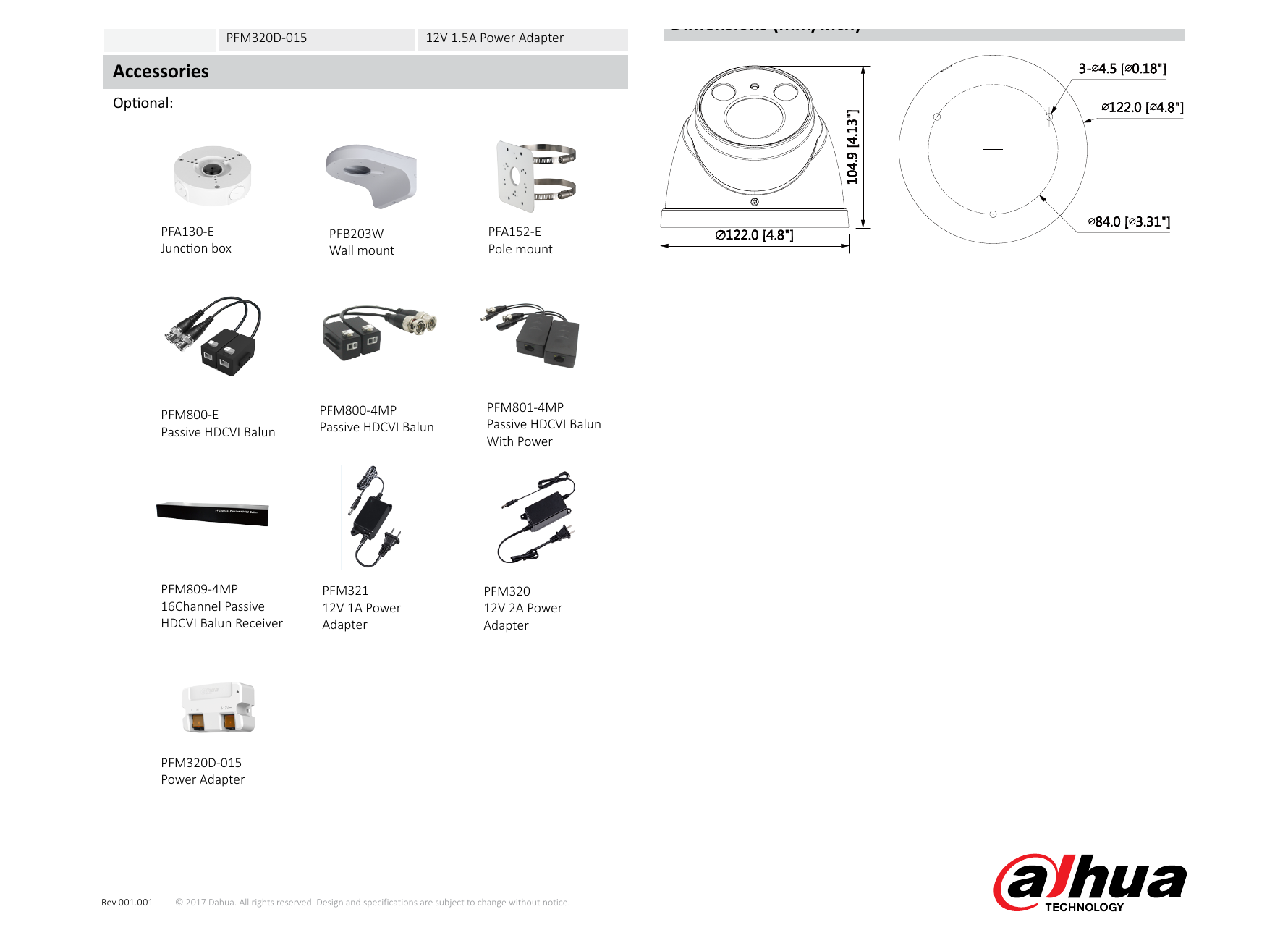

| PFM320 | 12V 2A Power Adapter Dimensions (mm/inch) |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Wall mount Pole mount |
|---|
| PFM800-4MP | PFM801-4MP PFM800-E |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun With Power |
|---|
| PFM809-4MP | PFM321 PFM320 16Channel Passive 12V 1A Power 12V 2A Power |
|---|
| HDCVI Balun Receiver | Adapter Adapter PFM320D-015 Power Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
