| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream) |
|---|
| RAM/ROM | 1024M/128M Streaming Capability 3 Streams 1080P(1920×1080)/720P(1280×720)/ |
|---|
| Scanning System | Progressive Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Main stream: 1080P/720P(1 ~ 25/30fps) Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) Minimum Illumination 0Lux@F1.6 (IR on) Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | Distance up to 100m (328ft) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR LEDs | 6 |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR(120dB) |
|---|
| 焦距 | 4.8mm~120mm |
|---|
| Max. Aperture | F1.6 ~ F4.4 White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Angle of View | H: 62.8° ~ 2.6° Gain Control Auto / Manual |
|---|
| Optical Zoom | 25x Noise Reduction Ultra DNR (2D/3D) |
|---|
| Focus Control | Auto/Manual Motion Detection Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Region of Interest Support Electronic Image Stabilization |
|---|
| DORI Distance | N/A (EIS) *Note: The DORI distance is a “general proximity” of distance which makes it easy to |
|---|
| 除霧 | Support pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Digital Zoom 16x |
|---|
| Detect | Observe Recognize Identify Flip 180° 1613m(5292ft) 646m(2119ft) 323m(1060ft) 161m(528ft) Privacy Masking Up to 24 areas |
|---|
| PTZ | Audio |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° Compression G.711a/G.711Mu/G.726/AAC |
|---|
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s Network |
|---|
| Preset Speed | Pan: 240° /s; Tilt: 200° /s Ethernet RJ-45 (10XBase-T/100Base-TX) |
|---|
| 預置位 | 300 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP/SUPPLIER (DAHUA) (IP), UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Filter,QoS,Bonjour,802.1x |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Interoperability ONVIF Profile S&G, API Auto restore to previous PTZ and lens status after Streaming Method Unicast / Multicast Power up Action power failure |
|---|
| Max. User Access | 20 users Activate Preset/ Scan/ Tour/ Pattern if there is no |
|---|
| Idle Motion | NAS (Network Attached Storage),Local PC for |
|---|
| command in the specified period | Edge Storage instant recording, Micro SD card 256GB |
|---|
| Protocol | DH-SD Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, DMSS Motion detection, Video tampering, Network Smart Phone IOS, Android |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | Certifications |
|---|
| Auto Tracking | N/A CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Included: |
|---|
| RS485 | N/A |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 2/1 PFB305W Wall Mount Electrical Optional： |
|---|
| 供電 | DC 12V/3A, PoE+(802.3at) |
|---|
| 功耗 | 13W, 22W (IR on, Heater on) Environmental |
|---|
| PFA111 | DC12V/3A PFA140 |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| Mount Adapter | Power Adapter Power Box |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| PFB300C | PFA120 PFA150 |
|---|
| Casing | Metal |
|---|
| Ceiling Mount | Junction Box Pole Mount |
|---|
| 尺寸 | Φ160(mm) x 295(mm) |
|---|
| 淨重 | 3kg(6.61lb) |
|---|
| 毛重 | 4.2kg(9.26lb) |
|---|
| PFA151 | PFB303S |
|---|
| Ordering Information | Corner Mount Parapet Mount |
|---|
| 類型 | Part Number Description |
|---|
| PFB305W | Wall Mount Power Box Mount Pole Mount |
|---|
| PFB305W + PFA140 | PFB305W + PFA150 |
|---|
| DC12V/3A | Power Adapter |
|---|
| PFA140 | Power Box |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| PFA120 | Water-proof Junction Box |
|---|
| PFA150 | Pole Mount |
|---|
| Corner Mount | Parapet Mount |
|---|
| PFB305W + PFA151 | PFA111+ PFB303S |
|---|

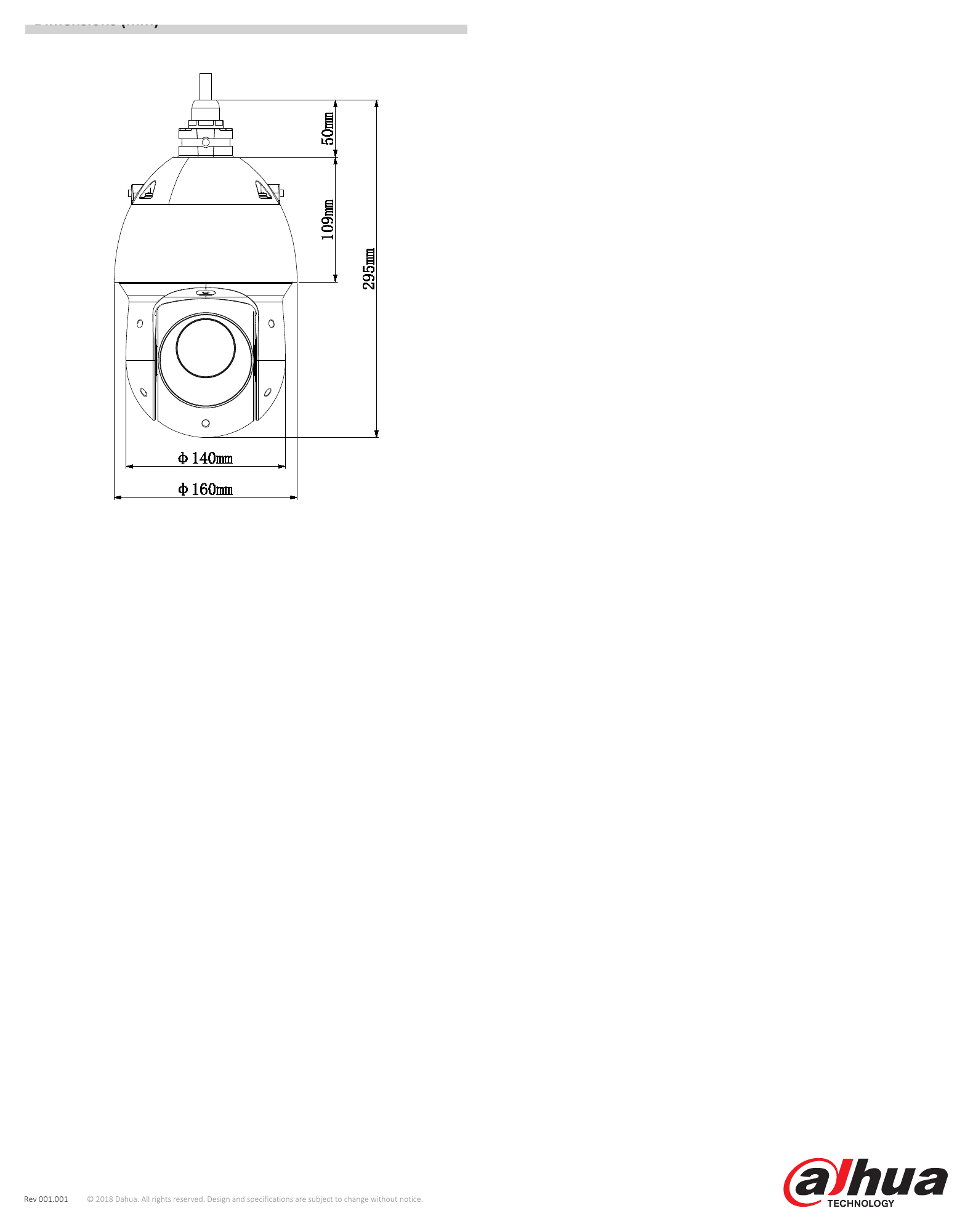

| PFB303S | Parapet Mount www.dahuasecurity.com Dimensions (mm) |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
