DAHUA DH-HAC-HDW2231R-Z CCTV攝影機安裝・保養

Name: DAHUA DH-HAC-HDW2231R-Z DH-HAC-HDW2231R-Z
Brand: Dahua
SKU: DH-HAC-HDW2231R-Z

產品簡介

Dahua DH-HAC-HDW2231R-Z 為DH-HAC-HDW2231R-Z，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-HAC-HDW2231R-Z 香港價格連安裝報價。

Camera：OSD Menu Multi-language
影像感測器：1/2.8" CMOS BLC Mode BLC / HLC / WDR
Effective Pixels：1937(H)×1097(V), 2.1MP
WDR：120dB
Scanning System：Progressive

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

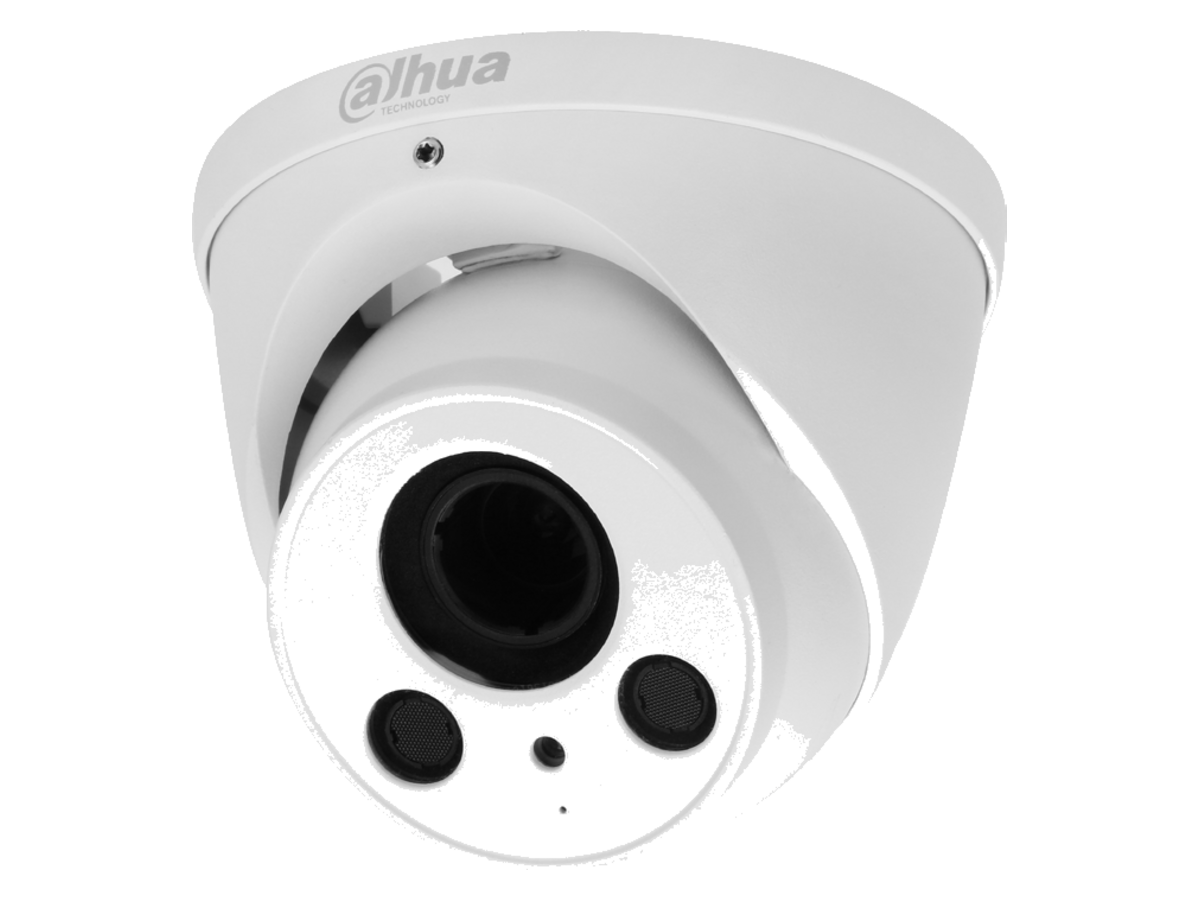

DH-HAC-HDW2231R-Z Dahua DH-HAC-HDW2231R-Z 產品圖片

詳細規格

Camera	OSD Menu Multi-language
影像感測器	1/2.8" CMOS BLC Mode BLC / HLC / WDR
Effective Pixels	1937(H)×1097(V), 2.1MP
WDR	120dB
Scanning System	Progressive
Gain Control	AGC PAL: 1/4s~1/100000s
Electronic Shutter Speed	Noise Reduction 2D / 3D NTSC: 1/3s~1/100000s
Minimum Illumination	0.005Lux/F1.3, 30IRE, 0Lux IR on White Balance Auto / Manual
S/N Ratio	More than 65dB Smart IR Auto / Manual
IR Distance	Up to 60m (197feet) Certifications
IR On/Off Control	Auto / Manual CE (EN55032, EN55024, EN50130-4)
Certifications	FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
IR LEDs	2 UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
鏡頭	Interface
鏡頭類型	Motorized lens / Fixed iris
Audio Interface	N/A
Mount Type	Board-in Eelectrical
焦距	2.7-13.5mm
供電	12V DC ±25%
Max Aperture	F1.3
功耗	Max 7.2W (12V DC, IR on)
Angle of View	H: 102°~29° Environmental
Focus Control	Auto / Manual -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 200mm Close Focus Distance 7.87'' Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
DORI Distance	Ingress Protection & Vandal IP67 Resistance *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Construction sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Casing Aluminium
Distance	Dimensions Φ122mm×104.9mm (Φ4.8"×4.13")
Wide	Tele Net Weight 0.59kg (1.30lb)
Detect	25px/m (8px/ft) 47m(154ft) 153m(502ft) Gross Weight 0.74kg (1.63lb)
Observe	63px/m (19px/ft) 19m(62ft) 61m(200ft)
Recognize	125px/m (38px/ft) 9m(30ft) 31m(102ft)
Identify	250px/m (76px/ft) 5m(16ft) 15m(49ft) Pan / Tilt / Rotation Pan: 0° ~ 360°
Pan/Tilt/Rotation	Tilt: 0° ~ 78° Rotation: 0° ~ 360°
解像度	1080P (1920×1080)
Frame Rate	25/30fps@1080P, 25/30fps@720P 1-channel BNC high definition video output / CVBS video Video Output output (Can switch) www.dahuasecurity.com
Ordering Information	Juncon Mount Pole Mount
PFA130-E	PFB203W + PFA152-E
類型	Part Number Description 2MP Starlight HDCVI IR Eyeball DH-HAC-HDW2231RP-Z Camera, PAL 2MP Camera 2MP Starlight HDCVI IR Eyeball DH-HAC-HDW2231RN-Z Camera, NTSC
Pole mount (For use with PFA135	Wall Mount PFA152-E
junction box)	PFB203W
PFM820	UTC Controller
PFM800-E	Passive HDCVI Balun Accessories
PFM800-4MP	Passive HDCVI Balun
PFM801-4MP	Passive HDCVI Balun with Power 16 Channel Passive HDCVI Balun PFM809-4MP Receiver
PFM321	12V 1A Power Adapter

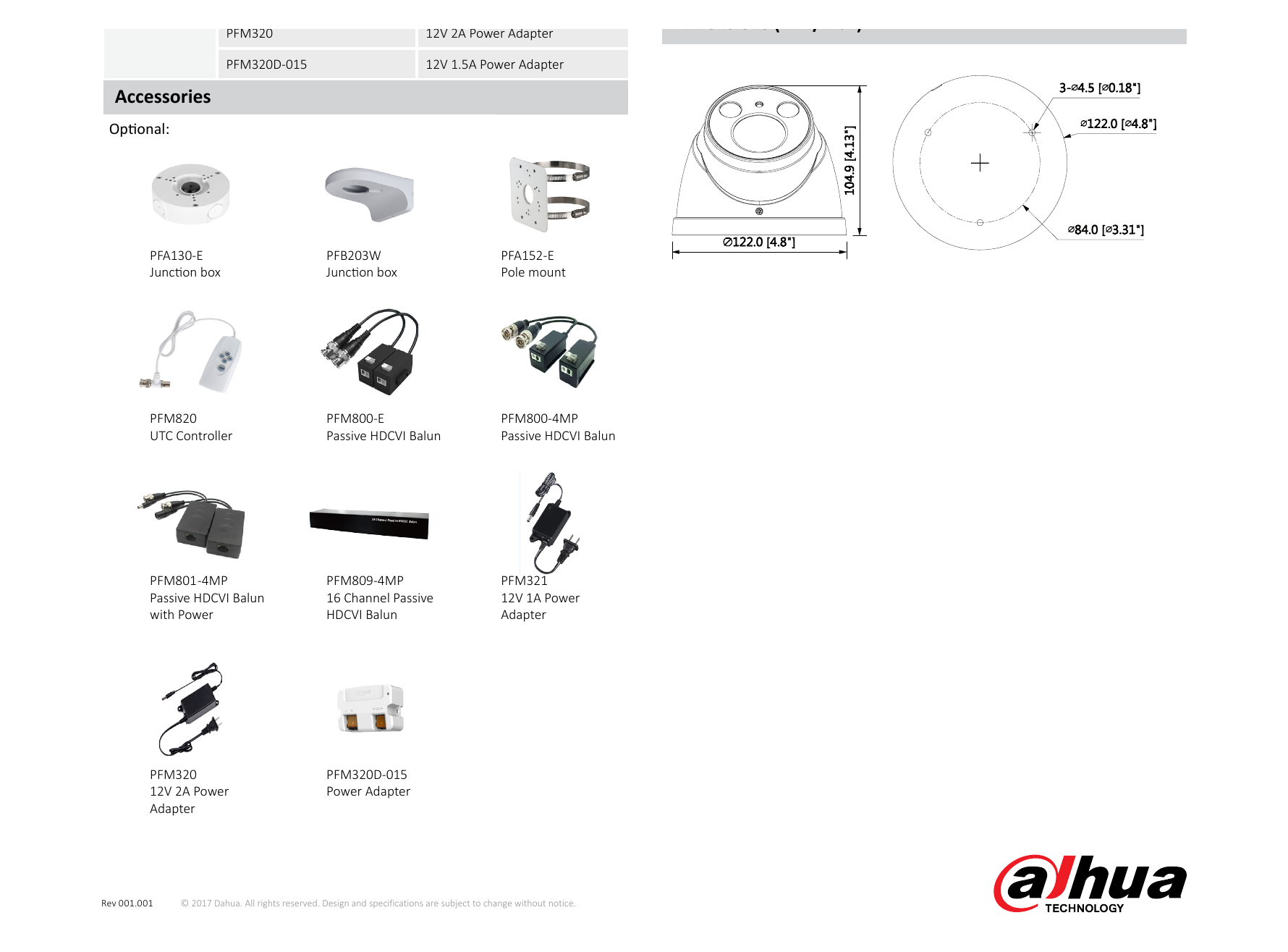

PFM320	12V 2A Power Adapter Dimensions (mm/inch)
PFM320D-015	12V 1.5A Power Adapter Accessories Optional:
Junction box	Junction box Pole mount
UTC Controller	Passive HDCVI Balun Passive HDCVI Balun
PFM801 -4MP	PFM809-4MP PFM321
Passive HDCVI Balun	16 Channel Passive 12V 1A Power
with Power	HDCVI Balun Adapter
Rev 001.001	© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com
