| Camera | AI H.265 AI Coding AI H.264 |
|---|
| 影像感測器 | 1/2.9" CMOS Main stream: 2688 × 1520 @ (1–25/30) fps |
|---|
| 最大解像度 | 2688 (H) × 1520 (V) Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) |
|---|
| ROM | 128 MB Video Frame Rate Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected |
|---|
| RAM | 512 MB to the total encoding capacity |
|---|
| Scanning System | Progressive Stream Capability 3 streams |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 0.005 lux@F1.5 (Color, 30 IRE) Resolution 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 |
|---|
| 最低照度 | 0.0005 lux@F1.5 (B/W, 30 IRE) × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) 0 lux (Illuminator on) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| S/N Ratio | >56 dB H.264: 3 kbps–8192 kbps Video Bit Rate |
|---|
| Illumination Distance | Up to 40 m (131.23 ft) H.265: 3 kbps–8192 kbps |
|---|
| Illuminator On/Off Control | Auto/Manual Day/Night Auto (ICR)/Color/B/W |
|---|
| Illuminator Number | 3 (IR LED) BLC Yes |
|---|
| 角度調節 | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° HLC Yes |
|---|
| 鏡頭 | WDR 120 dB |
|---|
| 鏡頭類型 | Motorized vari-focal Scene Self-adaptation Yes (SSA) |
|---|
| 鏡頭接口 | φ14 Auto; natural; street lamp; outdoor; manual; regional White Balance custom |
|---|
| 焦距 | 2.7 mm–13.5 mm |
|---|
| Gain Control | Auto |
|---|
| Max. Aperture | F1.5 |
|---|
| Noise Reduction | 3D NR H: 104°–29° |
|---|
| Field of View | V: 54° –16° |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) D: 125° –33° |
|---|
| Iris Control | Fixed Image Stabilization Electronic Image Stabilization (EIS) |
|---|
| Close Focus Distance | 0.8 m (2.62 ft) Region of Interest (RoI) Yes (4 areas) |
|---|
| T | resolution and lower) |
|---|
| DORI 偵測距離 | (688.98 ft) (275.60 ft) (137.80 ft) (68.90 ft) |
|---|
| Distance | Mirror Yes *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in Privacy Masking 4 areas this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ Audio project des |
|---|
| Built-in MIC | Yes, built-in Mic |
|---|
| 音訊壓縮 | G.711a; G.711Mu; PCM; G.726; G.723 Tripwire, intrusion (support the classification and |
|---|
| accurate detection of vehicle and human); | Alarm |
|---|
| AI SSA | Yes -ZAS: No SD card; SD card full; SD card error; service life With AI NVR, quickly pick up the human/vehicle targets warning (only supported by Dahua card); network that users are interested in from SMD events disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene Work together with Smart NVR to perform refine changing; audio detection; voltage |
|---|
| Smart Search | intelligent search, event extraction and merging to event detection; external alarm; SMD; safety exception |
|---|
| videos | Alarm Event -ZS: No SD card; SD card full; SD card error; service life |
|---|
| Video | warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion H.265; H.264; H.264H; H.264B; MJPEG (only supported |
|---|
| 視頻壓縮 | detection; video tampering; intrusion; tripwire; scene by the sub stream) changing; audio detection; voltage detection; defocus detection; SMD; safety exception www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|

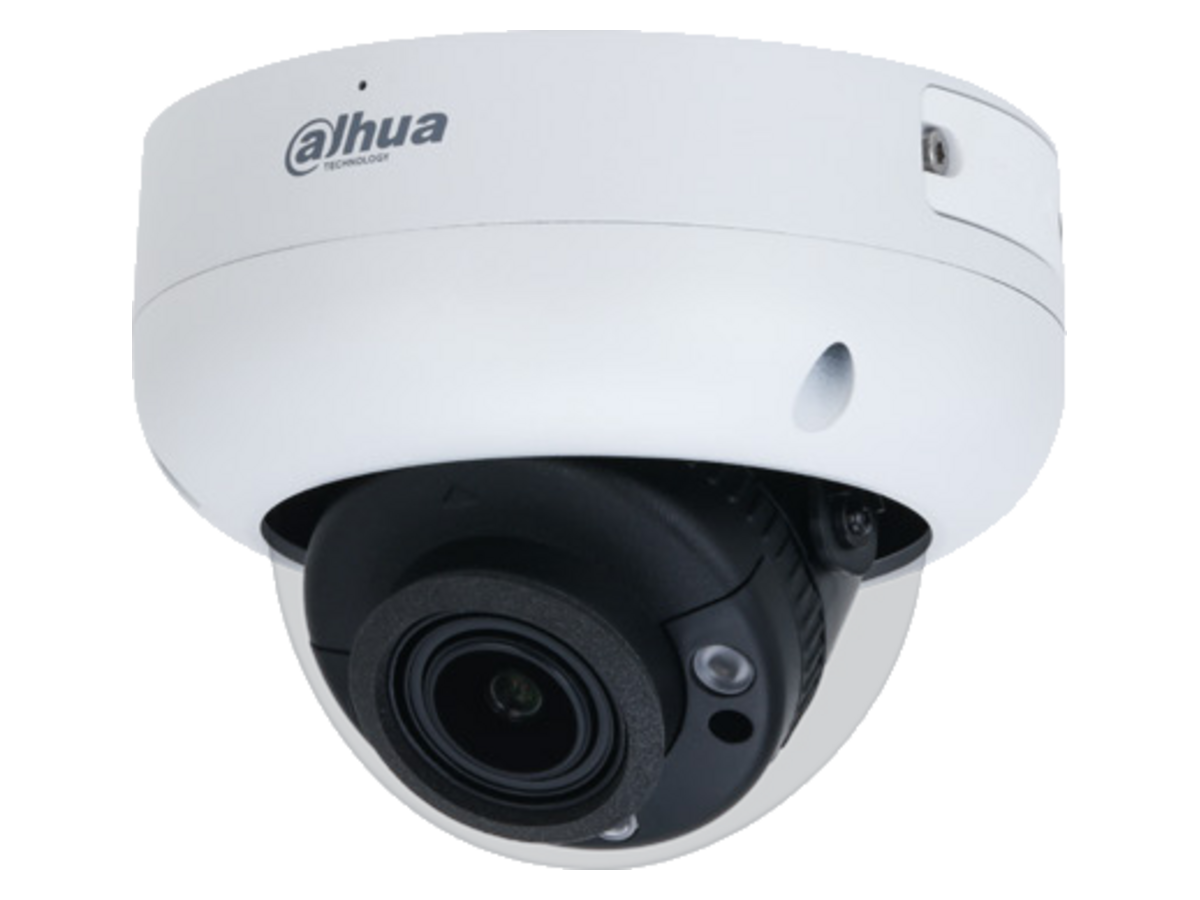

| Network Port | RJ-45 (10/100 Base-T) Type Model Description 4MP IR Vari-focal Dome WizSense |
|---|
| SDK and API | Yes DH-IPC-HDBW3441R-ZAS-S2 Network Camera 4MP Camera IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; 4MP IR Vari-focal Dome WizSense |
|---|
| 網絡協議 | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; DH-IPC-HDBW3441R-ZS-S2 Network Camera Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P Video encryption; Firmware encryption; Configuration PFA137 Junction Box Bracket encryption; Digest; WSSE; Account lockout; Security logs; |
|---|
| Cyber Security | IP/MAC filtering; Generation and importing of X.509 PFA109 Mount Adapter certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted |
|---|
| execution; Trusted upgrade | PFB220C Ceiling Mount Bracket |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI PFB206W Wall Mount Accessories (Optional) |
|---|
| PFA156 | Pole Mount |
|---|
| 用戶管理 | 20 (Total bandwidth: 64 M) |
|---|
| PFM321D | 12 VDC 1 A Power Adapter |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
|---|
| IE: IE11 | PFM900-E Integrated Mount Tester |
|---|
| Browser | Chrome |
|---|
| Firefox | TF-P100 TLC SD Card |
|---|
| Management Software | SmartPSS Lite; DSS; DMSS |
|---|
| Mobile Client | iOS; Android Accessories |
|---|
| Certification | Optional: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|---|
| PFA137 | PFA109 PFB220C |
|---|
| Port | Junction Mount Ceiling Mount |
|---|
| Box Bracket | Adapter Bracket |
|---|
| 音訊輸入 | 1 channel (RCA port) (Only - ZAS supports) |
|---|
| 音訊輸出 | 1 channel (RCA port) (Only - ZAS supports) 1 channel in: wet contact, 5 mA 3 V–5 VDC (Only - ZAS supports) 1 channel out: wet contact, 300 mA 12 VDC (Only - ZAS supports) |
|---|
| 供電 | 12 VDC 1 A Wall Pole |
|---|
| Power Adapter | Mount Mount |
|---|
| 功耗 | Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE) |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH PFM900-E TF-P100 |
|---|
| Integrated | TLC SD |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to 140 °F) Mount Tester Card |
|---|
| 防護等級 | IP67; IK10 |
|---|
| Casing | Metal |
|---|
| Product Dimensions | 94 mm × Φ122 mm (3.7" × Φ4.8") |
|---|
| 淨重 | 713 g (1.57 lb) |
|---|
| 毛重 | 986 g (2.17 lb) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
