| Camera | Support the counting of number in area, and 4 rules People Counting configuration. Count number of people or stay time and |
|---|
| 影像感測器 | 1/1.8” CMOS link alarm. Support queue management, and 4 rules configuration. |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Count number of people or stay time and link alarm. Work together with Smart NVR to perform refine |
|---|
| ROM | 128 MB |
|---|
| Intelligent Search | intelligent search, event extraction and merging to event videos. |
|---|
| RAM | 1 GB |
|---|
| Scanning System | Progressive H.265; H.264; H.264H; H.264B; MJPEG (only supported Video Compression |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s by the sub stream) 0.002 Lux@F1.6 (Color, 30IRE) |
|---|
| Smart Codec | Smart H.265+/H.264+ |
|---|
| 最低照度 | 0.0002 Lux@F1.6 (B/W, 30IRE) Main stream: 1920 × 1080 (1 fps–50/60 fps) 0 Lux (Illuminator on) Sub stream: D1 (1 fps–50/60 fps) Third stream: 1080p (1 fps–25/30 fps) |
|---|
| S/N Ratio | ＞56 dB Video Frame Rate *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected |
|---|
| Illumination Distance | 100 m (328.1 ft) (IR LED) to the total encoding capacity. |
|---|
| Illuminator On/Off Control | Auto/Manual Stream Capability 3 streams 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 |
|---|
| Illuminator Number | 3 (IR LED) Resolution × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) Pan: 0°–355° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–80° Bit Rate Control CBR/VBR Rotation: 0°–355° H.264: 32 kbps–8192 kbps Video Bit Rate |
|---|
| 鏡頭 | H.265: 32 kbps–8192 kbps |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| 鏡頭類型 | Motorized vari-focal |
|---|
| BLC | Yes |
|---|
| Mount Type | Module |
|---|
| HLC | Yes |
|---|
| 焦距 | 8 mm–48 mm |
|---|
| WDR | 140 dB |
|---|
| Max. Aperture | F1.6 Scene Self-adaptation |
|---|
| Horizontal: 42°–10.9° | Yes (SSA) |
|---|
| Field of View | Vertical: 23°–6° |
|---|
| Diagonal: 49°–12° | Auto/natural/street lamp/outdoor/manual/regional White Balance custom |
|---|
| 光圈類型 | Auto |
|---|
| Gain Control | Auto/Manual |
|---|
| Close Focus Distance | 2.5 m–6 m (8.2 ft–19.7 ft) |
|---|
| Noise Reduction | 3D NR |
|---|
| Motion Detection | OFF/ON (4 areas) 107.0 m 40.0 m 21.0 m 10 m Region of Interest (RoI) Yes (4 areas) |
|---|
| DORI 偵測距離 | W (351 ft) (131.2 ft) (38.9 ft) (32.8 ft) |
|---|
| Distance | Electronic Image Yes 400.0 m 160.0 m 80.0 m 40.0 m Stabilization (EIS) (1312.3 ft) (524.9 ft) (262.5 ft) (131.2 ft) |
|---|
| Smart Illumination | Yes |
|---|
| 智能事件 | Defog Yes |
|---|
| IVS | Abandoned object; missing object Image Rotation 0°/90°/180°/270° |
|---|
| Heat Map | Yes Mirror Yes |
|---|
| Professional, intelligent | Privacy Masking 8 areas Tripwire; intrusion; fast moving (the three functions Audio support the classification and accurate detection |
|---|
| IVS (Perimeter Protection) | Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 of vehicle and human); loitering detection; people gathering; parking detection Alarm Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face No SD card; SD card full; SD card error; network attribute extract, 6 attributes and 8 expressions: Gender, disconnection; IP conflict; illegal acc |
|---|
| Face Detection | sadness, disgust, surprise, confusion and fear), mask, changing; intrusion; tripwire; abandoned object; beard; face matting setting: face, single inch photo; three Alarm Event missing object; fast moving; parking detection; loitering snapshot methods: real-time snapshot, optimization detection; people gathering; input abnormal detection; snapshot, quality priority; face angle filter; optimization |
|---|
| time setting | detection; people counting in area; stay alarm; people No. exception detection; queue management www.dahuasecurity.com |
|---|
| Network | RJ-45 (10/100 Base-T) Ordering Information |
|---|
| SDK and API | Yes Type Model Description Video encryption; firmware encryption; configuration DH-IPC-HDBW5242HP-Z6E- 2MP Vari-focal Dome WizMind encryption; Digest; WSSE; account lockout; security logs; MF Network Camera, PAL |
|---|
| Cyber Security | IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted DH-IPC-HDBW5242HN- 2MP Vari-focal Dome WizMind |
|---|
| execution; trusted upgrade | Z6E-MF Network Camera, NTSC 2MP IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; Camera 2MP Vari-focal Dome WizMind |
|---|
| Protocol | RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; IPC-HDBW5242HP-Z6E-MF Network Camera, PAL NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP 2MP Vari-focal Dome WizMind ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; IPC-HDBW5242HN-Z6E-MF |
|---|
| Interoperability | Network Camera, NTSC Genetec; P2P |
|---|
| PFA773 | Wall Mount |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) |
|---|
| PFB211W | Pole Mount |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
|---|
| PFA152-E | Pole Mount IE: IE8 and later |
|---|
| Browser | Chrome PFA101 Ceiling Mount |
|---|
| Firefox | Accessories (Optional) |
|---|
| PFB300C | Ceiling Mount |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| Mobile Phone | IOS; Android |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| TF-P100 | MicroSD Memory Card CE-LVD: EN62368-1, EN60950-22 (optional) CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07, UL 50E NEMA Type 4X (optional) |
|---|
| Port | Accessories |
|---|
| 音訊輸入 | 1 channel (terminal) Optional |
|---|
| 音訊輸出 | 1 channel (terminal) |
|---|
| 警報輸入 | 3 channels in: 5mA 3V–5V DC |
|---|
| 警報輸出 | 2 channels out: 300mA 12V DC PFA773 PFB211W PFA152-E |
|---|
| Wall Mount | Pole Mount Pole Mount |
|---|
| 供電 | 12V DC (±25%)/24V AC (±30%)/PoE (802.3af)/ePoE Basic power consumption: 3.6W (12V DC); 3.1W (24V |
|---|
| AC); 4.4W (PoE) | PFA101 PFB300C PFM900-E |
|---|
| 功耗 | Max. power consumption (H.265 + max. stream + Ceiling Mount Ceiling Mount Integrated Mount Tester intelligent function + IR LED + focus): 11.7W (12V DC); 11.3W (24V AC); 11.9W (PoE) |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|---|
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) |
|---|
| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) Memory Card |
|---|
| Casing | Metal |
|---|
| 尺寸 | 129.1 mm × Φ157.9mm (5.1"× Φ6.2") |
|---|
| 淨重 | 1500.0 g (3.3 lb) |
|---|

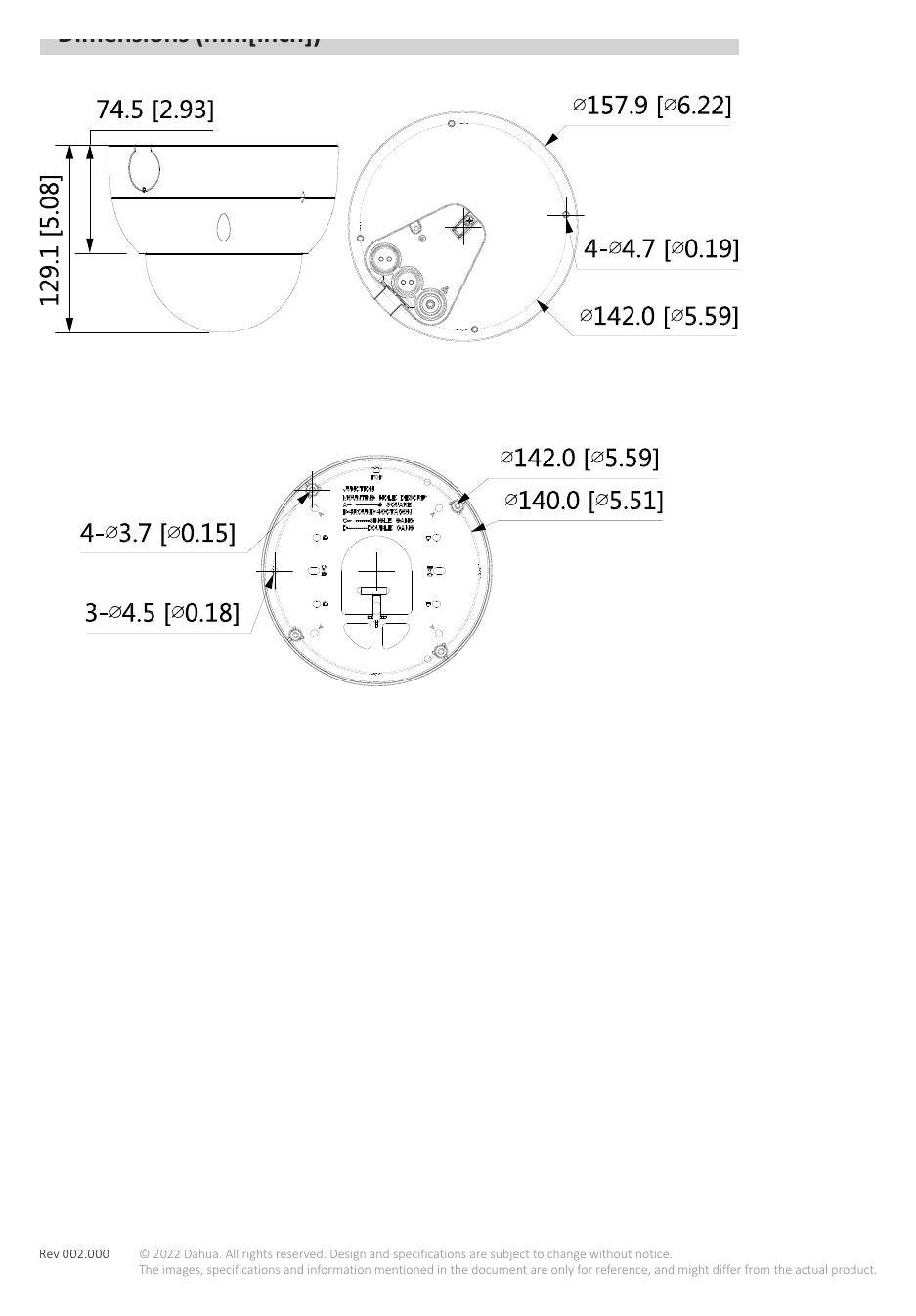

| 毛重 | 1600.0 g (3.5 lb) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
