| Camera | People Counting displaying and outputting monthly/daily reports. Support 4 tripwire rules configuration, people |
|---|
| 影像感測器 | 1/1.8” 8Megapixel progressive CMOS counting in 4 areas, and 4 queue management functions |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Work together with Smart NVR to perform refine 4 GB Intelligent Search intelligent search, event extraction and merging to event videos. |
|---|
| RAM | 2 GB Video |
|---|
| Scanning System | Progressive H.265, H.264, H.264H, H.264B, MJPEG(only supported Video Compression by sub stream) |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s Smart Codec Smart H.265+/ Smart H.264+ 0.003 Lux@F1.2 (Color, 30IRE) Main Stream: 3840 × 2160 (1–25/30 fps) |
|---|
| 最低照度 | 0.0003 Lux@F1.2 (B/W, 30IRE) Video Frame Rate Sub stream: 704 × 576 (1–25fps);704 × 480 (1–30fps) 0 Lux (Illuminator on) Third stream: 1920 × 1080 (1–25/30 fps) |
|---|
| S/N Ratio | > 56 dB Stream Capability 3 streams 8M (3840 × 2160)/6M (3072 × 2048/3072 × 1728)/5M |
|---|
| Illumination Distance | 40 m (131.23 ft) (2592 × 1944)/4M (2688 × 1520)/3M (2048 × |
|---|
| 解像度 | 1536/2304 × 1296)/1080p(1920 × 1080)/1.3M (1280 × |
|---|
| Illuminator On/Off Control | Auto/Manual 960)/720p(1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
|---|
| Illuminator Number | 3 (IR LED) |
|---|
| 碼率控制 | CBR/VBR Pan: 0°–355° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–80° H.264: 32 Kbps–16384 Kbps Video Bit Rate |
|---|
| Rotation: 0°–355° | H.265: 12 Kbps–16384 Kbps |
|---|
| 鏡頭 | Day/Night Auto (ICR)/Color/B/W |
|---|
| 鏡頭類型 | Motorized vari-focal BLC Yes |
|---|
| Mount Type | Module interface HLC Yes |
|---|
| 焦距 | 2.7 mm-12 mm WDR 120 dB |
|---|
| Max. Aperture | F1.2 Scene Self-adaptation (SSA) Yes |
|---|
| Horizontal: 114°(W)–47°(T) | Auto/natural/street lamp/outdoor/manual/regional White Balance |
|---|
| Field of View | Vertical: 59°(W)–27°(T) custom Diagonal: 141° (W–55°(T) |
|---|
| Gain Control | Auto/Manual |
|---|
| 光圈類型 | Auto |
|---|
| Noise Reduction | 3D NR w: 1 m (W: 3.28 ft) |
|---|
| T: 2.5 m (T: 8.20 ft) | Motion Detection OFF/ON (4 areas, rectangular) |
|---|
| DORI 偵測距離 | 87.2 m 34.9 m 17.4 m 8.7 m Electronic Image |
|---|
| W | Yes |
|---|
| Distance | (286.09 ft) (144.50 ft) (57.08 ft) (28.54 ft) Stabilization(EIS) 186.7 m 74.7 m 37.3 m 18.6 m |
|---|
| T | Smart Illumination Yes (612.53 ft) (245.08 ft) (122.37 ft) (61.02 ft) |
|---|
| 智能事件 | Defog Yes 0°/90°/180°/270° (Support 90°/270° with 1080p |
|---|
| IVS | Abandoned object, moving object Image Rotation resolution or below.) |
|---|
| Professional, intelligent | Mirror Yes Tripwire, intrusion, fast moving (the three functions Privacy Masking 4 areas support the classification and accurate detection of vehicle and human); parking detection, loitering |
|---|
| detection, and people gathering. | Audio Face detection, track, priority, snapshot; Audio Compression G.711a; G.711Mu; G726; G.723 Upload Optimized snapshot picture; Face enhancement, face exposure, face attribute Alarm extract,6 attributes and 8 expressions: Gender, age, glasses,expressions (anger, sadness, disgust, fear, No SD card; SD card full; SD card error; network surprise,calm, happiness and confusion), Mouth mask, disconne |
|---|
| Face Detection | detection; video tampering; tripwire; intrusion; fast beard; Face matting setting: face, single inch photo; moving; abandoned object; missing object; loitering Three snapshot methods: real-time snapshot, priority Alarm Event detection; people gathering; parking detection; scene |
|---|
| snapshot, quality priority; | changing; audio detection; defocus detection; external |
|---|
| Face angle filter Priority time setting; | alarm; face detection; people counting in area; stay |
|---|
| Support Duration Optimal. | alarm; people counting; people counting exception detection; safety exception, Queue Management www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|
| SDK and API | Yes DH-IPC- HDBW5842HP- 8MP IR Dome WizMind Network Camera,PAL Video encryption; firmware encryption; configuration ZHE-2712F- encryption; Digest; WSSE; account lockout; security DC12AC24V |
|---|
| Cyber Security | logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted DH-IPC- boot; trusted execution; trusted upgrade HDBW5842HN- IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; 8MP IR Dome WizMind Network Camera,NTSC ZHE-2712F- |
|---|
| Protocol | RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; 8MP Camera DC12AC24V QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour IPC-HDBW5842HP- ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; ZHE-2712F- 8MP IR Dome WizMind Network Camera,PAL |
|---|
| Genetec; P2P;RTMP | DC12AC24V |
|---|
| 用戶管理 | 20 (Total bandwidth: 160 M.) IPC-HDBW5842HN- |
|---|
| ZHE-2712F- | 8MP IR Dome WizMind Network Camera,NTSC |
|---|
| Storage | FTP; Micro SD card (256 G); NAS; SFTP DC12AC24V |
|---|
| IE: IE9 and later | PFA773 Sun Shade |
|---|
| Browser | Chrome: Chrome 42 and later |
|---|
| Firefox: Firefox 48.0.2 and later | PFB211W Wall Mount |
|---|
| Management Software | Smart PSS; DSS; DMSS Accessories (Optional) PFA152-E Pole Mount |
|---|
| Mobile Phone | IOS, Android PFA101 Mount Adapter |
|---|
| Certification | PFB300C Ceiling Mount CE-LVD: EN62368-1,EN60950-22 (optional) CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|---|
| FCC: 47 CFR FCC Part 15, Subpart B | Accessories UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07,UL 50E NEMA Type 4X (optional) Optional: |
|---|
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
|---|
| Audio Interface: 1/1 channel In/Out | PFA773 PFB211W PFA152-E |
|---|
| 警報輸入 | 3 channel In: 5mA 5V DC |
|---|
| 警報輸出 | 2 channel Out: 1000mA 30V DC/500mA 50V AC |
|---|
| 供電 | 12V DC/24V AC/PoE+ (802.3at); ePoE |
|---|
| PFA101 | PFB300C Basic power consumption: 5.4W (12V DC); 5W(24V AC); 4.9W (PoE) Max. power consumption (Max. stream + intelligent |
|---|
| 功耗 | function + IR LED + focus): 16.7W (12V DC);15.7W(24V AC); 15.6W (PoE) Heat power consumption: 3.3W (12V DC);5.5W(24V AC); 5.5W (PoE) |
|---|
| Operating Conditions | –40°C to +60°C (–40°F to +140°F)/Less than 95% RH |
|---|
| 儲存環境 | –40°C to +60°C (–40°F to +140°F) IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) |
|---|
| Casing | Metal + Plastic |
|---|
| 尺寸 | 129.1 mm × Φ157.9 mm (5.08" × Φ6.22") (L × W × H) |
|---|
| 毛重 | 1600 g (3.53 lb) |
|---|

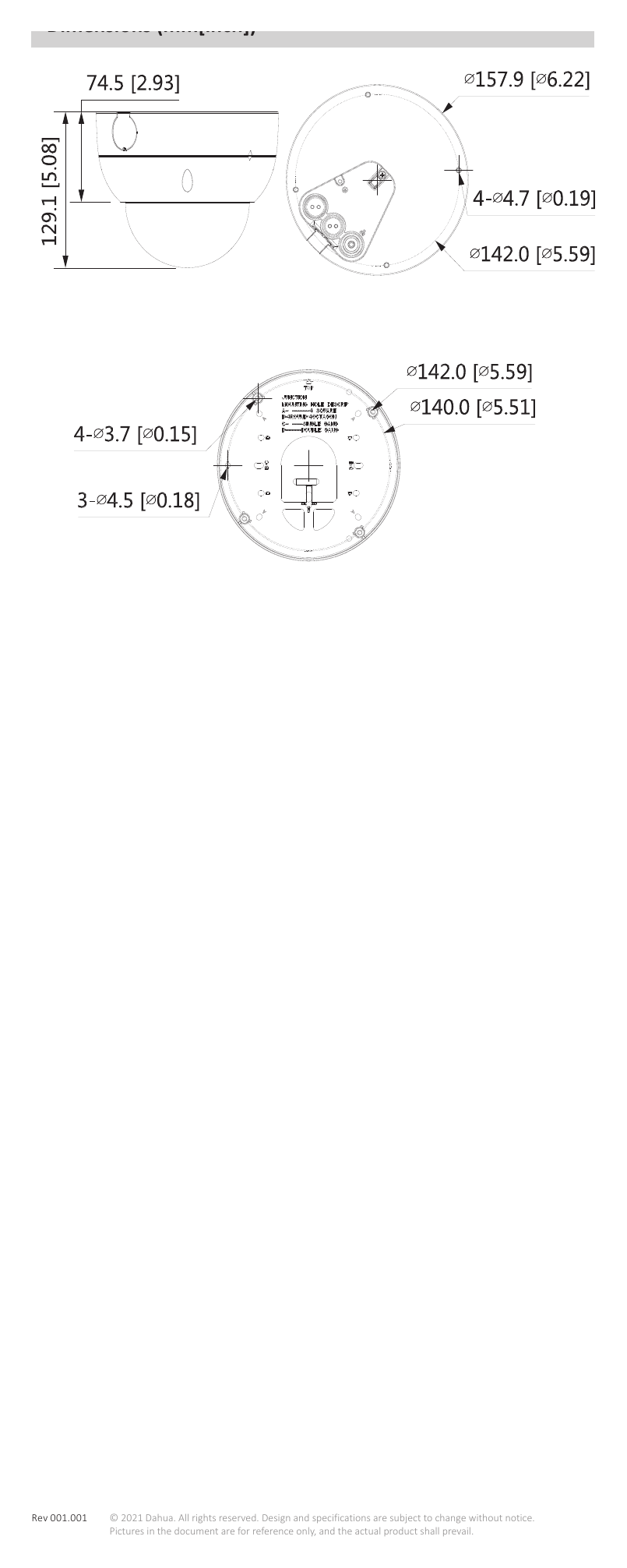

| 淨重 | 1500 g (3.31 lb) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
