| Camera | Support the counting of number in area, and 4 rules People Counting configuration. Count number of people or stay time and |
|---|
| 影像感測器 | 1/1.8”CMOS link alarm Support queue management, and 4 rules configuration. |
|---|
| 最大解像度 | 2688 (H) × 1520 (V) Count numb Work together with Smart NVR to perform refine |
|---|
| ROM | 128 MB |
|---|
| Intelligent Search | intelligent search, event extraction and merging to event videos |
|---|
| RAM | 1 GB |
|---|
| Scanning System | Progressive H.265; H.264; H.264H; H.264B; MJPEG (only supported Video Compression |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s by the sub stream) 0.002 Lux@F1.6 (Color, 30IRE) |
|---|
| Smart Codec | Smart H.265+/H.264+ |
|---|
| 最低照度 | 0.0002 Lux@F1.6 (B/W, 30IRE) Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 0 Lux (Illuminator on) 1080 (1 fps–50/60 fps) Sub stream: D1 (1 fps–50/60 fps) |
|---|
| S/N Ratio | ＞56 dB |
|---|
| Video Frame Rate | Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each |
|---|
| Illumination Distance | 120 m (393.7 ft) (IR LED) stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|---|
| Illuminator On/Off Control | Auto/Manual |
|---|
| Stream Capability | 3 streams |
|---|
| Illuminator Number | 4 (IR LED) 2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × |
|---|
| Pan: 0°–360° | 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 Resolution |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 |
|---|
| Rotation: 0°–360° | × 240) |
|---|
| 碼率控制 | CBR/VBR H.264: 32 kbps–8192 kbps Video Bit Rate |
|---|
| 鏡頭類型 | Motorized vari-focal H.265: 19 kbps–8192 kbps |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| Mount Type | Module |
|---|
| BLC | Yes |
|---|
| 焦距 | 8 mm–32 mm |
|---|
| HLC | Yes |
|---|
| Max. Aperture | F1.6 (Constant) |
|---|
| WDR | 140 dB Horizontal: 42°–15° |
|---|
| Field of View | Vertical: 23°–8° Auto/natural/street lamp/outdoor/manual/regional White Balance |
|---|
| Diagonal: 49°–17° | custom |
|---|
| Gain Control | Auto/Manual |
|---|
| 光圈類型 | Auto |
|---|
| Noise Reduction | 3D NR |
|---|
| Close Focus Distance | 2.5 m-6 m (8.2 ft-19.7 ft) |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| 感興趣區域 ROI | Yes (4 areas) |
|---|
| DORI 偵測距離 | 150.0 m 60.0 m 30.0 m 15.0 m (492.1 ft) (196.9 ft) (98.4 ft) (49.2 ft) Electronic Image |
|---|
| Distance | Yes 400.0 m 160.0 m 80.0 m 40.0 m Stabilization (EIS) (1312.3 ft) (524.9 ft) (262.5 ft) (131.2 ft) Smart Illumination Yes |
|---|
| 智能事件 | Defog Yes |
|---|
| IVS | Abandoned object; missing object Image Rotation 0°/90°/180°/270° |
|---|
| Heat Map | Yes Mirror Yes |
|---|
| Professional, intelligent | Privacy Masking 8 areas Tripwire; intrusion; fast moving (the three functions Audio support the classification and accurate detection |
|---|
| IVS (Perimeter Protection) | Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 of vehicle and human); loitering detection; people gathering; parking detection Alarm Face detection; track; optimization; snapshot; report high No SD card; SD card full; SD card error; network quality picture; face enhancement; face exposure; face disconnection; IP conflict; illegal access; motion attribute extract, 6 attributes and 8 expressio |
|---|
| Face Detection | sadness, disgust, surprise, confusion and fear), mask, missing object; fast moving; parking detection; loitering beard; face matting setting: face, single inch photo; three Alarm Event detection; people gathering; input abnormal detection; snapshot methods: real-time snapshot, optimization intensity change detection; people counting; face snapshot, quality priority; face angle filter; optimization |
|---|
| time setting | stay alarm; people No. exception detection, queue management www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|

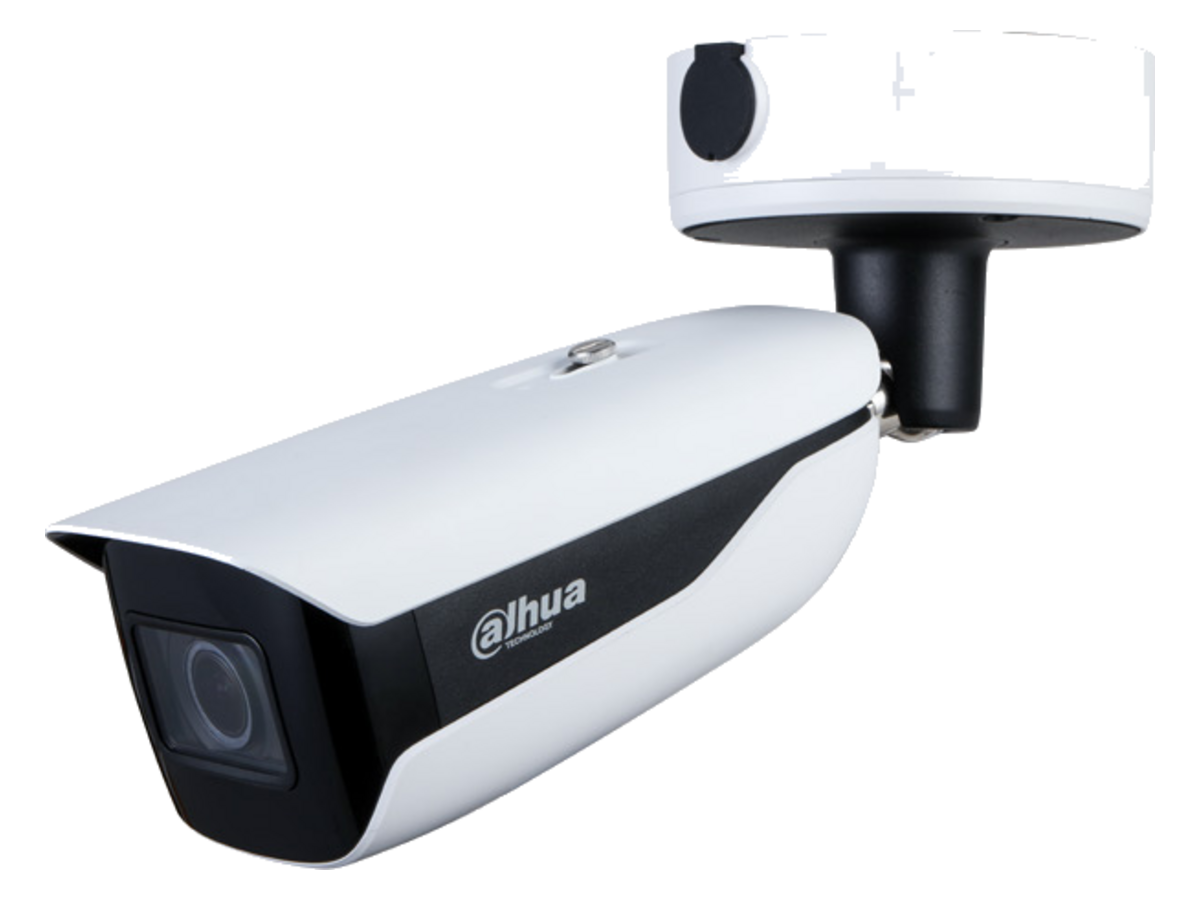

| SDK and API | Yes 4MP Vari-focal Bullet WizMind DH-IPC-HFW5442HP-Z4E Network Camera , PAL Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; 4MP Vari-focal Bullet WizMind DH-IPC-HFW5442HN-Z4E |
|---|
| Cyber Security | IP/MAC filtering; generation and importing of X.509 Network Camera , NTSC 4MP certification; syslog; HTTPS; 802.1x; trusted boot; trusted Camera |
|---|
| execution; trusted upgrade | 4MP Vari-focal Bullet WizMind IPC-HFW5442HP-Z4E Network Camera , PAL IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
|---|
| Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; 4MP Vari-focal Bullet WizMind IPC-HFW5442HN-Z4E Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP Network Camera , NTSC ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; PFA154 Pole Mount |
|---|
| Interoperability | Accessories Genetec; P2P (Optional) |
|---|
| TF-P100 | MicroSD Memory Card |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) |
|---|
| Storage | FTP; SFTP;Micro SD Card (support max. 256 G); NAS IE: IE8 and later |
|---|
| Browser | Chrome Accessories Firefox |
|---|
| Management Software | Smart PSS; DSS; DMSS Optional |
|---|
| Mobile Phone | IOS; Android CE-LVD: EN62368-1, EN60950-22 (optional) CE-EMC: Electromagnetic Compatibility Directive PFA154 TF-P100 2014/30/EU Pole Mount MicroSD |
|---|
| Certification | Memory Card FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07, UL 50E NEMA Type 4X (optional) Port |
|---|
| 音訊輸入 | 1 channel (3.5mm JACK port) |
|---|
| 音訊輸出 | 1 channel (3.5mm JACK port) |
|---|
| 警報輸入 | 3 channels in: 5mA 3V–5V DC |
|---|
| 警報輸出 | 2 channels out: 300mA 12V DC Power Dimensions (mm[inch]) |
|---|
| 供電 | 12V DC (±30%)/PoE (802.3af)/ePoE Basic power consumption: 2.5W (12V DC); 3.3W (PoE) |
|---|
| 功耗 | Max. power consumption (max. stream + intelligent function + IR LED + focus): 9.7W (12V DC); 11.6W (PoE) |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|---|
| 儲存環境 | –40°C to +60°C (–40°F to +140°F) |
|---|
| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) Structure |
|---|
| Casing | Metal + Plastic 340.1 mm × 108.5 mm × 92.9 mm (13.4" × 4.3" × 3.7") Dimensions (L × W × H) |
|---|

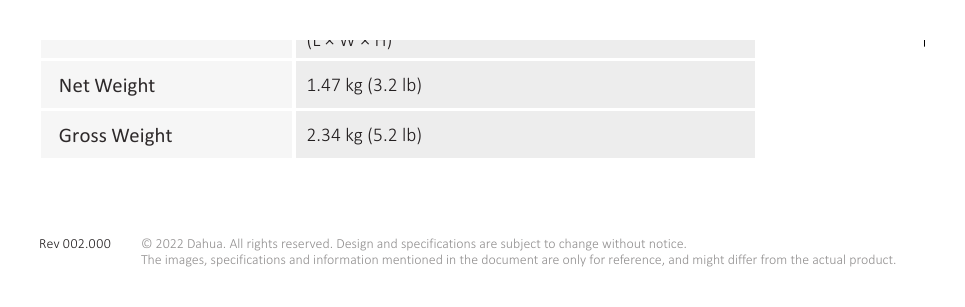

| 淨重 | 1.47 kg (3.2 lb) |
|---|
| 毛重 | 2.34 kg (5.2 lb) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
