| Camera | or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; |
|---|
| 影像感測器 | 1/1.8" CMOS optimization time setting |
|---|
| 最大解像度 | 2688 (H) × 1520 (V) Tripwire people counting, generating and exporting report (day/month); people counting in area; queue People Counting |
|---|
| ROM | 128MB management; 4 rules can be set for tripwire, people counting in area and queue management. |
|---|
| RAM | 512MB Work together with Smart NVR to perform refine |
|---|
| Smart Search | intelligent search, event extraction and merging to event |
|---|
| Scanning System | Progressive videos |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s Video H.265; H.264; H.264H; H.264B; MJPEG (Only supported 0.002 lux@F1.6 (Color, 30 IRE) Video Compression by the sub stream) |
|---|
| 最低照度 | 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) Smart Codec Smart H.265+; Smart H.264+ |
|---|
| S/N Ratio | >56 dB |
|---|
| AI Coding | AI H.265; AI H.264 |
|---|
| Illumination Distance | 50 m (164.04 ft) (IR) Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) |
|---|
| Illuminator On/Off Control | Auto; manual Sub stream: D1@(1–25/30 fps) |
|---|
| Video Frame Rate | Third stream: 1080p@(1–25/30 fps) |
|---|
| Illuminator Number | 4 (IR LED) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected |
|---|
| Pan: 0°–360° | to the total encoding capacity. |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° |
|---|
| Rotation: 0°–360° | Stream Capability 3 streams 2688×1520; 2304×1296; 1080p (1920 × 1080); 1.3M |
|---|
| 解像度 | (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 鏡頭接口 | M12 H.264: 3 kbps–20480 kbps Video Bit Rate |
|---|
| 焦距 | 2.8 mm; 3.6 mm; 6 mm H.265: 3 kbps–20480 kbps |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| Max. Aperture | F1.6 2.8 mm: Horizontal: 113°; Vertical: 60°; Diagonal: 134° BLC Yes |
|---|
| Field of View | 3.6 mm: Horizontal: 89°; Vertical: 48°; Diagonal: 104° 6 mm: Horizontal: 56°; Vertical: 31°; Diagonal: 65° HLC Yes |
|---|
| Iris Control | Fixed WDR 140 dB 2.8 mm: 0.6 m (1.97 ft) Scene Self-adaptation Yes |
|---|
| Close Focus Distance | 3.6 mm: 1.2 m (3.94 ft) (SSA) 6 mm: 2.5 m (8.20 ft) Auto; natural; street lamp; outdoor; manual; regional White Balance custom |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| Gain Control | Auto; manual 38.6 m 15.4 m 7.7 m 3.9 m 2.8 mm (126.64 ft) (50.52 ft) (25.26 ft) (12.80 ft) Noise Reduction 3D NR |
|---|
| Distance | 55.2 m 22.1 m 11.0 m 5.5 m 3.6 mm Motion Detection OFF/ON (4 areas, rectangular) (181.10 ft) (72.51 ft) (36.09 ft) (18.04 ft) 82.8 m 33.1 m 16.6 m 8.3 m Region of Interest (RoI) Yes (4 areas) 6 mm (271.65 ft) (108.60 ft) (54.46 ft) (27.23 ft) |
|---|
| 除霧 | Yes Smart Event 0°/90°/180°/270° (Support 90°/270° with 4M resolution Image Rotation and lower) www.dahuasecurity.com |
|---|
| Mirror | Yes Environment |
|---|
| Privacy Masking | 8 areas Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Audio | Operating Humidity ≤95% |
|---|
| 音訊壓縮 | PCM; G.711a; G.711Mu; G.726; G.723 Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 警報 | Protection IP67; IK10 No SD card; SD card full; SD card error; network Structure disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast Casing Metal moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene 244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99") changing; audio detection; external alarm; |
|---|
| security exception | Net Weight 815 g (1.80 lb) |
|---|
| Network | Gross Weight 1080 g (2.38 lb) |
|---|
| Network Port | RJ-45 (10/100 Base-T) |
|---|
| SDK and API | Yes Ordering Information Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; Type Model Description |
|---|

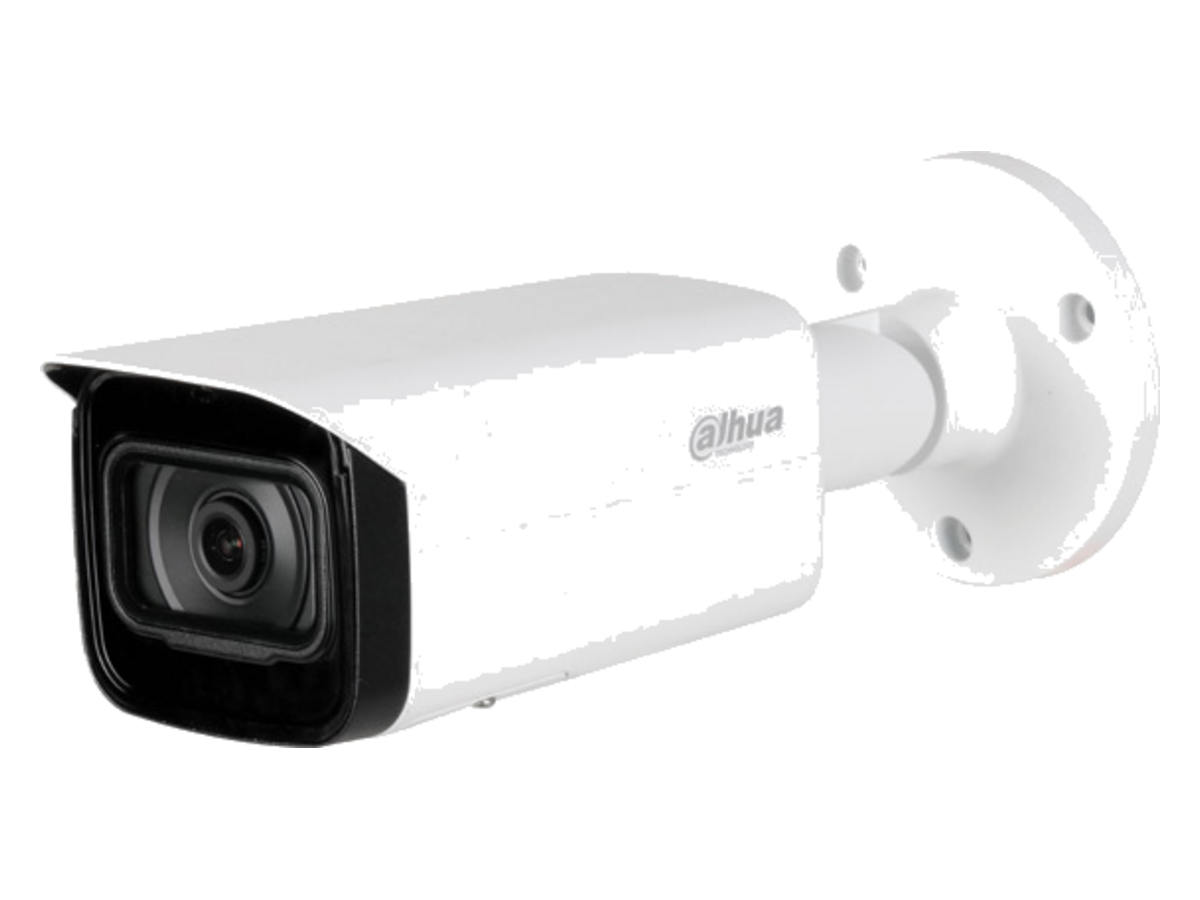

| Cyber Security | IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted 4MP IR Fixed-focal Bullet WizMind |
|---|
| execution; trusted upgrade | DH-IPC-HFW5442TP-ASE Network Camera, PAL 4MP Camera IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; 4MP IR Fixed-focal Bullet WizMind RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; DH-IPC-HFW5442TN-ASE |
|---|
| 網絡協議 | Network Camera, NTSC NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; |
|---|
| SNMP | PFA135 Junction Box |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
|---|
| PFA130-E | Junction Box |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) |
|---|
| PFA152-E | Pole Mount Bracket Accessories |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
|---|
| PFM321D | 12 VDC 1A Power Adapter IE: IE 8 and later |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| Browser | Chrome Firefox |
|---|
| TF-P100/256G | MicroSD Memory Card |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| Mobile Client | iOS; Android Accessories CE-LVD: EN60950-1; Optional: CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; |
|---|
| Certifications | FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|---|
| PFA135 | PFA130-E PFA152-E |
|---|
| Port | Junction Junction Pole Mount |
|---|
| box | box Bracket |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| 警報輸入 | 1 channel in: 5 mA 3–5 VDC |
|---|
| 警報輸出 | 1 channel out: 300 mA 12 VDC |
|---|
| 供電 | PFM321D PFM900-E TF-P100/256G 12 VDC 1A Power Integrated MicroSD |
|---|

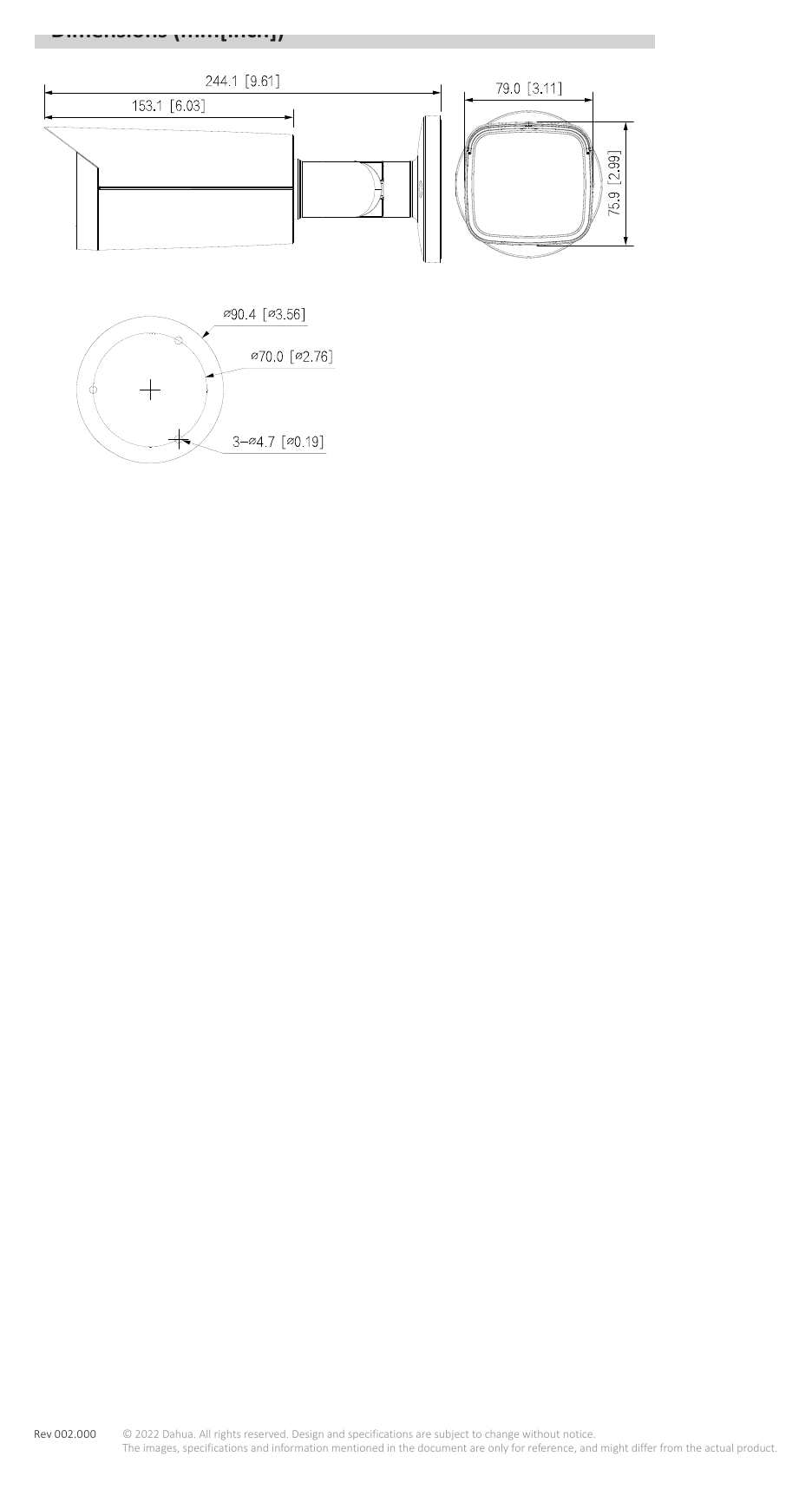

| 功耗 | Max. (H.265 + three streams + intelligence on + IR on): 7.1 W (12 VDC); 8.4 W (PoE) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
