| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/2.8” STARVISTM CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/H.264 |
|---|
| RAM/ROM | 512M/128M Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 1080P/720P(1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| S/N Ratio | More than 50dB Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR Distance | N/A |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR On/Off Control | N/A |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| IR LEDs | N/A |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| 鏡頭類型 | Fixed |
|---|
| Gain Control | Auto / Manual |
|---|
| 焦距 | 3.6mm/2.8mm |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Max. Aperture | F1.6 3.6mm: H: 80.9°; V: 40.8° Motion Detection Support Angle of View 2.8mm: H: 102.9°; V: 54.9° |
|---|
| Region of Interest | Support |
|---|
| Optical Zoom | N/A Electronic Image Stabilization N/A |
|---|
| Focus Control | Fixed (EIS) |
|---|
| 除霧 | Support DORI Distance *Note: The DORI distance is a “general proximity” of distance which makes it easy to Digital Zoom 16x pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Flip 180° criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| 鏡頭 | Detect Observe Recognize Identify 3.6mm 54.5m(178.8ft) 21.8m(71.5ft) 10.9m(35.8ft) 5.4m(17.7ft) |
|---|
| Compression | G.711a/G.711mu/G.726/AAC 2.8mm 41.4m(135.8ft) 16.6m(54.5ft) 8.3m(27.2ft) 4.1m(13.5ft) |
|---|
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 20° ~ 90° |
|---|
| WiFi | Wi-Fi(IEEE802.11a/b/g/n/ac) , Dual-Band Wi-Fi |
|---|
| Manual Control Speed | Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Preset Speed | Pan: 80° /s; Tilt: 40° /s Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 8 Tour, Auto Pan Streaming Method Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Max. User Access 20 users Auto restore to previous PTZ and lens status after |
|---|
| Power up Action | NAS (Network Attached Storage),Local PC for |
|---|
| power failure | Edge Storage instant recording, Micro SD card 256GB Activate Preset/Tour if there is no command in the |
|---|
| Idle Motion | Web Viewer IE, Chrome, Firefox, Safari specified period |
|---|
| Protocol | DH-SD Management Software Smart PSS, DSS, DMSS |
|---|
| Intelligence | Smart Phone IOS, Android Motion detection, Video tampering, Network Certifications |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | N/A UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | Mic in/Line in, Line out |
|---|
| Alarm I/O | N/A |
|---|
| Electrical | PFA107 PFB305W PFB220C |
|---|
| Mount Adapter | Wall Mount Ceiling Mount |
|---|
| 供電 | DC 12V/1.5A |
|---|
| 功耗 | 6W Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| 防護等級 | IP66 DC12V/2A Power Adapter |
|---|
| Vandal Resistance | IK08 Construction |
|---|
| Wall Mount | Ceiling Mount |
|---|
| PFB305W+PFA107 | PFB220C+PFA107 |
|---|
| Casing | Metal |
|---|

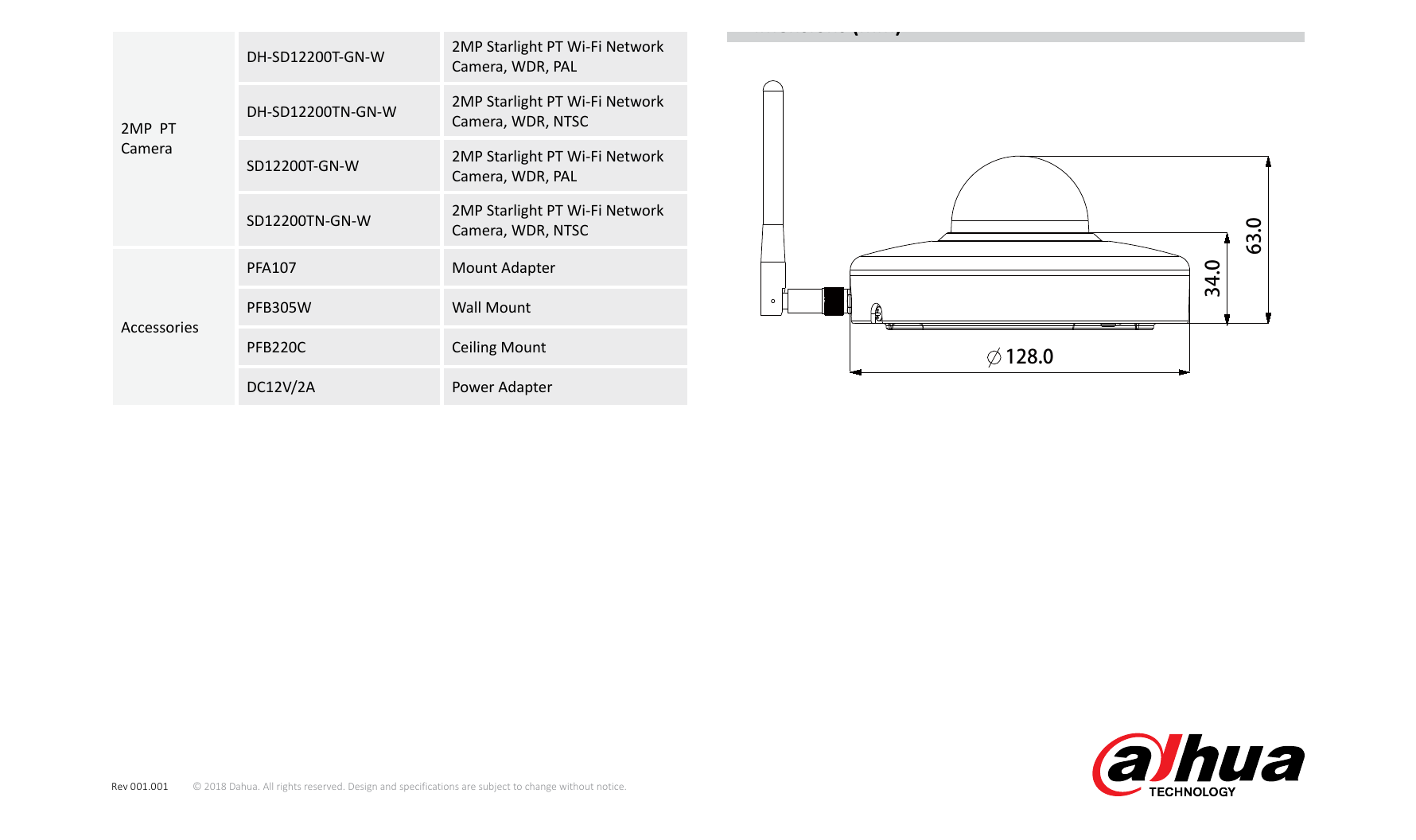

| 尺寸 | Φ128 (mm) x 63 (mm) |
|---|
| 淨重 | 0.485kg(1.07lb) |
|---|
| 毛重 | 0.7kg(1.54lb) Ordering Information |
|---|
| 類型 | Part Number Description Dimensions (mm) 2MP Starlight PT Wi-Fi Network DH-SD12200T-GN-W Camera, WDR, PAL 2MP Starlight PT Wi-Fi Network DH-SD12200TN-GN-W 2MP PT Camera, WDR, NTSC |
|---|
| PFA107 | Mount Adapter 34.0 |
|---|
| PFB305W | Wall Mount Accessories |
|---|
| PFB220C | Ceiling Mount 128.0 |
|---|
| DC12V/2A | Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
