| Starlight Technology | The camera allows for 6KV lightning rating,which provides effective |
|---|
| environments. | Forum) specifications, ensuring interoperability between network video products regardless of manufacturer. www.dahuasecurity.com |
|---|
| Technical Specification | IVS Tripwire, Intrusion,Abandoned/Missing |
|---|
| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/H.264 |
|---|
| RAM/ROM | 512M/128M Streaming Capability 3 Streams |
|---|
| Scanning System | Progressive 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Main stream: 1080P/720P(1 ~ 25/30fps) Color: 0.005Lux@F1.8; B/W: 0.0005Lux@F1.8; |
|---|
| Minimum Illumination | Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) 0Lux@F1.8 (IR on) |
|---|
| S/N Ratio | More than 50dB Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | Distance up to 15m (49.2ft) Bit Rate Control CBR/VBR |
|---|
| IR On/Off Control | Auto/Manual Bit Rate H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR LEDs | 3 Day/Night Auto(ICR) / Color / B/W |
|---|
| 鏡頭 | Backlight Compensation BLC / HLC / WDR(120dB) |
|---|
| 焦距 | 2.7mm~8.1mm White Balance Auto,ATW,Indoor,Outdoor,Manual |
|---|
| Max. Aperture | F1.8 Gain Control Auto / Manual |
|---|
| Angle of View | H: 105.6° ~ 35.2° Noise Reduction Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 3x Motion Detection Support |
|---|
| Focus Control | Auto/Manual Region of Interest Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization N/A (EIS) DORI Distance |
|---|
| 除霧 | Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Digital Zoom 16x sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Flip 180° |
|---|
| Detect | Observe Recognize Identify Privacy Masking Up to 24 areas 100.4m(329.4) 40.2m(131.9ft) 20.1m(65.9ft) 10m(32.8ft) Audio |
|---|
| PTZ | Compression G.711a/G.711mu/G.726/AAC |
|---|
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 5° ~ 90° Network |
|---|
| Manual Control Speed | Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s Ethernet RJ-45 (10XBase-T/100Base-TX) |
|---|
| Preset Speed | Pan: 80° /s; Tilt: 40° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
|---|
| 預置位 | 300 DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 8 Tour |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/speed adaptation |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 256GB Activate Preset/Tour if there is no command in the Idle Motion |
|---|
| specified period | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Management Software | Smart PSS, DSS, DMSS |
|---|
| Intelligence | Smart Phone IOS, Android Motion detection, Video tampering, Network Certifications |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, Storage anomaly CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | N/A UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | Mic in/Line in, Line out |
|---|
| Alarm I/O | N/A |
|---|
| Electrical | PFA107 PFB305W PFB220C |
|---|
| Mount Adapter | Wall Mount Ceiling Mount |
|---|
| 供電 | DC 12V/1.5A, PoE(802.3af) |
|---|
| 功耗 | 7.8W, 10.5W (IR on) Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| 防護等級 | IP66 DC12V/2A Power Adapter |
|---|
| Vandal Resistance | IK08 |
|---|
| Construction | Wall Mount Ceiling Mount |
|---|
| PFB305W+PFA107 | PFB220C+PFA107 |
|---|
| Casing | Metal |
|---|

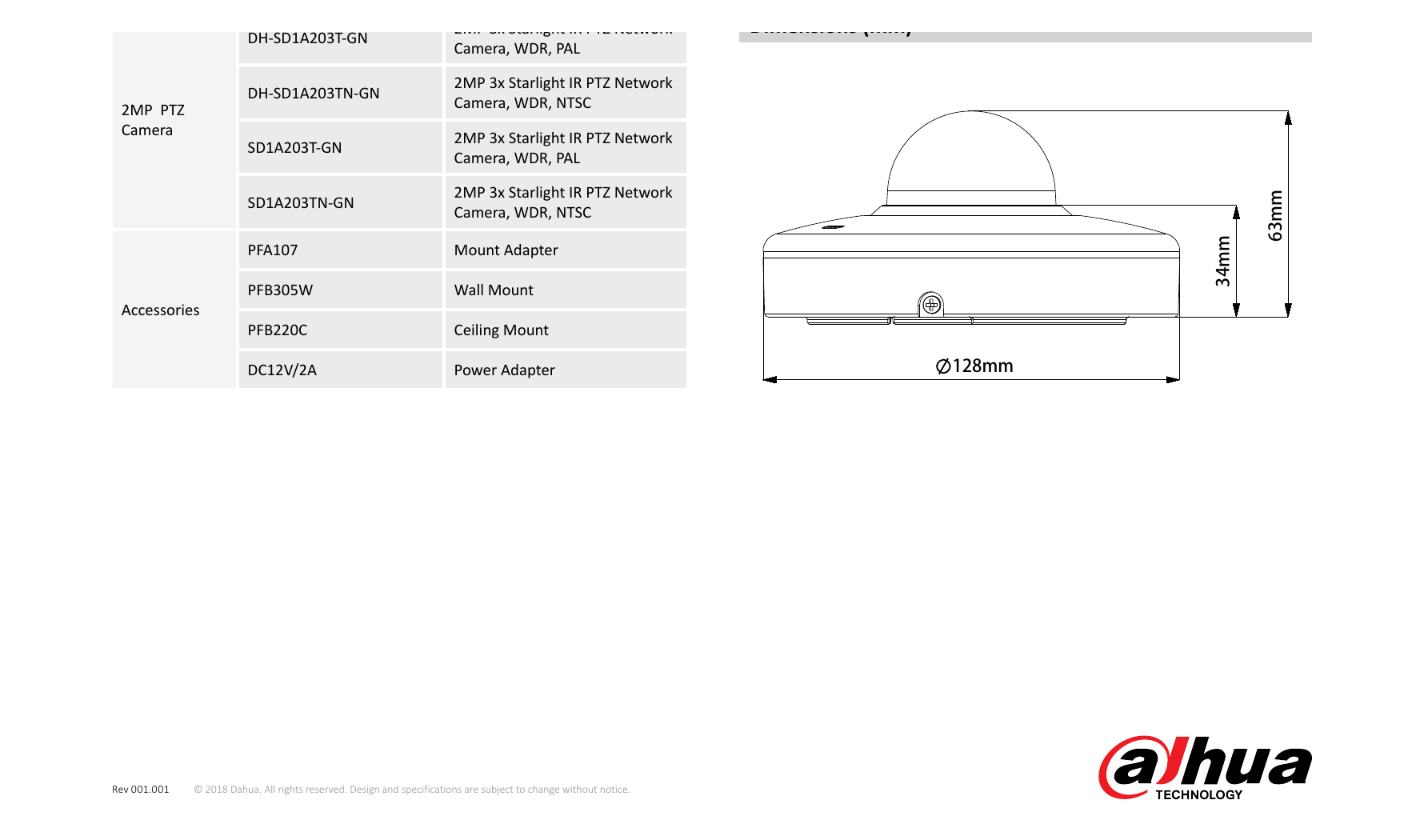

| 尺寸 | Φ128(mm) x 63(mm) |
|---|
| 淨重 | 0.49kg(1.08lb) |
|---|
| 毛重 | 0.73kg(1.6lb) Ordering Information |
|---|
| 類型 | Part Number Description DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Dimensions (mm) Camera, WDR, PAL 2MP 3x Starlight IR PTZ Network DH-SD1A203TN-GN 2MP PTZ Camera, WDR, NTSC |
|---|
| PFA107 | Mount Adapter |
|---|
| PFB305W | Wall Mount Accessories |
|---|
| PFB220C | Ceiling Mount |
|---|
| DC12V/2A | Power Adapter 128mm |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
