| Camera | capturing and quality first |
|---|
| 影像感測器 | 1/2.8" CMOS Supports people counting, calculating the number |
|---|
| People Counting | of people in the area, and queue management. Only |
|---|
| Pixel | 4 MP people counting supports the report function |
|---|
| 最大解像度 | 2560 (H) × 1440 (V) SMD Yes |
|---|
| ROM | 256 MB Active Deterrence |
|---|
| RAM | 512 MB White light warning; |
|---|
| Light Warning | Flash duration: 5 s–30 s; |
|---|
| Electronic Shutter Speed | 1 s–1/30,000 s Flash frequency: high, medium, low Offers 16 sound alarms and supports importing |
|---|
| Scanning System | Progressive custom sound alarms; Sound Warning Sound: high, medium, low; 0.005 lux@F1.8 (Color, 30 IRE); Play times: 1-10 |
|---|
| 最低照度 | 0.0005 lux@F1.8 (B/W, 30 IRE); 0 lux (illuminator on) |
|---|
| Illumination Distance | 20 m (65.62 ft) (IR) H.264H;H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Video Compression Stream);Smart H.264+ |
|---|
| Illuminator On/Off Control | Manual; SmartIR; Off |
|---|
| Streaming Capability | 3 streams |
|---|
| Illuminator Number | 3 (IR light) 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 |
|---|
| 鏡頭 | Resolution × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| 焦距 | 2.8 mm–12 mm Main stream: 4M/3M/1080P/1.3M/720P@(1-25/30 |
|---|
| Max. Aperture | F1.8–F2.7 fps) Video Frame Rate Sub stream 1: D1/VGA/CIF@(1-25/30 fps) |
|---|
| Field of View | H: 96.9°–31.6°; V: 51.4°–17.8°; D: 116.2°–36.4° Sub stream 2: 720P@(1-25/30 fps) |
|---|
| Optical Zoom | 4x Bit Rate Control CBR/VBR |
|---|
| Focus Control | Auto; semi-auto; manual H264: 96 Kbps–14,848 Kbps Video Bit Rate H265: 38 Kbps–8,960 Kbps |
|---|
| Close Focus Distance | 0.2 m–0.5 m (0.66 ft– 1.64 ft) ICR: Color; B/W; Auto; Day/Night Electronic: Color; B/W; Auto |
|---|
| Iris Control | Fixed iris |
|---|
| BLC | Yes |
|---|
| Detect | Observe Recognize Identify |
|---|
| DORI Distance | WDR 120 dB 240 m 94.8 m 48 m 24 m (787.40 ft) (311.02 ft) (157.48 ft) (78.74 ft) |
|---|
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; White Balance |
|---|
| Pan: 0° to 355°; | natural light; street lamp Tilt: 5° to 90° |
|---|
| Gain Control | Auto; manual; gain prio Pan: 0.1°/s–70°/s; Tilt: 0.1°/s–30°/s |
|---|
| Noise Reduction | 2D NR; 3D NR Pan: 0.1°/s–80°/s; Tilt: 0.1°/s–40°/s |
|---|
| Motion Detection | Yes |
|---|
| Preset | 300 |
|---|
| 感興趣區域 ROI | Yes |
|---|
| Tour | 8 (up to 32 presets per tour) |
|---|
| 防抖 | Electronic Image Stabilization (EIS) |
|---|
| 斷電記憶 | Yes |
|---|
| 除霧 | Electronic |
|---|
| Idle Motion | Preset;Tour |
|---|
| PTZ Protocol | DH-SD Digital Zoom 16× |
|---|
| Image Rotation | 180° Tripwire; intrusion; crossing fence detection; loitering Audio detection; abandoned/missing object; fast moving; |
|---|
| IVS (Perimeter Protection) | PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; parking detection; people gathering; human alarm Audio Compression |
|---|
| classification | G.722.1 www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|
| Network Port | RJ-45 (10/100 Base-T) Type Model Description |
|---|
| WiFi | Yes DH-SD1A404DB-GNY- 4MP 4x Starlight IR WizSense Network PTZ 4MP W-PV Camera |
|---|
| Wi-Fi Standard | IEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax WizSense |
|---|
| PTZ Camera | 4MP 4x Starlight IR WizSense Network PTZ SD1A404DB-GNY-W-PV |
|---|
| Wi-Fi Frequency Range | 2.4 GHz Camera |
|---|
| Wi-Fi Transmission Rate | 229 Mbps DC12V/2.0A Power Adapter FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RT PFA107 Mount Adapter |
|---|
| 網絡協議 | P;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;U |
|---|
| DP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP | PFB305W Wall Mount Bracket |
|---|
| Interoperability | CGI;SDK;ONVIF (Profile S&G&T) PFA120 Junction Box Accessories |
|---|
| 用戶管理 | 20 (total bandwidth: 64 M) (Optional) |
|---|
| PFA140 | Power Box |
|---|
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
|---|
| PFA151 | Corner Mount Bracket IE 9 and later versions; |
|---|
| Chrome 41 and later versions; | PFB220C Ceiling Mount Bracket Firefox 52 and later versions; |
|---|
| Safari 10 and later versions | PFA150 Pole Mount Bracket |
|---|
| Management Software | DMSS;DSS Pro |
|---|
| Mobile Client | iOS;Android Accessories CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN Optional: 50130-4; EN 55035 CE-LVD: EN 62368-1 CE-RED:EN301489; EN300328; EN IEC 62311 1 channel (LINE IN, bare wire,built-in mic (mutually |
|---|
| 音訊輸入 | DC12V/2.0A PFA107 PFB305W exclusive)) |
|---|
| Power Adapter | Mount Adapter Wall Mount Bracket 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
|---|
| Alarm Linkage | Capture; recording; send email; preset; tour Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
|---|
| Audio I/O | 1/1 PFA120 PFA140 PFA151 |
|---|
| Junction Box | Corner Mount Bracket Corner Mount |
|---|
| 供電 | Bracket |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| PFB220C | PFA150 |
|---|
| 工作濕度 | ≤ 95% Ceiling Mount Bracket Pole Mount Bracket TVS 6000 V lightning proof;IP66;IK08; surge protection; voltage transient protection |
|---|
| Product Dimensions | 65.4 mm × Φ128.0 mm (2.57" × 5.04") |
|---|
| 淨重 | 0.5 kg (1.10 lb) |
|---|

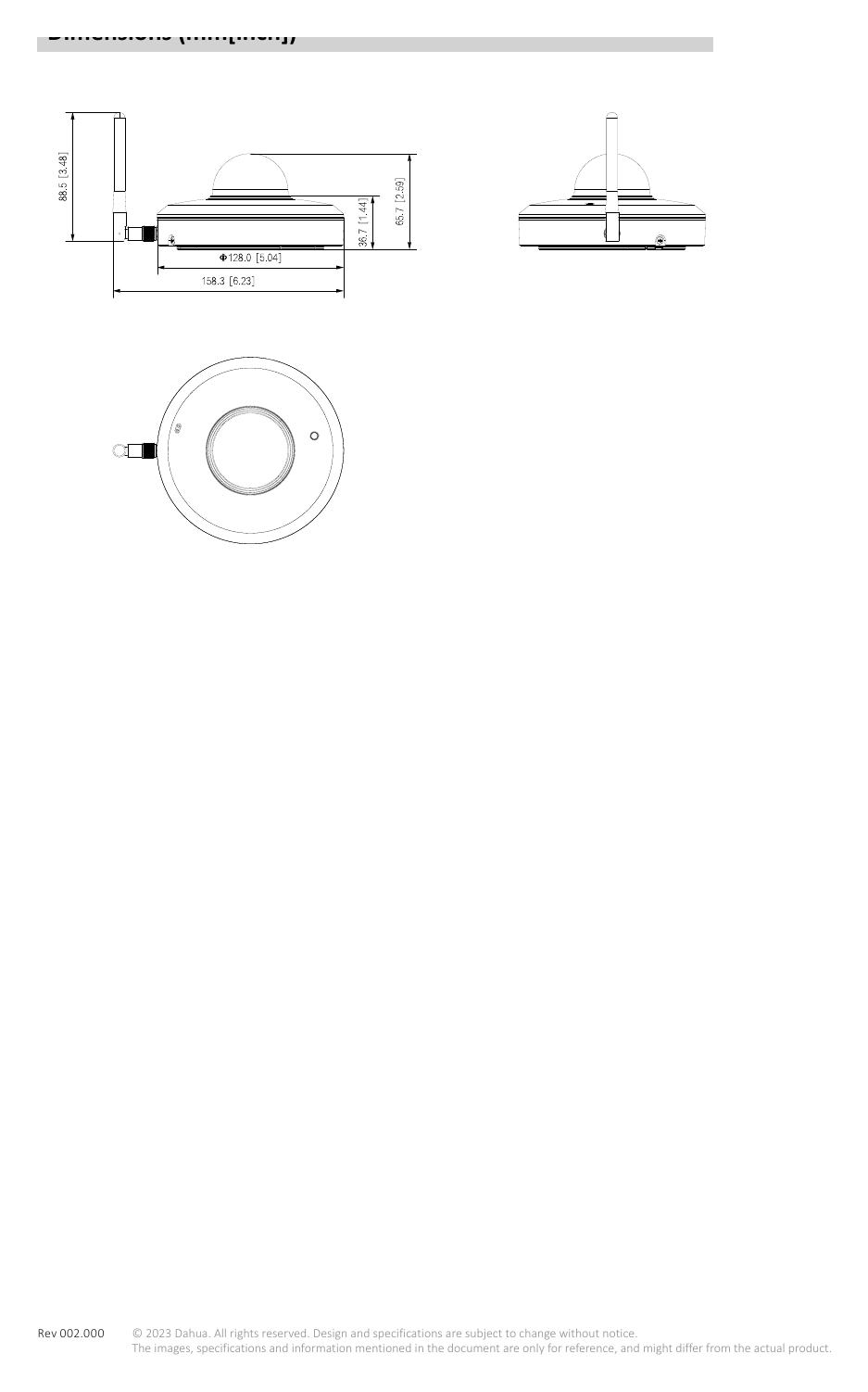

| 毛重 | 0.7 kg (1.54 lb) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
