| System | Interface 1 RJ-45 Ports (10/100/1000Mbps) |
|---|
| Main Processor | Quad-core embedded processor Ethernet Port 1 Independent 1000Mbps Ethernet Port |
|---|
| 操作系統 | Embedded LINUX 16 ports (IEEE802.3af/at) Max 25.5W for single port, 150W in total Audio and Video HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, |
|---|
| IP Camera Input | 16/32/64 Channel SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Network Function Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
|---|
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
|---|
| Optical Fiber Interface | N/A 2 HDMI (up to 3840 x 2160 , Different Source), Max. User Access 128 users 1 VGA |
|---|
| Smart Phone | iPhone, iPad, Android 3840 × 2160 , 1920 × 1080 , 1280 × 1024, Resolution 1280 × 720 , 1024 × 768 |
|---|
| Interoperability | ONVIF 2.4, CGI Conformant 1st Screen: 16CH: 1/4/8/9/16 32CH: 1/4/8/9/16/25/36 Multi-screen Display 64CH: 1/4/8/9/16/25/36/64 Storage 2nd Screen: 1/4/8/9/16 |
|---|
| Internal HDD | 8 SATA III Ports, Up to 8 TB capacity for each HDD Camera title, Time, Video loss, Camera lock, Motion OSD |
|---|
| detection, Recording | Single, Raid0/1/5/6/10 (Enterprise-level HDDs are HDD Mode recommended) Recording |
|---|
| eSATA | 1 eSATA |
|---|
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
|---|
| SAS | N/A 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, Resolution 720P, D1 etc. |
|---|
| Record Rate | 320Mbps |
|---|
| USB | 4 USB Ports (2 Rear USB 3.0 , 2 Front USB 2.0 ) |
|---|
| Bit Rate | 16Kbps ~ 20Mbps Per Channel RS232 1 Port, for PC Communication and Keyboard Manual, Schedule (Regular, MD(Motion Detection) , |
|---|
| Record Mode | RS485 1 Port, for PTZ Control Alarm, IVS), Stop Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 Electrical sec, Post-record: 10 ~ 300 sec |
|---|
| 供電 | Single, AC100V ~ 240V, 50 ~ 60 Hz Video Detection and Alarm Recording, PTZ, Tour, Alarm Out, Video Push, Email, Power Consumption <17.5W (Without HDD) Trigger Events Snapshot, Buzzer and Screen Tips Motion Detection, MD Zones: 396 (22 × 18), Video Environmental Video Detection Loss and Tampering |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa 16 Channel, Low Level Effective, Green Terminal Alarm input |
|---|
| 接口 | Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH 6 Channel, NO/NC Programmable, Green Terminal Relay Output |
|---|
| Playback and Backup | 2U, 440mm x 450.1mm x 95mm ; Dimensions (17.3" x 17.7" x 3.7") |
|---|

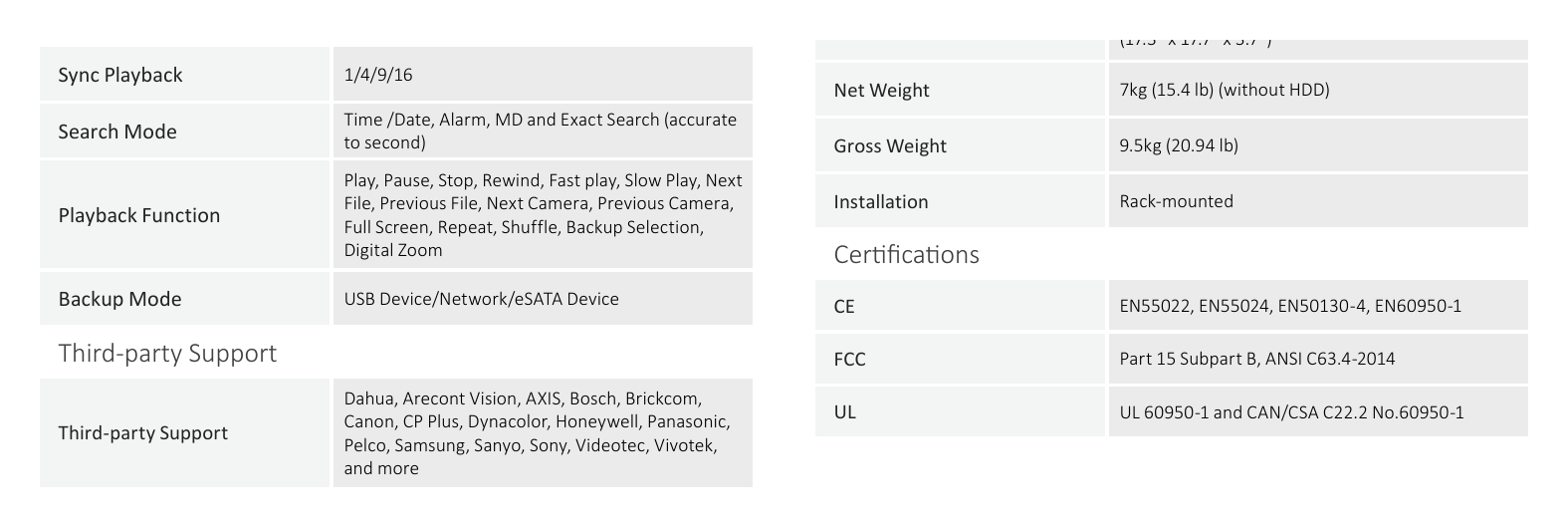

| Sync Playback | 1/4/9/16 |
|---|
| 淨重 | 7kg (15.4 lb) (without HDD) Time /Date, Alarm, MD and Exact Search (accurate |
|---|
| Search Mode | to second) Gross Weight 9.5kg (20.94 lb) Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Installation Rack-mounted |
|---|
| Playback Function | Full Screen, Repeat, Shuffle, Backup Selection, |
|---|
| Digital Zoom | Certifications |
|---|
| Backup Mode | USB Device/Network/eSATA Device CE EN55022, EN55024, EN50130-4, EN60950-1 |
|---|
| Third-party Support | FCC Part 15 Subpart B, ANSI C63.4-2014 Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, UL UL 60950-1 and CAN/CSA C22.2 No.60950-1 Third-party Support Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more www.dahuasecurity.com |
|---|
| Ordering Information | Dimensions (mm) |
|---|
| 類型 | Part Number Description 16 Channel DHI-NVR5816-16P- 16 Channel 2U 16PoE 4K&H.265 Pro |
|---|
| NVR | 4KS2 Network Video Recorder 32 Channel DHI-NVR5832-16P- 32 Channel 2U 16PoE 4K&H.265 Pro |
|---|
| ESS1504C | with Technical Support for HDD capacity & compatibility) Accessories 8 HDDs eSATA Storage (Please confirm |
|---|
| ESS1508C | with Technical Support for HDD capacity & compatibility) Accessories ESS1504C ESS1508C |
|---|
| Rev 001.001 | © 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice www.dahuasecurity.com |
|---|
