| IP66 | Vandal-proof System Overview |
|---|
| Functions | Interoperability The camera conforms to the ONVIF (Open Network Video Interface |
|---|
| Smart H.264+ | Forum) and PSIA (Physical Security Interoperability Alliance) specifi- www.dahuasecurity.com |
|---|
| Technical Specification | Bit Rate Control CBR/VBR |
|---|
| Camera | Bit Rate H.264+/H.264: 448K ~ 8192Kbps |
|---|
| 影像感測器 | 1/2.8” CMOS Day/Night Auto(ICR) / Color / B/W |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Backlight Compensation BLC / HLC / DWDR |
|---|
| RAM/ROM | 256M/128M White Balance Auto,ATW,Indoor,Outdoor,Manual |
|---|
| Scanning System | Progressive Gain Control Auto / Manual |
|---|
| Minimum Illumination | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 Noise Reduction Ultra DNR (2D/3D) |
|---|
| S/N Ratio | More than 50dB Motion Detetion Support |
|---|
| IR Distance | N/A Region of Interest N/A |
|---|
| IR On/Off Control | N/A Electronic Image N/A Stabilization (EIS) |
|---|
| IR LEDs | N/A |
|---|
| 除霧 | Support |
|---|
| Digital Zoom | 16x |
|---|
| 焦距 | 3mm~9mm |
|---|
| Flip | 180° |
|---|
| Max. Aperture | F1.6 ~ F2.7 |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Angle of View | H: 98.4° ~ 29.7° |
|---|
| Optical Zoom | 3x |
|---|
| Compression | G.711a/G.711u(32kbps)/PCM(128kbps) |
|---|
| Focus Control | Auto/Manual |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, |
|---|
| Protocol | ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180° DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Manual Control Speed | Pan: 0.1° ~240° /s; Tilt: 0.1° ~160° /s Interoperability ONVIF, PSIA, CGI |
|---|
| Preset Speed | Pan: 240° /s; Tilt: 160° /s Streaming Method Unicast / Multicast |
|---|
| 預置位 | 300 Max. User Access 20 users |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 128GB |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | Management Software Smart PSS, DSS Activate Preset/ Scan/ Tour/ Pattern if there is no Smart Phone IOS, Android Idle Motion command in the specified period Certifications |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
|---|
| Auto Tracking | N/A |
|---|
| IVS | N/A |
|---|
| Video Interface | N/A |
|---|
| RS485 | N/A |
|---|
| Audio I/O | 1/1 |
|---|
| Streaming Capability | 2 Streams |
|---|
| Alarm I/O | 2/1 1080P(1920×1080)/720P(1280×720)/ Resolution |
|---|
| D1(704×576/704×480)/CIF(352×288/352×240) | Electrical Main stream: 1080P/D1(1 ~ 25/30fps), 720P(1~50/60fps) Power Supply DC12V/1.5A, PoE(802.3af) Frame Rate |
|---|
| Sub stream: D1/CIF(1 ~ 25/30fps) | Power Consumption 10W www.dahuasecurity.com |
|---|
| Environmental | Ceiling Mount Juncon Mount |
|---|
| PFA101 + PFB300C | PFA101 + PFB302S |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ160(mm) x 132(mm) |
|---|
| 淨重 | 1.3kg(2.87lb) Pole Mount Corner Mount |
|---|
| PFA101 + PFB302S + PFA150 | PFA101 + PFB302S + PFA151 |
|---|
| 毛重 | 1.7kg(3.75lb) Ordering Information |
|---|
| 類型 | Part Number Description 2MP 3x PTZ Network Camera, DH-SD32203S-HN PAL 2MP 3x PTZ Network Camera, DH-SD32203SN-HN 2MP PTZ NTSC |
|---|

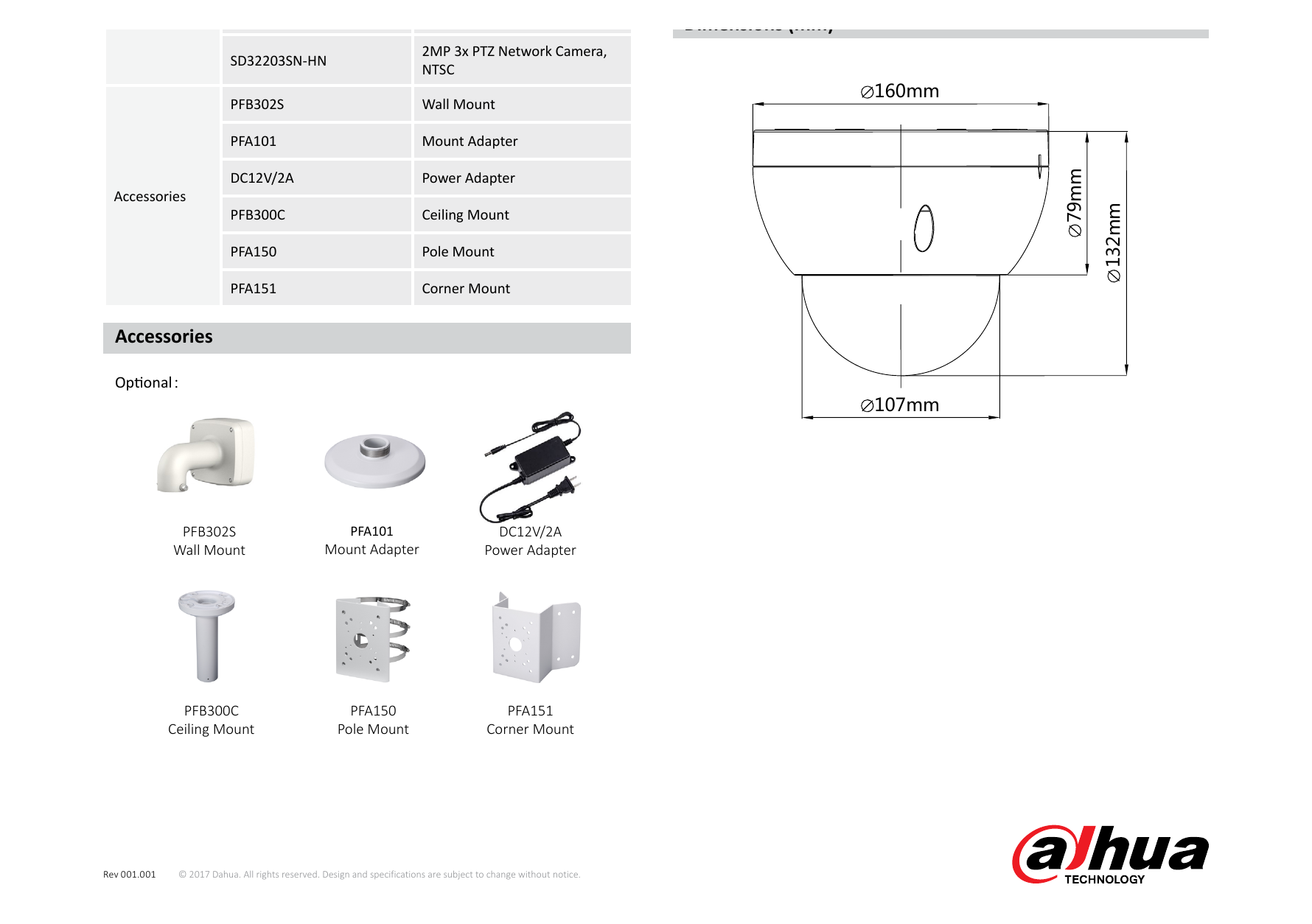

| PAL | Dimensions (mm) 2MP 3x PTZ Network Camera, SD32203SN-HN NTSC 160mm |
|---|
| PFB302S | Wall Mount |
|---|
| PFA101 | Mount Adapter |
|---|
| DC12V/2A | Power Adapter 79mm Accessories 132mm |
|---|
| PFB300C | Ceiling Mount |
|---|
| PFA150 | Pole Mount |
|---|
| PFA151 | Corner Mount Accessories Optional： 107mm |
|---|
| Wall Mount | Mount Adapter Power Adapter |
|---|
| Ceiling Mount | Pole Mount Corner Mount |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
