| Camera | Video |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Compression H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream) |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Streaming Capability 3 Streams |
|---|
| RAM/ROM | 1024M/128M 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 1080P/720P(1 ~ 25/30fps) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | N/A |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR On/Off Control | N/A |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR LEDs | N/A |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR(120dB) |
|---|
| 焦距 | 5.3mm~64mm |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| Gain Control | Auto / Manual |
|---|
| Angle of View | H: 58.2° ~ 4.8° |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 12x |
|---|
| Motion Detection | Support |
|---|
| Focus Control | Auto/Manual |
|---|
| Region of Interest | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization N/A |
|---|
| DORI Distance | (EIS) |
|---|
| 除霧 | Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Digital Zoom 16x criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Flip | 180° |
|---|
| Detect | Observe Recognize Identify |
|---|
| Privacy Masking | Up to 24 areas 883m(2897ft) 353m(1158ft) 177m(581ft) 88m(289ft) |
|---|
| Compression | G.711a/G.711Mu/G.726/AAC |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180° |
|---|
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s |
|---|
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
|---|
| Preset Speed | Pan: 300° /s; Tilt: 200° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| 預置位 | 300 Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Streaming Method | Unicast / Multicast Auto restore to previous PTZ and lens status after Power up Action power failure |
|---|
| Max. User Access | 20 users Activate Preset/ Scan/ Tour/ Pattern if there is no |
|---|
| Idle Motion | NAS (Network Attached Storage),Local PC for |
|---|
| command in the specified period | Edge Storage instant recording, Micro SD card 256GB |
|---|
| Protocol | DH-SD |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, DMSS Motion detection, Video tampering, Network |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, Smart Phone IOS, Android Storage anomaly Certifications |
|---|
| Auto Tracking | N/A |
|---|
| IVS | Tripwire, Intrusion,Abandoned/Missing CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Dimensions (mm) |
|---|
| Video Interface | N/A |
|---|
| RS485 | N/A mm |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 2/1 Electrical |
|---|
| 供電 | DC 24V/2.5A(±25%), PoE+(802.3at) |
|---|
| 功耗 | 12W Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH mm |
|---|
| 防護等級 | N/A mm |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ198(mm)×158(mm) |
|---|
| 淨重 | 2.3kg(5.07lb) |
|---|

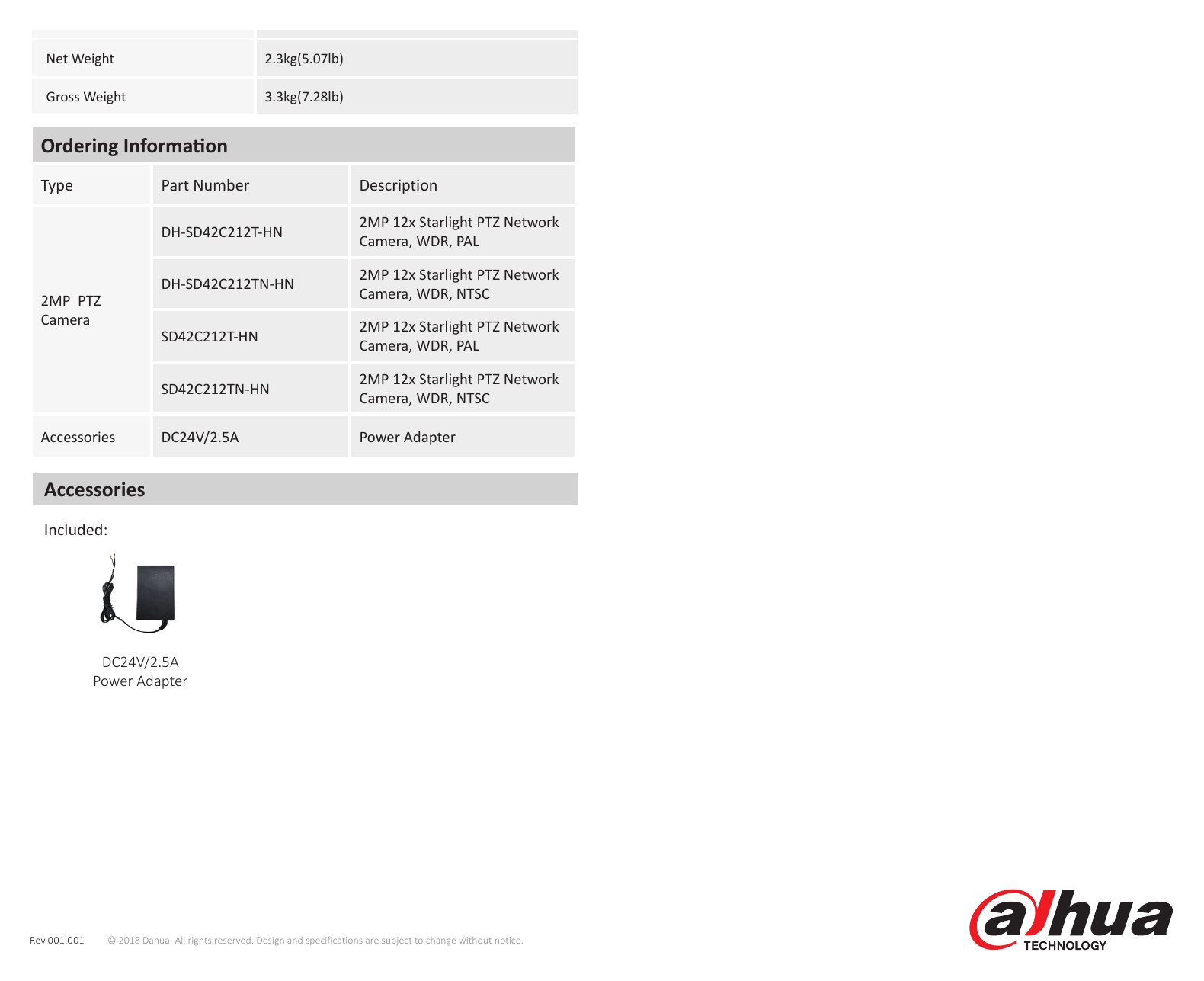

| 毛重 | 3.3kg(7.28lb) Ordering Information |
|---|

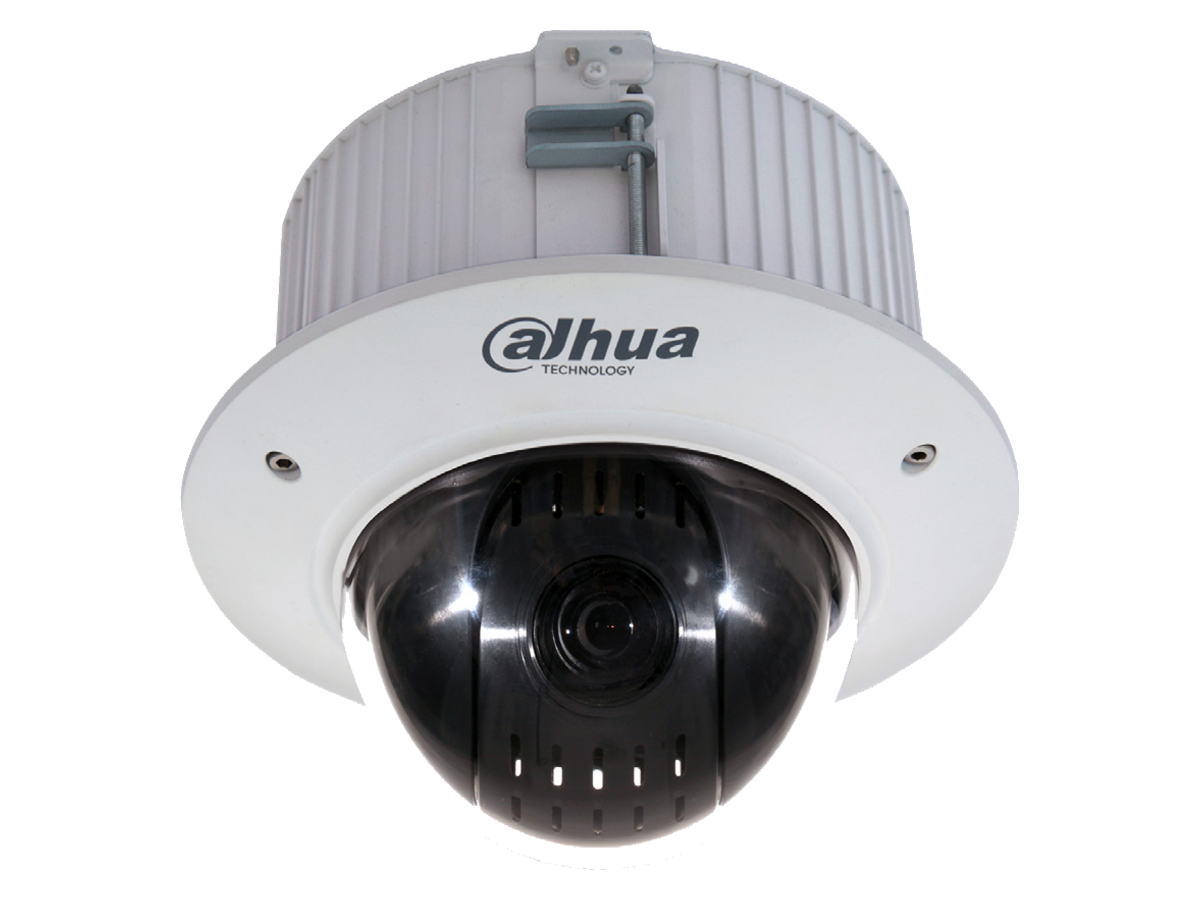

| 類型 | Part Number Description 2MP 12x Starlight PTZ Network DH-SD42C212T-HN Camera, WDR, PAL 2MP 12x Starlight PTZ Network DH-SD42C212TN-HN 2MP PTZ Camera, WDR, NTSC |
|---|
| Accessories | DC24V/2.5A Power Adapter Accessories Included: DC24V/2.5A Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
