| of various indoor and outdoor facilities. | providing clear human and vehicle details. Smart H.265+ Smart H.265+ Codec reduces bit rate and storage requirements by up to |
|---|
| Internal SSD | 90%, outranking standard H.264 video compression and eliminating the and UTP, max. 700 m for 4K/4MP, 800 m for 1080P and 1200 m for 720p. www.dahuasecurity.com |
|---|
| Technical Specification | Recording Playback |
|---|
| System | Record Mode General; motion detection; intelligent; alarm |
|---|
| Main Processor | Industrial-grade processor Recording Playback 1/4/9 |
|---|
| 操作系統 | Embedded Linux Backup Method USB device and network |
|---|
| Operating Interface | Web; Local GUI Instant playback, general playback, event playback, tag Playback Mode playback, smart playback (motion detection) Alarm 4-channel: Secondary filtering for human and motor Motion detection; camera external alarm; network |
|---|
| SMD Plus by Recorder | vehicle, reducing false alarms caused by leaves, rain and General Alarm |
|---|
| lighting condition change | alarm; PIR alarm Error (no disk, disk error, low space, low quota space; |
|---|
| Audio and Video | Anomaly Alarm network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
|---|
| Analog Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
|---|
| Intelligent Alarm | SMD Plus 1. CVI: 1080p@25/30 fps, 720p@25/30 fps. |
|---|
| Camera Input | 2. TVI: 1080p@25/30 fps, 720p@25/30 fps. Record; snapshot (panoramic); IPC external alarm output; 3. AHD: 1080p@25/30 fps, 720p@25/30 fps. Alarm Linkage voice prompt; buzzer; log; preset; email Up to 10 channels of IPC access. 2 IP channels by default + 8 channels (analog channels Ports are converted to IP channels) 1-channel RCA |
|---|
| IP Camera Input | incoming bandwidth: 40 Mbps, recording bandwidth: 40 Audio Input |
|---|
| Mbps and outgoing bandwidth: 40 Mbps | 8-channel BNC (Coaxial Audio) *After IP channels are added beyond the existing |
|---|
| 音訊輸出 | 1-channel RCA channels, the AI Function (SMD) will be disabled. |
|---|
| 主碼流 | Two-way Talk Yes (share the same audio input with the first channel) 8-channel: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@ 1 SSD: 512 GB (replaceable with 256 GB or 1 TB) |
|---|
| Encoding Capacity | HDD Interface (1 fps–25/30 fps) Stores for 11 days under default settings. Sub stream: 8-channel: CIF@(1 fps–7 fps) |
|---|
| USB | 2 (2 rear USB 2.0 ports) |
|---|
| HDMI | 1 |
|---|
| Dual-stream | Yes |
|---|
| PAL: 1 fps/s–25 fps/s | VGA 1 NTSC: 1 fps/s–30 fps/s |
|---|
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
|---|
| 視頻碼率 | 32 kbps–4096 kbps |
|---|
| Audio Sampling | 8 kHz, 16 bit |
|---|
| 供電 | 12 VDC, 1.5 A |
|---|
| 音訊碼率 | 64 kbps |
|---|
| 功耗 | <7 W (with SSD) 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Net Weight 0.62 kg (1.37 lb) When IP extension mode not enabled: 1/4/8/9 |
|---|
| Multi-screen Display | Gross Weight 1.13 kg (2.49 lb) When IP extension mode enabled: 1/4/8/9/16 |
|---|
| Third-party Camera | 198.3 mm × 202.9 mm × 41.5 mm (7.81'' ×7.99'' × 1.63'') ONVIF; Panasonic; Sony; Axis; Arecont; Samsung Product Dimensions |
|---|
| Access | (W × D × H) 332.0 mm × 64.0 mm × 240.0 mm (13.08'' × 2.52'' × |
|---|
| Compression Standard | Packaging Dimensions 9.45'') (W × D × H) |
|---|
| 視頻壓縮 | AI Coding; H.265+; H.265; H.264+; H.264 |
|---|
| 工作溫度 | –10 °C to +45 °C (+14 °F to +113 °F) |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM |
|---|
| 工作濕度 | 0%–90% (RH) |
|---|
| Network | Installation Desktop HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; UDP; CE: CE-LVD: EN 60950-1/IEC 60950-1 SMTP; NTP; DHCP; DNS; DDNS; P2P; UPnP; IP Filter;FTP; |
|---|
| 網絡協議 | Certifications CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN Alarm Server; IP Search (Supports Dahua IP camera, DVR, 50130, EN 55024 |
|---|
| NVS, etc.) | FCC: Part 15 Subpart B |
|---|
| Mobile Phone Access | iOS; Android |
|---|
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK Ordering Information Chrome |
|---|
| 類型 | Model Description |
|---|
| Browser | IE 9 or later Firefox 8 Channels 8 CH Penta-brid 1080N/720P Cooper 1U DH-XVR1B08-I |
|---|
| Network Mode | Single-address mode WizSense XVR 1SSD 512G Digital Video Recorder www.dahuasecurity.com |
|---|

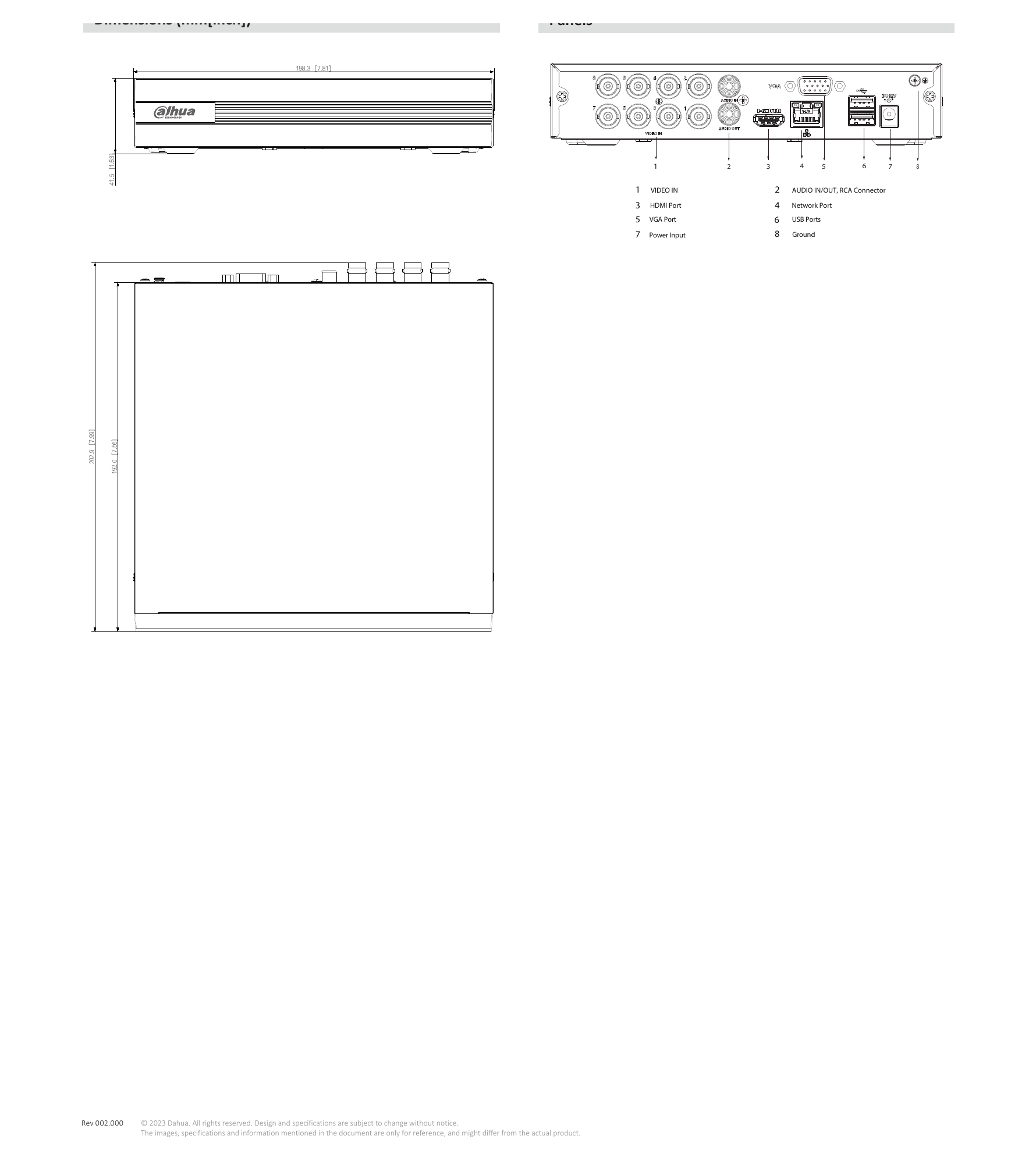

| Dimensions (mm[inch]) | Panels 198.3 [7.81] 41.5 [1.63] 1 2 3 4 5 6 7 8 1 VIDEO IN 2 AUDIO IN/OUT, RCA Connector 3 HDMI Port 4 Network Port 5 VGA Port 6 USB Ports 7 Power Input 8 Ground 202.9 [7.99] 192.0 [7.56] |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
