| of various indoor and outdoor facilities. | and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p. www.dahuasecurity.com |
|---|
| Technical Specification | Backup Method USB Device/Network |
|---|
| System | Playback Mode Instant playback, general playback, event playback, tag playback, smart playback |
|---|
| Main Processor | Embedded processor Alarm |
|---|
| 操作系統 | Embedded Linux |
|---|
| General Alarm | Motion detection, Video Loss, tampering |
|---|
| SMD Plus | No disk, disk error, low space, offline, ip conflict, MAC Anomaly Alarm Full-channel SMD Plus (AI by recorder), secondary conflict filtering for human and motor vehicle SMD Plus, reducing Record, snapshot (panoramic), IPC external alarm false alarms caused by leaves, rain and lighting condition Alarm Linkage output, access controller, voice prompt, buzzer, log, |
|---|
| change | preset, email |
|---|
| Audio and Video | Ports 16 channels, BNC: adaptive access by default; HDCVI, 1, RCA (external) |
|---|
| Analog Camera Input | Audio Input AHD, TVI and CVBS access can be configured. 16, BNC (coaxial) 1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. Audio Output 1, RCA |
|---|
| Camera Input | 2. TVI: 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fps. 3. AHD: 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 Two-way Talk Yes (share the same audio input with the first channel) fps. 1 SATA Port,up to 16TB for a single HDD, the maximum HDD Interface |
|---|
| IP Camera Input | 16+8 channels, each channel up to 6MP HDD capacity varies with environment temperature All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 USB 2 USB Ports (2 USB 2.0) fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps) |
|---|
| HDMI | 1 |
|---|
| Dual-stream | Supported (D1/CIF (1 fps–15 fps)). |
|---|
| VGA | 1 PAL: 1 fps–25 fps. |
|---|
| NTSC: 1 fps–30 fps. | Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
|---|
| 視頻碼率 | 32 Kbps–6144 Kbps Per Channel |
|---|
| Audio Sampling | 8 KHz, 16 bit Per Channel |
|---|
| 供電 | DC12V, 2A |
|---|
| 音訊碼率 | 64 Kbps Per Channel |
|---|
| 功耗 | Lower than 12 W |
|---|
| Bit Rate Type | Video stream and composite stream. |
|---|
| 淨重 | 0.93 kg (2.05 lb) 1 HDMI, 1 VGA |
|---|
| VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 | Gross Weight 1.43 kg (3.16 lb) HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (W × D × Product Dimensions H) (10.24'' × 9.11'' × 1.87'') When IP extension mode not enabled: 1/4/8/9/16 |
|---|
| Multi-screen Display | 333.0 mm × 89.0 mm × 315.0 mm (L × W × H) When IP extension mode enabled: 1/4/8/9/16/25 Packaging Dimensions 13.11" × 3.50" × 12.40" (L× W × H) |
|---|
| Third-party Camera | Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, |
|---|
| Access | Canon, Samsung Operating Temperature –10 °C to +45 °C (+14 °F to +113 °F) |
|---|
| Compression Standard | Operating Humidity 10%–90% |
|---|
| 視頻壓縮 | AI Coding/H.265+/H.265/H.264+/H.264 Installation Desktop |
|---|
| 音訊壓縮 | G.711A/G.711u/PCM CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN Certifications |
|---|
| Network | 50130, EN 55024 FCC: Part 15 Subpart B HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
|---|
| Mobile Phone Access | iPhone, iPad, Android |
|---|
| Interoperability | ONVIF 16.12, CGI Conformant |
|---|
| Browser | Chrome, IE9 or above, Firefox |
|---|
| Network Mode | Single-address mode Manual, Schedule (General, Continuous), MD (Video |
|---|
| Record Mode | detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|---|
| Recording Playback | 1/4/9/16 www.dahuasecurity.com |
|---|
| Ordering Information | Panels |
|---|
| 類型 | Model Description 16 Channels Compact 1U DIGITAL VIDEO 2 8 DH-XVR1B16H-I |
|---|

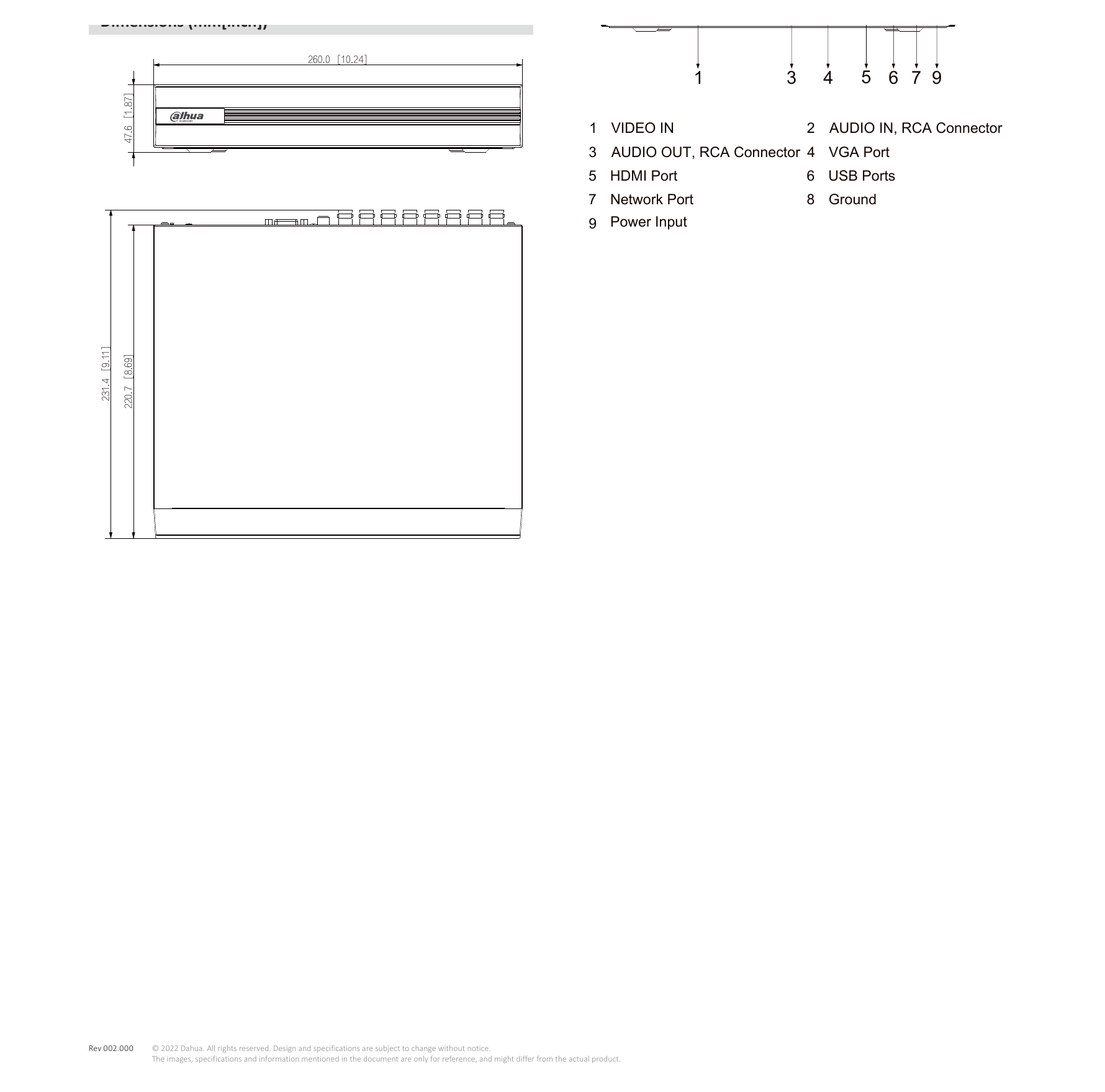

| WizSense XVR | RECORDER Dimensions (mm[inch]) mm[inch] 260.0 [10.24] 1 3 4 5 6 7 9 47.6 [1.87] 1 VIDEO IN 2 AUDIO IN, RCA Connector 3 AUDIO OUT, RCA Connector 4 VGA Port 5 HDMI Port 6 USB Ports 7 Network Port 8 Ground 9 Power Input 231.4 [9.11] 220.7 [8.69] |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
