| SMD Plus | need to invest in a new camera. |
|---|
| effective and accurate alarm. | and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p. |
|---|
| Smart Dual Illuminators | Audio over Coax www.dahuasecurity.com |
|---|
| Technical Specification | Recording Playback 1/4 |
|---|
| System | Backup Method USB device and network |
|---|
| Main Processor | Industrial-grade processor Instant playback, general playback, event playback, tag Playback Mode playback |
|---|
| 操作系統 | Embedded Linux Alarm |
|---|
| Operating Interface | Web; Local GUI |
|---|
| General Alarm | Motion detection, video loss, tampering |
|---|
| SMD Plus by Recorder | vehicle , reducing false alarms caused by leaves, rain and Record, snapshot (panoramic), IPC external alarm output, |
|---|
| lighting condition change | Alarm Linkage access controller, voice prompt, buzzer, log, preset, email |
|---|
| Audio and Video | Ports 4 channels, BNC: adaptive access by default; HDCVI, AHD, 1-channel RCA |
|---|
| Analog Camera Input | Audio Input |
|---|
| TVI and CVBS access can be configured. | 4-channel BNC (Coaxial Audio) 1. CVI: 1080p@ 25/30 fps, 720p@25/30 fps Audio Output 1-channel RCA 2. TVI: 1080p@ 25/30 fps, 720p@25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@25/30 fps |
|---|
| Two-way Talk | Yes (share the same audio input with the first channel) 4. CVBS: PAL/NTSC |
|---|
| Up to 5 channels of IPC access | 1 SATA port, up to 16 TB. The maximum HDD capacity HDD Interface 1 IP channels by default + 4 channels (analog channels varies with environment temperature. are converted to IP channels) |
|---|
| IP Camera Input | incoming bandwidth: 32 Mbps, recording bandwidth: 32 USB 2 USB ports (USB 2.0) Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing HDMI 1 channels, the AI Function (SMD) will be disabled. |
|---|
| VGA | 1 Main Stream: All channels 1080N/720p/960H/D1/CIF/(1 fps–25/30 fps) Network Port 1 (10/100 Mbps Ethernet port, RJ-45) Sub stream: CIF/(1 fps–15 fps) |
|---|
| Dual-stream | Yes Power Supply 12 VDC, 1.5 A |
|---|
| 視頻碼率 | 32 kbps–6144 kbps Power Consumption <4W |
|---|
| Audio Sampling | 8 kHz, 16 bit Net Weight 0.47 kg (1.03lb) |
|---|
| 音訊碼率 | 64 kbps Gross Weight 1.04 kg (2.30 lb) 1 HDMI, 1 VGA 204.6 mm × 210.9 mm × 45.6 mm (8.06'' × 8.30'' × 1.80'') |
|---|
| Video Output | Product Dimensions HDMI/VGA : 1920 × 1080, 1280 × 1024, 1280 × 720 (W × D × H) |
|---|
| When IP extension mode not enabled: 1/4 | 256.0 mm × 330.0 mm × 101.0 mm (10.08" × 12.99" |
|---|
| Multi-screen Display | Packaging Dimensions |
|---|
| When IP extension mode enabled: 1/4/6 | ×3.98") (W × D × H) |
|---|
| Third-party Camera | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; |
|---|
| 工作溫度 | –10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| Access | Samsung |
|---|
| 工作濕度 | 0%–90% (RH) |
|---|
| 視頻壓縮 | AI Coding; H.265+; H.265; H.264+; H.264 Installation Desktop FCC: Part 15 Subpart B |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM CE: CE-LVD: EN 60950-1/IEC 60950-1 Certifications CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; |
|---|
| Network | EN50130; EN 55024 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
|---|
| Mobile Phone Access | iOS, Android Ordering Information |
|---|
| Interoperability | ONVIF 21.06; CGI Conformant Type Model Description |
|---|

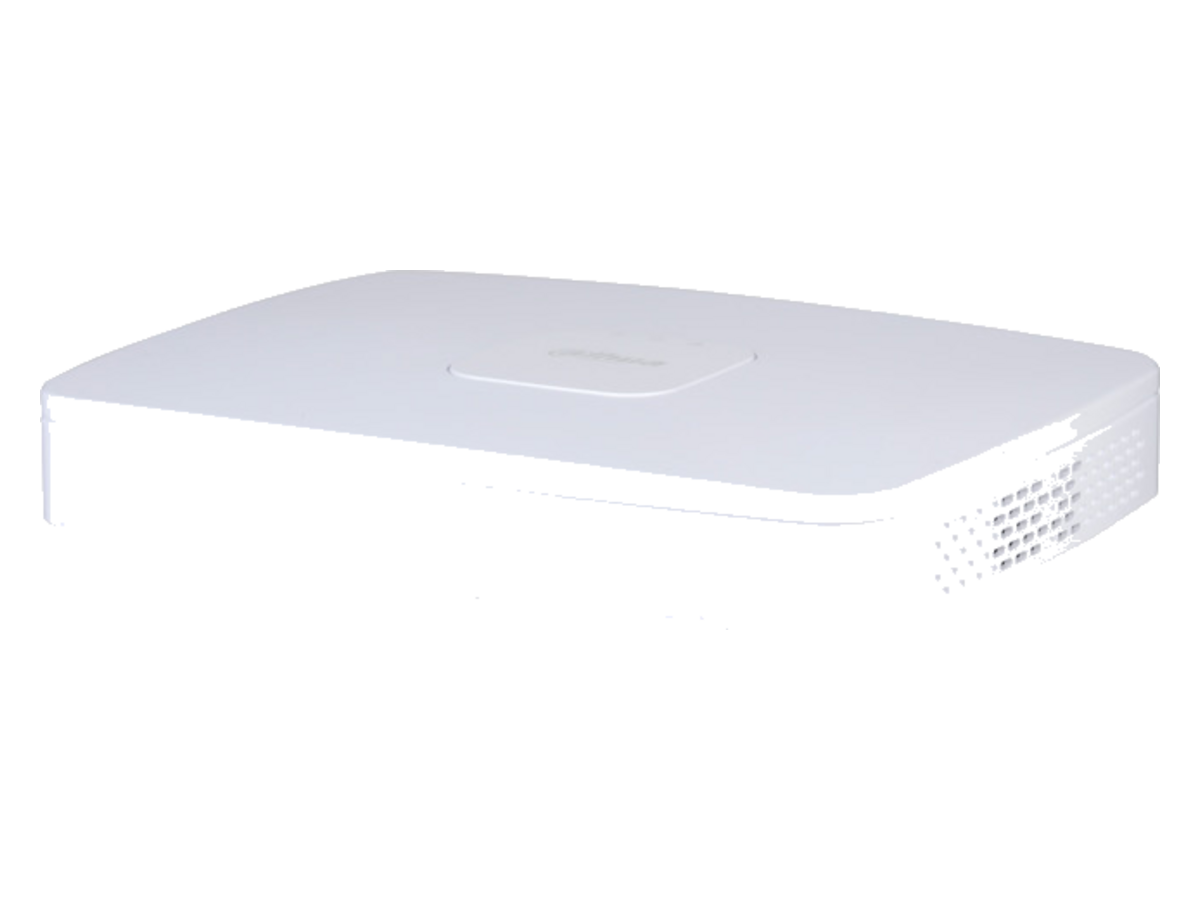

| Chrome | 4 Channels Smart 1U WizSense Digital Video DH-XVR4104C-I |
|---|
| Browser | IE9 or later WizSense XVR Recorder Firefox |
|---|
| Network Mode | Single-address mode |
|---|
| Record Mode | General, motion detection,alarm www.dahuasecurity.com |
|---|

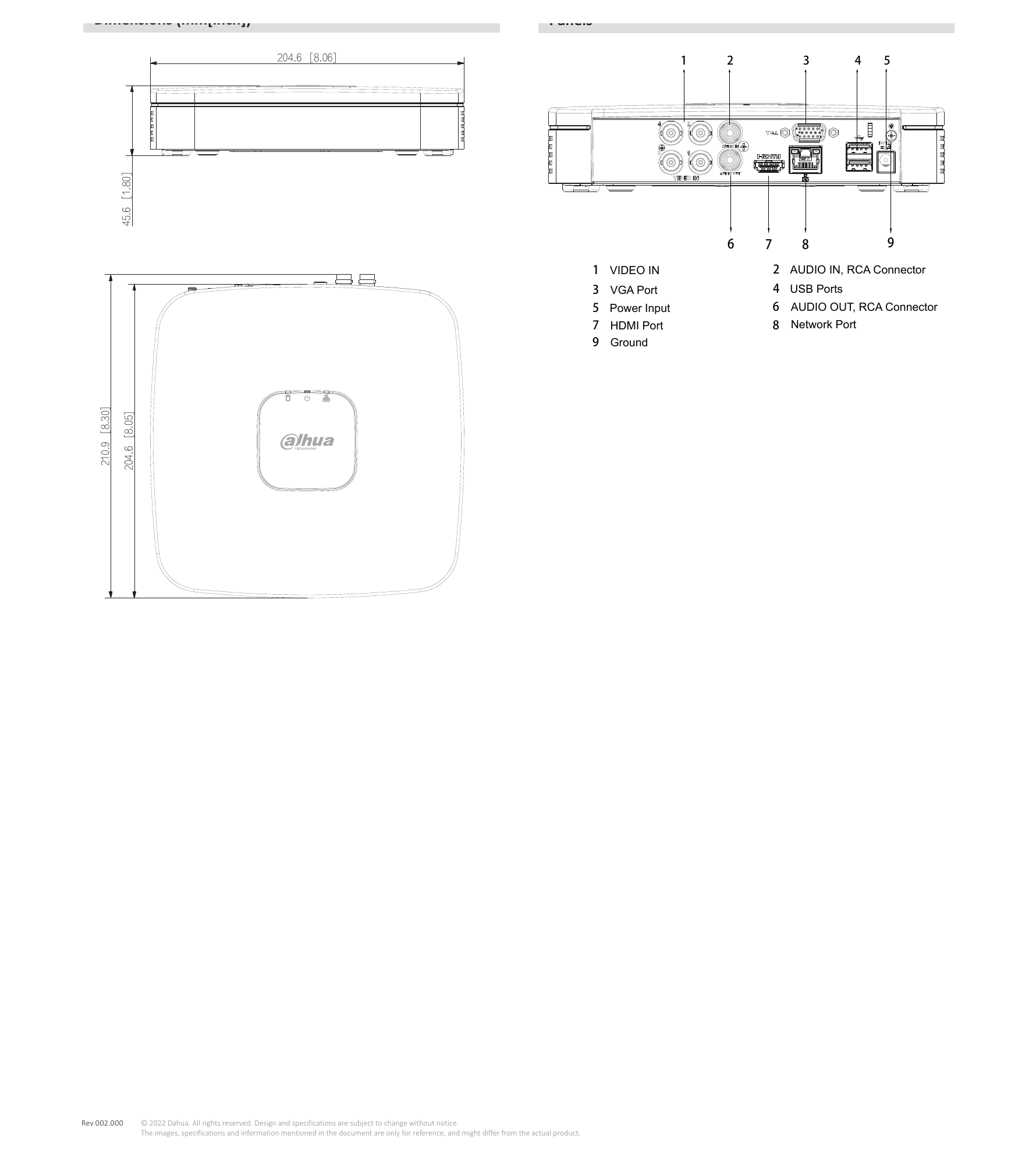

| Dimensions (mm[inch]) | Panels |
|---|
| <> | mm[inch] 1 2 3 4 5 <> 6 7 8 9 1 VIDEO IN 2 AUDIO IN, RCA Connector 3 VGA Port 4 USB Ports 5 Power Input 6 AUDIO OUT, RCA Connector 7 HDMI Port 8 Network Port 9 Ground <> <> |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
