| System | Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|---|
| Main Processor | Embedded Processor Motion Detection, MD Zones: 396 (22 × 18), Video Loss, |
|---|
| 操作系統 | Embedded LINUX Video Detection Tampering and Diagnosis |
|---|
| Video and Audio | Alarm input N/A |
|---|
| Relay Output | N/A |
|---|
| Analog Camera Input | 8 Channel, BNC 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, Playback and Backup HDCVI Camera 720P@25/30fps |
|---|
| Playback | 1/4/9 |
|---|
| AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps Time /Date, Alarm, MD and Exact Search (accurate to Search Mode |
|---|
| TVI Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps second) |
|---|
| CVBS Camera | PAL/NTSC Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, |
|---|
| Playback Function | Previous File, Next Camera, Previous Camera, Full Screen, |
|---|
| PoC Camera Input | Supports HDCVI PoC Cameras Repeat, Shuffle, Backup Selection, Digital Zoom |
|---|
| IP Camera Input | 8+4 Channel, each channel up to 8MP |
|---|
| Backup Mode | USB Device/Network |
|---|
| Audio In/Out | 1/1, RCA Storage |
|---|
| Two-way Talk | Reuse audio in/Out, RCA |
|---|
| Internal HDD | 1 SATA Port, up to 10TB capacity Recording |
|---|
| eSATA | N/A |
|---|
| Compression | H.265+/H.265/H.264+/H.264 |
|---|
| 解像度 | 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
|---|
| USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/ RS232 N/A |
|---|
| Record Rate | CIF(1~25/30fps) |
|---|
| RS485 | 1 Port, for PTZ Control Sub steram:960H(1~15fps); D1/CIF(1~25/30fps) Electrical |
|---|
| Bit Rate | 32Kbps ~ 8192Kbps Per Channel |
|---|
| 供電 | DC53V Manual, Schedule (General, Continuous), MD (Video detection: Record Mode Motion Detection, Video Loss, Tampering), Alarm, Stop Power Consumption <15W (Without HDD) |
|---|
| Record Interval | G.711A, G.711U, PCM Max. Power Output < 48W |
|---|
| 音訊壓縮 | AAC(only for the 1st channel), G.711A, G.711U, PCM Construction |
|---|
| 尺寸 | Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
|---|
| Audio Sample Rate | 8KHz, 16 bit Per Channel Device with PFH101 |
|---|
| 音訊碼率 | 64Kbps Per Channel 483mmx281mmx56mm (19.0"x11.1"x2.2") Rack Mount Tray |
|---|
| Display | Net Weight 1.35kg (2.98lb) (without HDD) |
|---|
| 接口 | 1 HDMI, 1 VGA Gross Weight 2.37kg (5.23lb) HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, Installation Desktop installation |
|---|
| VGA: 1920×1080, 1280×1024, 1280×720 | Environmental When IP extension mode not enabled:1/4/8/9 Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH Multi-screen Display When IP extension mode enabled:1/4/8/9/16 |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH Camera title, Time, Video loss, Camera lock, Motion detection, OSD Recording Third-party Support |
|---|
| Network | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP |
|---|
| Third-party Support | Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, |
|---|
| NVS, etc.) | FCC: Part 15 Subpart B |
|---|
| Max. User Access | 128 users CE: CE-LVD: EN 60950-1/IEC 60950-1 |
|---|
| Smart Phone | iPhone, iPad, Android Certifications CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
|---|
| Interoperability | ONVIF 16.12, CGI Conformant UL: UL 60950-1 www.dahuasecurity.com |
|---|
| Ordering Information | Rear Panel |
|---|

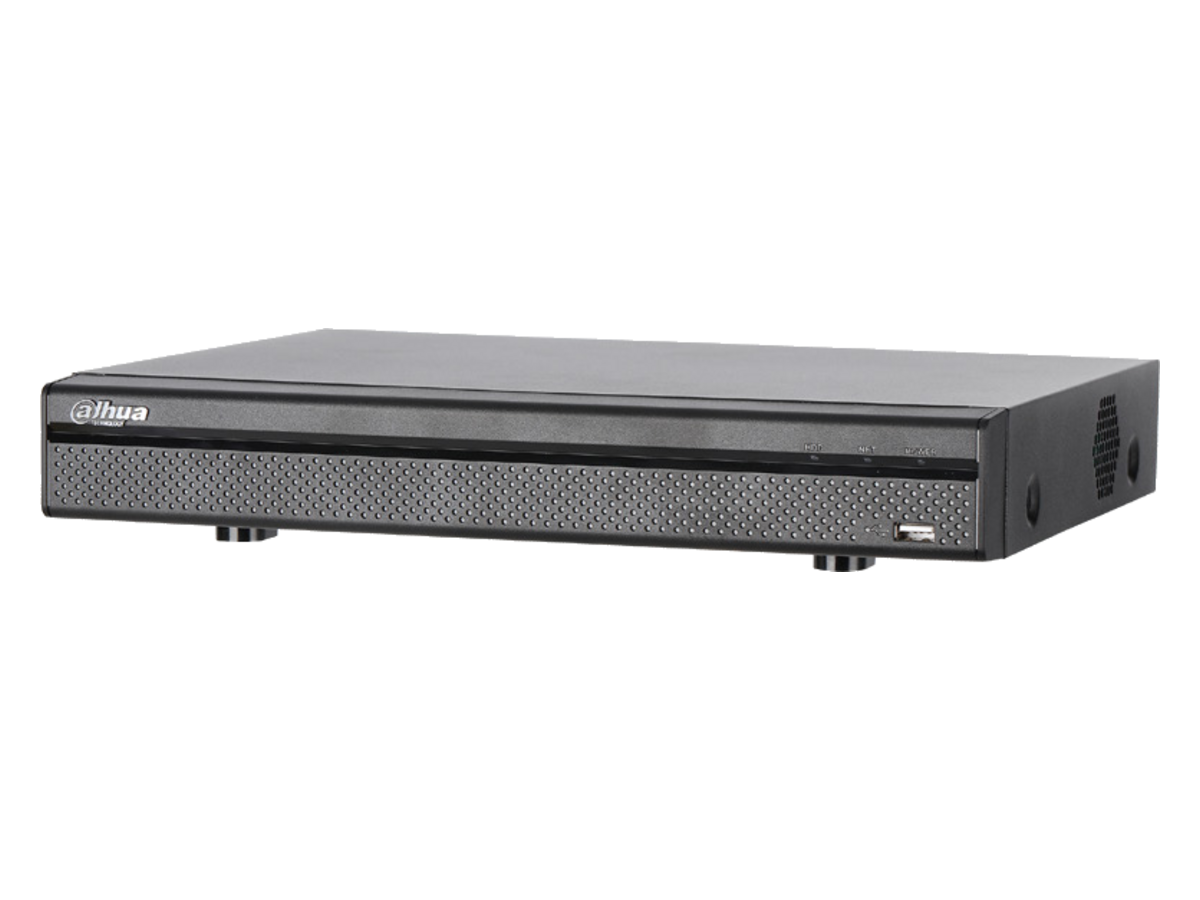

| 類型 | Part Number Description DH-XVR5108H-4KL-X-8P 8 Channel Penta-brid 4K Mini 1U 1 2 9 10 8 Channel XVR DH-XVR5108H-4KL-X-8P Digital Video Recorder Accessory, |
|---|
| DH-PFH101 | Rack Mount Tray |
|---|

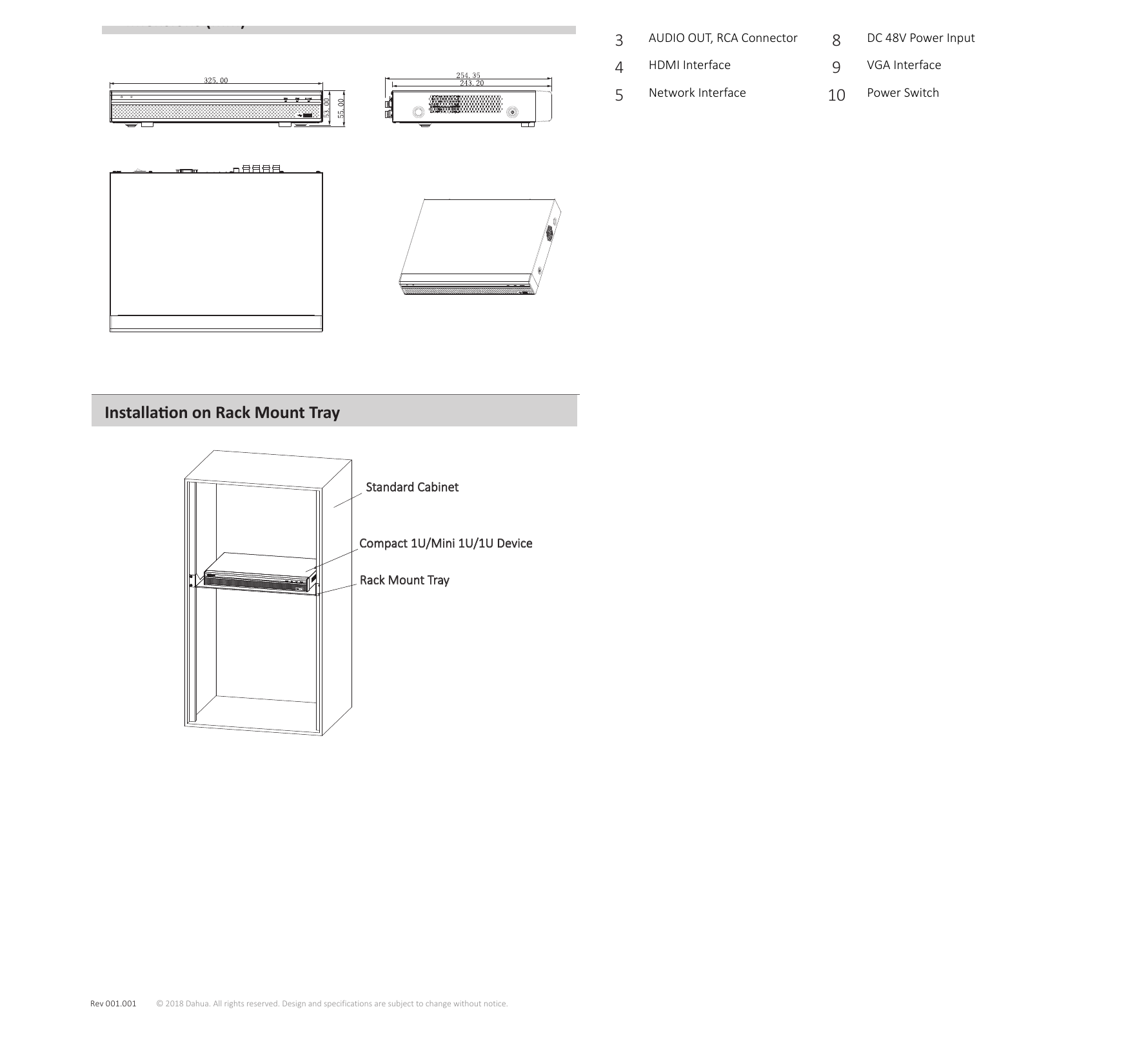

| optional | 3 4 5 6 7 8 1 VIDEO IN 6 RS485 Interface 2 AUDIO IN, RCA Connector 7 USB Interface Dimensions (mm) 3 AUDIO OUT, RCA Connector 8 DC 48V Power Input 4 HDMI Interface 9 VGA Interface 5 Network Interface 10 Power Switch Installation on Rack Mount Tray Standard Cabinet Compact 1U/Mini 1U/1U Device Rack Mount Tray |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
