fortinet FORTIAP-W2-SERIES 為FortiAP™，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 FORTIAP-W2-SERIES 香港價格連安裝報價。
| FortiAP 421E | FortiAP 423E |
|---|---|
| Radio 1 | Radio 2 2.4 GHz 5 GHz |
| transmit chain (dBm) | receiver chain (dBm) transmit chain (dBm) receiver chain (dBm) |
| MSC 0/8/16 (BPSK) | 18 -87 18 -84 |
| MSC 1/9/17 (QPSK) | 17 -84 17 -81 |
| MSC 2/10/18 (QPSK) | 17 -81 17 -79 |
| MSC 3/11/19 (16-QAM) | 16 -78 16 -76 |
| MSC 4/12/20 (16-QAM) | 16 -73 16 -72 |
| MSC 5/13/21 (64-QAM) | 15 -70 15 -68 |
| MSC 6/14/22 (64-QAM) | 15 -69 15 -67 |
| MSC 7/15/23 (64-QAM) | 15 -67 15 -66 |
| MSC 8/16/24 (256-QAM) | 15 -64 15 -65 |
| MSC 9/17/25 (256-QAM) | 15 -63 15 -63 |
| MSC 0 (BPSK) | – – 18 -83 |
| MSC 1 (QPSK) | – – 17 -80 |
| MSC 2 (QPSK) | – – 17 -78 |
| MSC 3 (16-QAM) | – – 16 -75 |
| MSC 4 (16-QAM) | – – 16 -73 |
| MSC 5 (64-QAM) | – – 15 -72 |
| MSC 6 (64-QAM) | – – 15 -70 |
| MSC 7 (64-QAM) | – – 15 -69 |
| MSC 8 (256-QAM) | – – 15 -65 |
| MSC 9 (256-QAM) | – – 15 -63 |
| Hardware Type | Indoor Indoor |
| Number of Radios | 2 2 |
| Number of Antennas | 8 Internal 8 RP-SMA External |
| Peak Antenna Gain | 4 dBi for 2.4 GHz, 5 dBi for 5 GHz 3 dBi for 2.4 GHz, 3 dBi for 5 GHz |
| Frequency Bands (GHz) * | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 5.725–5.851 |
| Frequency of Radio 1 | 2.4 GHz b/g/n (4x4:4 stream) 2.4 GHz b/g/n (4x4:4 stream) |
| QCA9980 | QCA9980 20/40 Mhz (256 QAM) 20/40 Mhz (256 QAM) |
| Frequency of Radio 2 | 5 GHz a/n/ac (4x4:4 stream) 5 GHz a/n/ac (4x4:4 stream) |
| Maximum Data Rate | Radio 1: up to 600 Mbps Radio 1: up to 600 Mbps |
| Radio 2: up to 1.733 Gbps | Radio 2: up to 1.733 Gbps |
| Ethernet Ports | 2x GE RJ45 2x GE RJ45 |
| USB Port | 1x Type A x Type A |
| Serial Console Port | 1 RS-232 x RJ45 1 RS-232 x RJ45 |
| Power over Ethernet (PoE) | Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W) Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W) |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, |
| PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST | PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™ and WPA2™ with 802.1x or Preshared key, WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist WEP and Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power | 19 dBm (80 mW)* 19 dBm (80 mW)* |
| Physical Security | Kensington Lock Kensington Lock |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.11ac, 802.3at, 802.3az, 802.3ad 802.11j, 802.11n, 802.1x, 802.11ac, 802.3at, 802.3az, 802.3ad (LACP support) (LACP support) |
| FortiPresence Capable | Yes Yes |
| Wireless Mesh Capable | Yes Yes Concurrent Clients Per Radio (Maximum / Minimum) 512 / 128 512 / 128 Advanced 802.11 Features 802.11ac Wave2 MU-MIMO Yes Yes |
| Transmit Beam Forming (TxBF) | Yes Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes Yes |
| Maximum Likelihood Demodulation (MLD) | Yes Yes |
| Maximum Ratio Combining (MRC) | Yes Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes Yes |
| MIMO Power Save | Yes Yes |
| Short Guard Interval | Yes Yes |
| WME Multimedia Extensions | Yes (4 priority queues for voice, video, data and background traffic) Yes (4 priority queues for voice, video, data and background traffic) Wireless Monitoring Capabilities |
| Frequencies Scanned | 2.4 and 5 GHz 2.4 and 5 GHz Background Scan with Client Access on 2.4 and 5 GHz Yes Yes |
| Full-time Scan as Dedicated Monitor | Yes Yes Full-time Scan with Client Access on 5G GHz No No Dimensions |

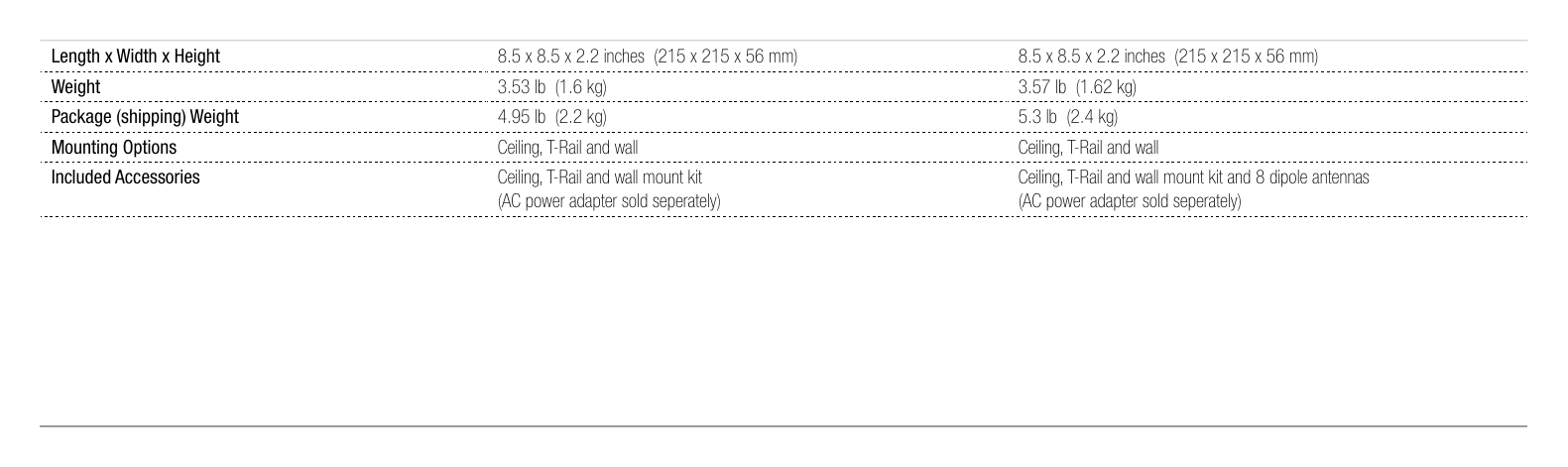

| Length x Width x Height | 8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm) 8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm) |
| 重量 | 3.53 lb (1.6 kg) 3.57 lb (1.62 kg) |
| Package (shipping) Weight | 4.95 lb (2.2 kg) 5.3 lb (2.4 kg) |
| Mounting Options | Ceiling, T-Rail and wall Ceiling, T-Rail and wall |
| Included Accessories | Ceiling, T-Rail and wall mount kit Ceiling, T-Rail and wall mount kit and 8 dipole antennas (AC power adapter sold seperately) (AC power adapter sold seperately) |
| 供電 | Adapter Input: 100–240V, 50/60Hz, 0.9A Adapter Input: 100–240V, 50/60Hz, 0.9A |
| Maximum Output: 12V DC, 3A | Maximum Output: 12V DC, 3A |
| Power Consumption (Average) | 20 W 20 W |
| Power Consumption (Maximum) | 23 W 23 W |
| Humidity | 5–90% non condensing 5–90% non condensing |
| 工作溫度 | -4–122°F (-20–50°C) -4–122°F (-20–50°C) |
| 儲存溫度 | -40–158°F (-40–70°C) -40–158°F (-40–70°C) |
| Directives | Low Voltage Directive • RoHS Low Voltage Directive • RoHS |
| UL2043 Plenum Material | Yes Yes |
| Mean Time Between Failures | >30 Years >30 Years |
| WiFi Alliance Certified | In Process In Process |
| DFS Certified | In Process In Process |
| Limited Lifetime Warranty | Yes Yes |
| H-Plane Pattern | E-Plane Pattern FLOOR (H-Plane) X |
| Radio 1 – 2.4 GHz | Radio 2 – 5.5 GHz Radio 1 – 2.4 GHz Radio 2 – 5.5 GHz |
| Product | SKU Description |
| FC-10-P421E-311-02-DD | 8x5 FortiCare Contract |
| FC-10-P421E-247-02-DD | 24x7 FortiCare Contract |
| FortiAP 423E | FAP-423E Indoor wireless AP — 2x GE RJ45 port, 802.11 a/b/g/n/ac WAVE 2, dual concurrent dual band (2.4 GHz/5 GHz), 4x4 MIMO, external antennas, Ceiling/wall mount kit included, Power adapter not included. For Gigabit PoE injector order: GPI-130. |
| FC-10-P423E-311-02-DD | 8x5 FortiCare Contract |
| FC-10-P423E-247-02-DD | 24x7 FortiCare Contract |
| Gigabit PoE Injector | GPI-130 1-Port Gigabit PoE Power Injector, 802.3at up to 30 W. |
| FortiAP-FPL | FAP-FPL-PRO FortiPlanner Wireless AP Deployment Planning Utility — Pro upgrade license unlocks FortiPlanner lite (free version) to support more than 10 Access Points and includes site survey tool. Requires Windows 7. |
| Power Adapter | SP-FAP400-PA AC Power Adapter for FAP-U421EV, FAP-U423EV, FAP-S421E, FAP-S423E, FAP-421E and FAP-423E. REGION/COUNTRY SKU SUFFIX* |
| Americas-FCC | Europe ETSI International Japan Korea Non-FFCA Singapore Taiwan World 2.4G |
| -A | -E -I -J -K -N -S -T -W * For the complete list of countries and regions, refer to http://www.fortinet.com/wireless. |
| GLOBAL HEADQUARTERS | EMEA SALES OFFICE APAC SALES OFFICE LATIN AMERICA SALES OFFICE |
| Fortinet Inc. | 905 rue Albert Einstein 300 Beach Road 20-01 Sawgrass Lakes Center 899 Kifer Road Valbonne 06560 The Concourse 13450 W. Sunrise Blvd., Suite 430 |
| Sunnyvale, CA 94086 | Alpes-Maritimes, France Singapore 199555 Sunrise, FL 33323 |
| United States | Tel: +33.4.8987.0500 Tel: +65.6395.2788 United States |
| Tel: +1.408.235.7700 | Tel: +1.954.368.9990 www.fortinet.com/sales |
| FST-PROD-DS-FAPID2 | FAP-W2-ID-DAT-R4-201609 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
詳見圖示｜Unit: mm
