| Enterprise-grade protection | seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, |
|---|
| with FortiGuard AI-Powered | end-to-end threat protection in real time. The 60F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 60F family to optimize secure |
|---|
| analytics, and self-healing | connections and deliver a robust user experience at branch locations. |
|---|
| IPS | NGFW Threat Protection Interfaces |
|---|
| FortiGate appliance at no | 1.4 Gbps 1 Gbps 700 Mbps Multiple GE RJ45 | Variants with internal |
|---|
| extra cost | storage | WiFi variants |
|---|
| FortiGate 60F Series | Data Sheet attacks, and secure applications and data with natively integrated FortiGuard AI-Powered Security Services applications across the attack surface converged security and networking technologies security, and unified management from a single FortiOS operating system to avoid delays in accessing applications and accelerates overlay performance regardless of location SD-WAN with security se |
|---|
| Available in | holistic visibility across the entire attack surface. It provides a unified framework for securing networks across on-premises, cloud, hybrid environments, and the convergence of IT, OT, and IoT. By converging networking and security functions into a single operating system, |
|---|
| Appliance | organizations can manage network and security more effectively to detect, investigate, and respond to incidents faster. This unified architecture simplifies operations, eliminates security silos, and allows organizations to scale securely without multiple tools or management complexity. FortiOS also incorporates AI-driven capabilities that enhance threat detection, automate |
|---|
| Virtual | network activity analysis, and deliver more precise remediation guidance. Together, FortiGate firewalls and FortiOS provide intelligent, adaptive protection that reduces complexity, improves operational efficiency, and strengthens security across modern hybrid environments. Learn more about what’s new in FortiOS. https://www.fortinet.com/products/fortigate/fortios Hosted Cloud Intuitive easy to us |
|---|
| Container | endpoint vulnerabilities security, and system status |
|---|
| defense of OT environments and devices. | 4 |
|---|
| scripts, troubleshoot issues, and execute | logging and reporting for SMB. recommended actions. |
|---|
| latest FortiOS technology. | 5 |
|---|
| SoC4 | DESKTOP a/b/g/n/ac-W2 128GB 60F A B Interfaces 1. 1 x USB Port 2. 1 x Console Port 3. 2 x GE RJ45 WAN Ports 4. 1 x GE RJ45 DMZ Port 5. 2 x GE RJ45 FortiLink Ports 1 2 3 4 5 6 6. 5 x GE RJ45 Internal Ports Hardware Features Access layer security FortiLink protocol enables you to converge security and network access by integrating the FortiSwitch into the FortiGate as a logical extension of the fire |
|---|
| FORTIGATE 60F | FORTIGATE 61F Hardware Specifications |
|---|
| GE RJ45 WAN / DMZ Ports | 2/1 2/1 |
|---|
| GE RJ45 Internal Ports | 5 5 |
|---|
| GE RJ45 FortiLink Ports (Default) | 2 2 |
|---|
| Wireless Interface | — — |
|---|
| USB Ports | 1 1 |
|---|
| Console (RJ45) | 1 1 |
|---|
| Internal Storage | — 1 x 128 GB SSD |
|---|
| Trusted Platform Module (TPM) | — — |
|---|
| Bluetooth Low Energy (BLE) | — — |
|---|
| Signed Firmware Hardware Switch | — — System Performance — Enterprise Traffic Mix |
|---|
| IPS Throughput 2 | 1.4 Gbps |
|---|
| NGFW Throughput 2, 4 | 1 Gbps |
|---|
| Threat Protection Throughput 2, 5 | 700 Mbps System Performance Firewall Throughput (1518 / 512 / 64 byte UDP packets) 10/10/6 Gbps |
|---|
| Firewall Latency (64 byte UDP packets) | 3.3 μs |
|---|
| Firewall Throughput (Packets Per Second) | 9 Mpps |
|---|
| Concurrent Sessions (TCP) | 700 000 |
|---|
| New Sessions/Second (TCP) | 35 000 |
|---|
| Firewall Policies | 2000 |
|---|
| IPsec VPN Throughput (512 byte) 1 | 6.5 Gbps |
|---|
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
|---|
| Client-to-Gateway IPsec VPN Tunnels | 500 |
|---|
| SSL-VPN Throughput6 | 900 Mbps |
|---|
| Concurrent SSL-VPN Users6 | 200 (Recommended Maximum, Tunnel Mode) SSL Inspection Throughput (IPS, avg. HTTPS) 3 630 Mbps |
|---|
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 400 SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 55 000 Application Control Throughput (HTTP 64K) 2 1.8 Gbps |
|---|
| CAPWAP Throughput (HTTP 64K) | 8 Gbps |
|---|
| Virtual Domains (Default / Maximum) | 10 / 10 |
|---|
| Maximum Number of FortiSwitches Supported | 24 Maximum Number of FortiAPs (Total / Tunnel Mode) 64 / 32 |
|---|
| Maximum Number of FortiTokens | 500 |
|---|
| High Availability Configurations | Active-Active, Active-Passive, Clustering Dimensions |
|---|

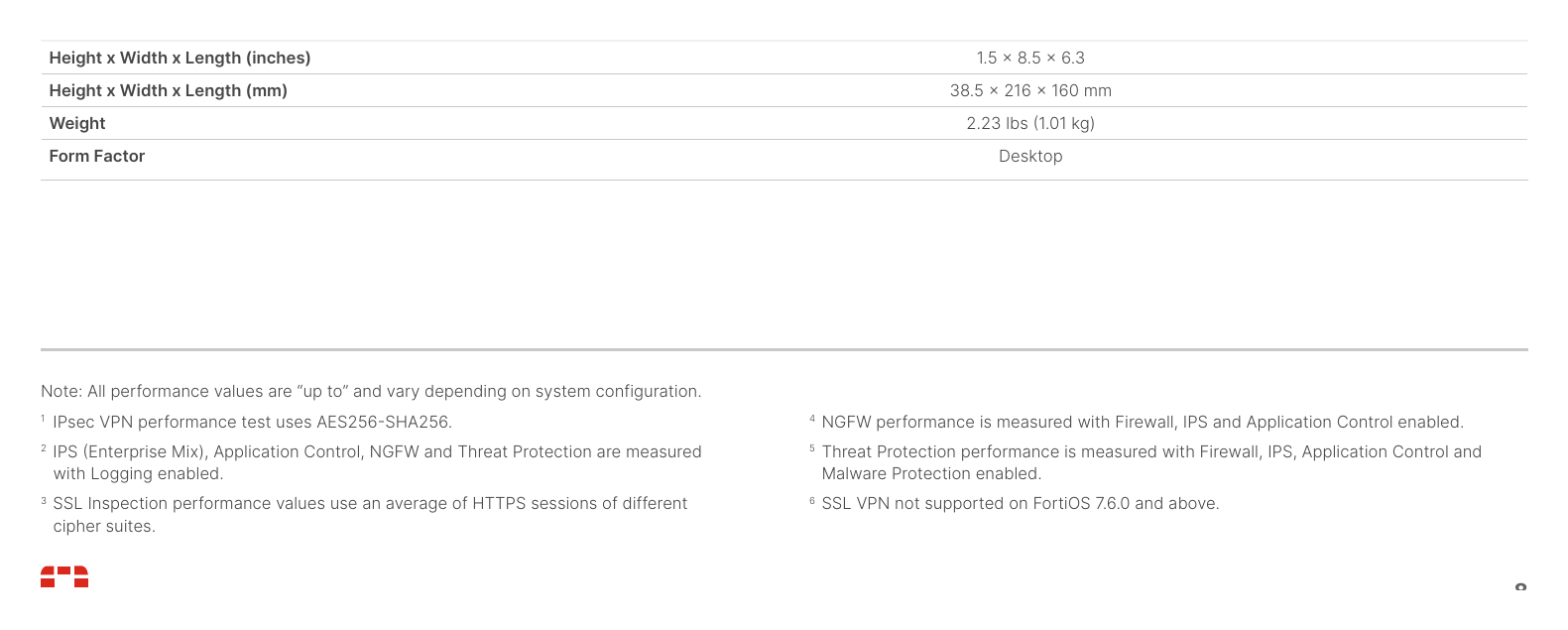

| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
|---|
| Height x Width x Length (mm) | 38.5 x 216 x 160 mm |
|---|
| 重量 | 2.23 lbs (1.01 kg) |
|---|
| Form Factor | Desktop IPsec VPN performance test uses AES256-SHA256. 4 NGFW performance is measured with Firewall, IPS and Application Control enabled. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured 5 Threat Protection performance is measured with Firewall, IPS, Application Control and |
|---|
| with Logging enabled. | Malware Protection enabled. SSL Inspection performance values use an average of HTTPS sessions of different 6 SSL VPN not supported on FortiOS 7.6.0 and above. cipher suites. |
|---|
| Power Rating | 12Vdc, 3A |
|---|
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
|---|
| Maximum Current | 100Vac/1.0A, 240Vac/0.6A |
|---|
| Power Consumption (Average / Maximum) | 10.17 W / 12.43 W 17.2 W / 18.7 W |
|---|
| Heat Dissipation | 42.4 BTU/hr 42.4 BTU/hr |
|---|
| 工作溫度 | 32°F to 104°F (0°C to 40°C) |
|---|
| 儲存溫度 | -31°F to 158°F (-35°C to 70°C) |
|---|
| Humidity | 10% to 90% non-condensing |
|---|
| Noise Level | Fanless 0 dBA |
|---|
| Operating Altitude | Up to 7400 ft (2250 m) |
|---|
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
|---|
| Certifications | USGv6/IPv6 |
|---|
| Multiple User (MU) MIMO | — — |
|---|
| Maximum Wi-Fi Speeds | — — |
|---|
| Maximum Tx Power | — — |
|---|
| 天線增益 | — — |
|---|
| Service | Enterprise Unified Threat Advanced Threat |
|---|
| Category | Service Offering A-la-carte Protection Protection Protection SD-WAN |
|---|
| FortiGuard | IPS — IPS, Malicious/Botnet URLs • • • • |
|---|
| Services | Anti-Malware Protection (AMP)—AV, Botnet Domains, Mobile • • • • Malware, Virus Outbreak Protection, Content Disarm and Reconstruct1, AI‑based Heurestic AV, FortiGate Cloud Sandbox URL, DNS and Video Filtering — URL, DNS and Video1 Filtering, • • • Malicious Certificate |
|---|
| Anti-Spam | • • |
|---|
| AI-based Inline Malware Prevention | • • |
|---|
| Data Loss Prevention (DLP) 2 | • • Attack Surface Security — IoT Device Detection, IoT • • Vulnerability Correlation and Virtual Patching, Security Rating, Outbreak Check OT Security—OT Device Detection, OT Vulnerability Correlation • and Virtual Patching, OT Application Control and IPS 2 |
|---|
| Application Control | --------------included with FortiCare Subscription-------------- Inline CASB 1 --------------included with FortiCare Subscription-------------- |
|---|
| SD-WAN | SD-WAN SLA Database • |
|---|
| SD-WAN Overlay Orchestration Service | • SD-WAN Connector for FortiSASE Secure Private Access • |
|---|
| FortiSASE Starter Kit for n* Users | 3 FortiGate Cloud One Year Cloud-based Log Retention • |
|---|
| FortiTelemetry Cloud | • |
|---|
| NOC and | FortiConverter Service for One Time Configuration Conversion • • Managed FortiGate Service—Available 24x7, with Fortinet NOC • Experts Performing Device Setup, Network, And Policy Change Management FortiGate Cloud—Management, Analysis, and One Year Log • Retention |
|---|
| FortiManager Cloud | • |
|---|
| FortiAnalyzer Cloud | • FortiGuard SOCaaS—24x7 Cloud-Based Managed Log • Monitoring, Incident Triage, and SOC Escalation Service |
|---|
| Hardware | FortiCare Essentials Desktop |
|---|
| and Software | models only |
|---|
| FortiCare Premium | • • • • • |
|---|
| FortiCare Elite | • |
|---|
| Base | Device/OS Detection, GeoIPs, Trusted CA Certificates, Internet |
|---|
| Product | SKU Description |
|---|
| FortiGate 60F | FG-60F 10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port). |
|---|
| FortiGate 61F | FG-61F 10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port), 128 GB SSD onboard storage. |
|---|
| Rack Mount Tray | SP-RACKTRAY-02 Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP-RackTray-01. For list of compatible FortiGate products, visit our Documentation website, docs.fortinet.com. |
|---|
| AC Power Adaptor | SP-FG60E-PDC-5 Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, 70/71F, 70/71G, 80E/81E, 80/81F, 90/91G and FDC-100G. Power cable SP‑FG60CPCOR-XX sold separately. |
|---|
| Wall Mount Kit | SP-FG60F-MOUNT-20 Pack of 20 wall mount kits for FG-60F and FG/FWF-80F series. [RC] = regional code: A, B, D, E, F, I, J, N, P, S, V, and Y. www.fortinet.com |
|---|
