| Enterprise-grade protection | seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, |
|---|
| with FortiGuard AI-Powered | end-to-end threat protection in real time. The 80F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 80F family to optimize secure |
|---|
| analytics, and self-healing | connections and deliver a robust user experience at branch locations. |
|---|
| Inclusive SD-WAN and | IPS NGFW Threat Protection Interfaces |
|---|
| FortiGate appliance at no | 1.4 Gbps 1 Gbps 900 Mbps Multiple GE RJ45 | Variants with PoE, DSL, |
|---|
| extra cost | and/or storage |
|---|
| FortiGate 80F Series | Data Sheet attacks, and secure applications and data with natively integrated FortiGuard AI-Powered Security Services and applications across the attack surface with converged security and networking technologies security, and unified management from a single FortiOS operating system to avoid delays in accessing applications and accelerates overlay performance regardless of location delivered SD-W |
|---|
| Available in | holistic visibility across the entire attack surface. It provides a unified framework for securing networks across on-premises, cloud, hybrid environments, and the convergence of IT, OT, and IoT. By converging networking and security functions into a single operating system, |
|---|
| Appliance | organizations can manage network and security more effectively to detect, investigate, and respond to incidents faster. This unified architecture simplifies operations, eliminates security silos, and allows organizations to scale securely without multiple tools or management complexity. FortiOS also incorporates AI-driven capabilities that enhance threat detection, automate |
|---|
| Virtual | network activity analysis, and deliver more precise remediation guidance. Together, FortiGate firewalls and FortiOS provide intelligent, adaptive protection that reduces complexity, improves operational efficiency, and strengthens security across modern hybrid environments. Learn more about what’s new in FortiOS. https://www.fortinet.com/products/fortigate/fortios Hosted Cloud Intuitive easy to us |
|---|
| Container | endpoint vulnerabilities security, and system status |
|---|
| defense of OT environments and devices. | 4 |
|---|
| scripts, troubleshoot issues, and execute | logging and reporting for SMB. recommended actions. |
|---|
| CONSOLE | SFP 1 – shared – WAN 1 |
|---|
| USB | SFP 2 – shared – WAN 2 2 4 6 B 1 2 3 4 Interfaces 1. 2x GE RJ45/SFP Shared Media Ports 2. 2x WAN GE RJ45 Ports, 3. 6x GE RJ45* Ports |
|---|
| DSL | xDSL |
|---|
| WiFi | WiFi SCAN 1 3 5 A |
|---|
| FG-80F | FG-81F FG-80F-POE FG-81F-POE FG-80F-DSL Interfaces and Modules |
|---|
| GE RJ45/SFP Shared Media Pairs | 2 2 2 2 2 |
|---|
| GE RJ45 Internal Ports | 6 6 — — 6 |
|---|
| GE RJ45 FortiLink Ports (Default) | 2 2 — — 2 |
|---|
| GE RJ45 PoE/+ Ports | — — 6 6 — |
|---|
| GE RJ45 PoE/+ FortiLink Ports (Default) | — — 2 2 — |
|---|
| DSL RJ11 Port | — — — — 1 |
|---|
| Wireless Interface | — — — — — |
|---|
| USB Ports 3.0 | 1 1 1 1 1 |
|---|
| Console (RJ45) | 1 1 1 1 1 |
|---|
| Internal Storage | — 1x 128 GB SSD — 1x 128 GB SSD — |
|---|
| Trusted Platform Module (TPM) | ✓⃝ ✓⃝ ✓⃝ ✓⃝ — |
|---|
| Bluetooth Low Energy (BLE) | ✓⃝ ✓⃝ ✓⃝ ✓⃝ — |
|---|
| Signed Firmware Hardware Switch | — — — — — System Performance — Enterprise Traffic Mix |
|---|
| IPS Throughput 2 | 1.4 Gbps |
|---|
| NGFW Throughput 2, 4 | 1 Gbps |
|---|
| Threat Protection Throughput 2, 5 | 900 Mbps System Performance and Capacity |
|---|
| IPv4 Firewall Throughput | 10 / 10 / 7 Gbps (1518 / 512 / 64 byte, UDP) |
|---|
| Firewall Latency (64 byte, UDP) | 3.23 μs |
|---|
| Firewall Throughput (Packet per Second) | 10.5 Mpps |
|---|
| Concurrent Sessions (TCP) | 1.5 Million |
|---|
| New Sessions/Second (TCP) | 45 000 |
|---|
| Firewall Policies | 5000 |
|---|
| IPsec VPN Throughput (512 byte)1 | 6.5 Gbps |
|---|
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
|---|
| Client-to-Gateway IPsec VPN Tunnels | 2500 |
|---|
| SSL-VPN Throughput | 950 Mbps |
|---|
| Concurrent SSL-VPN Users | 200 (Recommended Maximum, Tunnel Mode) |
|---|
| SSL Inspection Throughput | 715 Mbps (IPS, avg HTTPS)3 |
|---|
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 700 |
|---|
| SSL Inspection Concurrent Session | 100 000 (IPS, avg HTTPS)3 |
|---|
| Application Control Throughput | 1.8 Gbps (HTTP 64K)2 |
|---|
| CAPWAP Throughput (HTTP 64K) | 9 Gbps |
|---|
| Virtual Domains (Default / Maximum) | 10 / 10 |
|---|
| Maximum Number of FortiSwitches | 24 Supported |
|---|
| Maximum Number of FortiAPs | 96 / 48 (Total /Tunnel) |
|---|
| Maximum Number of FortiTokens | 500 |
|---|
| High Availability Configurations | Active-Active, Active-Passive, Clustering IPsec VPN performance test uses AES256-SHA256. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites. NGFW performance is measured with Firewall, IPS and Application Control enabled. Threat Protection performance |
|---|

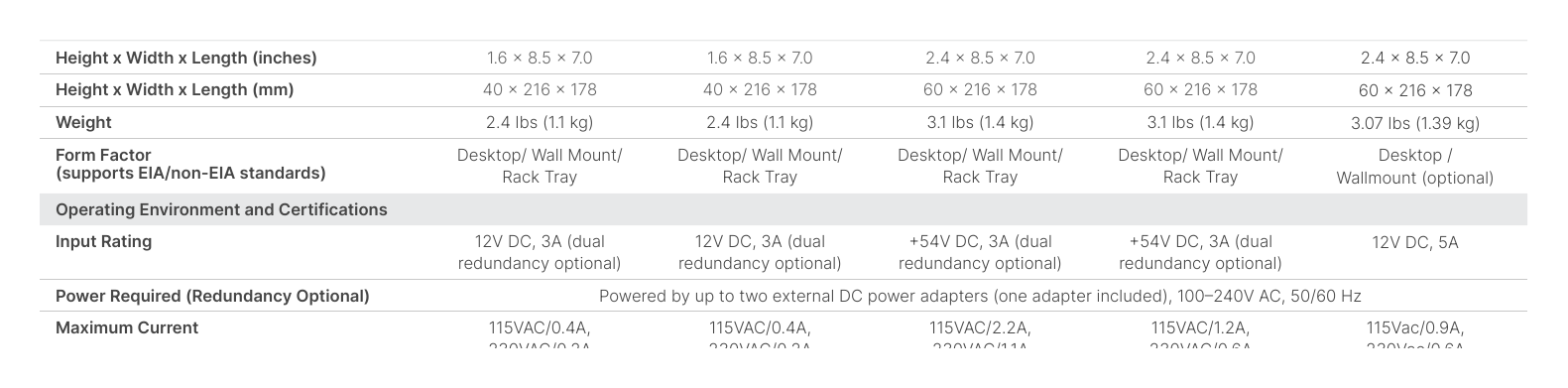

| Height x Width x Length (inches) | 1.6 x 8.5 x 7.0 1.6 x 8.5 x 7.0 2.4 x 8.5 x 7.0 2.4 x 8.5 x 7.0 2.4 x 8.5 x 7.0 |
|---|
| Height x Width x Length (mm) | 40 x 216 x 178 40 x 216 x 178 60 x 216 x 178 60 x 216 x 178 60 x 216 x 178 |
|---|
| 重量 | 2.4 lbs (1.1 kg) 2.4 lbs (1.1 kg) 3.1 lbs (1.4 kg) 3.1 lbs (1.4 kg) 3.07 lbs (1.39 kg) |
|---|
| Form Factor | Desktop/ Wall Mount/ Desktop/ Wall Mount/ Desktop/ Wall Mount/ Desktop/ Wall Mount/ Desktop / |
|---|
| Input Rating | 12V DC, 3A (dual 12V DC, 3A (dual +54V DC, 3A (dual +54V DC, 3A (dual 12V DC, 5A |
|---|
| redundancy optional) | redundancy optional) redundancy optional) redundancy optional) |
|---|
| Power Required (Redundancy Optional) | Powered by up to two external DC power adapters (one adapter included), 100–240V AC, 50/60 Hz |
|---|
| Maximum Current | 115VAC/0.4A, 115VAC/0.4A, 115VAC/2.2A, 115VAC/1.2A, 115Vac/0.9A, 230VAC/0.2A 230VAC/0.2A 230VAC/1.1A 230VAC/0.6A 230Vac/0.6A |
|---|
| Total Available PoE Power Budget* | — — 96W 96W — |
|---|
| Power Consumption (Average / Maximum) | 12.69 W / 15.51 W 13.5 W / 16.5 W 96 W / 118 W 98 W / 137 W 28.0 W / 31.6 W |
|---|
| Heat Dissipation | 52.55 BTU/h 56.30 BTU/h 402.26 BTU/h 467.5 BTU/h 108 BTU/h |
|---|
| 工作溫度 | 32°F to 104°F (0°C to 40°C) |
|---|
| 儲存溫度 | -31°F to 158°F (-35°C to 70°C) |
|---|
| Humidity | 10% to 90% non-condensing |
|---|
| Noise Level | Fanless 0 dBA Fanless 0 dBA 31.56 dBA 31.56 dBA 24.14 dBA |
|---|
| Operating Altitude | Up to 7400 ft (2250 m) |
|---|
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
|---|
| Certifications | USGv6/IPv6 |
|---|
| VDSL2 | — — — — ✓⃝ |
|---|
| ADSL2 | — — — — ✓⃝ |
|---|
| ADSL2+ | — — — — ✓⃝ |
|---|
| G.DMT | — — — — ✓⃝ |
|---|
| T1.413 | — — — — ✓⃝ |
|---|
| G.Lite | — — — — ✓⃝ |
|---|
| Annex A, B, I,J, M and L | — — — — ✓⃝ |
|---|
| Service | Enterprise Unified Threat Advanced Threat |
|---|
| Category | Service Offering A-la-carte Protection Protection Protection SD-WAN |
|---|
| FortiGuard | IPS — IPS, Malicious/Botnet URLs • • • • |
|---|
| Services | Anti-Malware Protection (AMP)—AV, Botnet Domains, Mobile • • • • Malware, Virus Outbreak Protection, Content Disarm and Reconstruct1, AI‑based Heurestic AV, FortiGate Cloud Sandbox URL, DNS and Video Filtering — URL, DNS and Video1 Filtering, • • • Malicious Certificate |
|---|
| Anti-Spam | • • |
|---|
| AI-based Inline Malware Prevention | • • |
|---|
| Data Loss Prevention (DLP) 2 | • • Attack Surface Security — IoT Device Detection, IoT • • Vulnerability Correlation and Virtual Patching, Security Rating, Outbreak Check OT Security—OT Device Detection, OT Vulnerability Correlation • and Virtual Patching, OT Application Control and IPS 2 |
|---|
| Application Control | --------------included with FortiCare Subscription-------------- Inline CASB 1 --------------included with FortiCare Subscription-------------- |
|---|
| SD-WAN | SD-WAN SLA Database • |
|---|
| SD-WAN Overlay Orchestration Service | • SD-WAN Connector for FortiSASE Secure Private Access • |
|---|
| FortiSASE Starter Kit for n* Users | 3 FortiGate Cloud One Year Cloud-based Log Retention • |
|---|
| FortiTelemetry Cloud | • |
|---|
| NOC and | FortiConverter Service for One Time Configuration Conversion • • Managed FortiGate Service—Available 24x7, with Fortinet NOC • Experts Performing Device Setup, Network, And Policy Change Management FortiGate Cloud—Management, Analysis, and One Year Log • Retention |
|---|
| FortiManager Cloud | • |
|---|
| FortiAnalyzer Cloud | • FortiGuard SOCaaS—24x7 Cloud-Based Managed Log • Monitoring, Incident Triage, and SOC Escalation Service |
|---|
| Hardware | FortiCare Essentials Desktop |
|---|
| and Software | models only |
|---|
| FortiCare Premium | • • • • • |
|---|
| FortiCare Elite | • |
|---|
| Base | Device/OS Detection, GeoIPs, Trusted CA Certificates, Internet |
|---|
| Product | SKU Description |
|---|
| FortiGate 80F | FG-80F 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports. |
|---|
| FortiGate 81F | FG-81F 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports, 128GB onboard storage. |
|---|
| FortiGate 80F-POE | FG-80F-POE 8 x GE PoE ports, 2 x RJ45/SFP shared media WAN ports. |
|---|
| FortiGate 81F-POE | FG-81F-POE 8 x GE RJ45 PoE ports, 2 x RJ45/SFP shared media WAN ports, 128GB SSD. |
|---|
| FortiGate 80F-DSL | FG-80F-DSL 8 x GE RJ45 Ports, 2 x RJ45/SFP shared media WAN ports, with embedded DSL module. |
|---|
| Accessories | SKU Description |
|---|
| AC Power Adaptor | SP-FG60E-PDC-5 Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, 70/71F, 70/71G, 80E/81E, 80/81F, 90/91G and FDC‑100G. Power cable SP-FG60CPCOR-XX sold separately. |
|---|
| Rack Mount Tray | SP-RACKTRAY-02 Rack mount tray for all FortiGate E series and F series desktop models. |
|---|
| Wall Mount Kit | SP-FG60F-MOUNT-20 Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass. |
|---|
| Transceivers | SKU Description www.fortinet.com |
|---|
