| Inputs | 8CH(1Vp-p 75ohm, BNC) AHD(5MP, 4MP, 1080p) |
|---|
| Analog camera | HDTVI5MP, 4MP, 1080p) Signal Type HDCVI(5MP, 4MP, 1080p) CVBS(NTSC/PAL) |
|---|
| Network camera | Resolution 5MP ~ CIF |
|---|
| 網絡協議 | SUNAPI(Wisenet), ONVIF 1x HDMI, 1x VGA [Single Mode] - HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 Local Display [Dual Mode] Clone - HDMI: 1920x1080, 1280x1024, 1280x720 - VGA: 1920x1080, 1280x1024, 1280x720 |
|---|
| Live | [Local monitor] - Dynamic layout, Virtual channel view Multi Screen Display - up to 12 division [Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+ 7 / 9 [Analog Camera(NTSC/PAL)] 5MP(Half ), 4MP(Half), 2MP Resolution [Network Camera] - Typ. 2MP(120fps) Performance |
|---|
| 操作系統 | Embedded Linux |
|---|
| Compression | H.265, H.264, MJPEG [Analog Camera(NTSC/PAL)] 5MP(5M Half 12fps/12fps) 4MP(4M Half 15fps/12fps) Record Rate(Analog) 2MP(2M 15fps/12fps) * Half : Horizontal resolution 1/2 |
|---|
| Recording Bandwidth | Max. 40Mbps |
|---|
| 解像度 | 5MP ~ CIF Record Manual, Schedule (Continuous/Event), Event(Pre/Post), Mode Dual Track Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video Event Trigger analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event E-Mail, Event Push, PT |
|---|
| User | Max. 4 users (Set 1, Remote 3) 10CH(Local Monitor),10Ch (CMS), Simultaneous playback 4Ch (Wisenet Mobile), 1Ch(Web) |
|---|
| Fisheye Dewarping | WEB / CMS Date & Time (Calendar) / Event log list / Text search (POS), Back up, Motion, Smart search (Virtual Line w/ |
|---|
| Search & Play | Mode direction, Enter / Exit) * All Search Included Preview ARB search |
|---|
| Supported HDD | Up to 6TB Storage |
|---|
| HDD Slot | SATA 1ea(Max 6TB) |
|---|
| File backup | BU, EXE(Include Player), AVI Backup |
|---|
| Function | Max. 10 CH play, Date-time/title display TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
|---|
| DDNS | Wisenet DDNS |
|---|
| Transmission Bandwidth | Max. 40Mbps |
|---|
| Input/Output | 1 Line in / 1 Line out |
|---|
| Audio | Compression G.711 (N/W Cam G.711, 726) |
|---|
| Audio Communication | 2-Way |
|---|
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, |
|---|
| 安全 | Transmission, Backup) Device Certificate(Hanwha Techwin Root CA) |
|---|
| Supported OS | Windows 10, Mac OS 11 Big Sur and later Web viewer |
|---|
| Supported browser | Chromeor, Edge , Safari SSM, Webviewer, Wisenet Viewer, Wisenet mobile Viewer Software Support CGI(SUNAPI) for integration to 3'rd party VMSNone Functions |
|---|
| Camera Setup | Register Auto, Manual Via GUI, Webviewer, SSM, Wisenet Viewer, Wisenet Mobile Control |
|---|
| PTZ | Viewer, System Controller |
|---|
| Preset | 300 presets |
|---|
| Support Model | iOS, Android |
|---|
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
|---|
| Smart phone | Live(10ch) : Multi-Profile Support |
|---|
| Control | Playback(4Ch Multi Playback, Max 2MP) Event push |
|---|
| Max. Remote Users | Search(3), Live Unicast(10) |
|---|
| Redundancy | ARB Support |
|---|
| Easy configuration | Install wizard support |
|---|
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI LED(Status indicator) : |
|---|
| Front | Indicator Power(1), Record(1), Network(1) |
|---|
| 重設 | Switch(1EA) |
|---|
| HDMI | 1EA |
|---|
| VGA | 1EA |
|---|
| BNC | 8CH In / 1CH Out(Spot Output) |
|---|
| Ethernet | RJ-45(10/100 BASE-T) In 4EA, Out 1EA Alarm - Relay Out1(NO/NC/COM) |
|---|
| USB | 2EA(Front/Rear USB2.0) |
|---|
| Serial(Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ |
|---|
| Power inlet | 1EA DC Input Jack |
|---|
| Log | Log List Max. 100,000 (System Log, Event Log each) |
|---|
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, |
|---|
| 語言 | Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese Environmental |
|---|
| 工作溫度 | 0°C to +40°C(+32℉ to +104℉) |
|---|
| 工作濕度 | 20% ~ 85% RH |
|---|
| Certification | UL, CE, FCC, KC Electrical |
|---|
| Power Input | DC12V |
|---|
| 功耗 | Max. 20.4W (6T HDD 1ea) |
|---|
| Color / Material | Black / Metal |
|---|

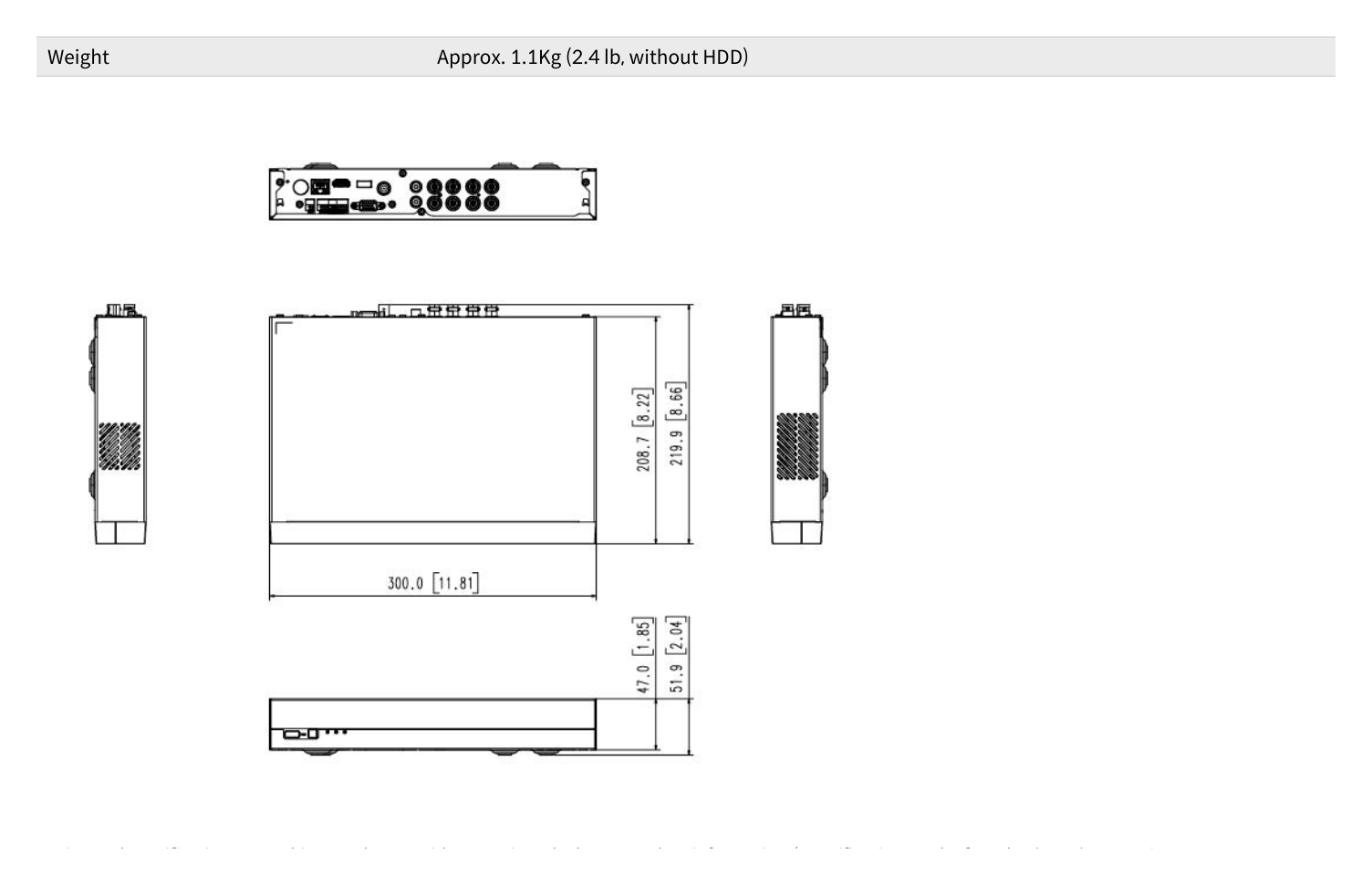

| Dimension (WxHxD) | 300 x 47 x 208.7mm (11.85” x 1.89” x 8.22”) |
|---|
| 重量 | Approx. 1.1Kg (2.4 lb, without HDD) |
|---|
