| 操作系統 | Windows Server 2022 IoT |
|---|
| Memory | Single CPU: 32GB (2x16GB) DDR5, RDIMM 4800 MT/s |
|---|
| Storage | M.2 SSD 2x480GB On RAID 1 (1) Intel Xeon Silver 4410Y Scalable Processors (12Core, 24 Threads, Base Frequency 2.00GHz, Processor Turbo Frequency 3.90Ghz) |
|---|
| Networking | (2) 1GbE RJ45 Ports, (2)10/25Gb SFP28 OCP NIC 3.0 |
|---|
| PCIe | 1 PCIe slots (1 x16 Gen4) |
|---|
| Ports | 1 x USB 2.0, 1 x USB 3.0, 1 x VGA |
|---|
| Video Outputs | 1xVGA |
|---|
| Remote Management | iDRAC9 Storage |
|---|
| Hard Drive Bays | (4) 3.5" Hot Swappable Bays, (2) M.2 SSD Slots |
|---|
| Maximum Storage | up to 80TB of RAW Storage (20TB) |
|---|
| Hard Drive Supported | PCIe NVMe, SSD, SAS and SATA |
|---|
| RAID | RAID 0, 1, 5, 6, 10 |
|---|
| RAID Controller | PERC H755 Controller with 8Gb NVME Cache Recording Rate Throughput 128Channel - Up to 700Mbps, 256Channel - Up to 1.5Gbps |
|---|
| Recording Rate | 384Channel - Up to 2Gbps, *512Channel - Up to 2.7Gbps * The calculation is based upon these parameters: 1080p @ 30fps, 5Mbps/Channel H.264 * Compatible with other Third-party VMS (for more details please contact our sales team) |
|---|
| Form Factor | 1U |
|---|
| 供電 | 2x800W (100-240VAC) Platinum |
|---|
| 工作溫度 | (Min) 50°F - (Max) 95° F, (Min) 10°C - (Max) 35° C |
|---|
| 工作濕度 | 10 ~ 80% (non-condensing) |
|---|
| Heat Dissipation | 3000 Max BTU/hr |
|---|
| Dimensions (WxDxH) | 18.97” (482mm) x 29.85” (748.79mm) x 1.68” (42.8mm) |
|---|

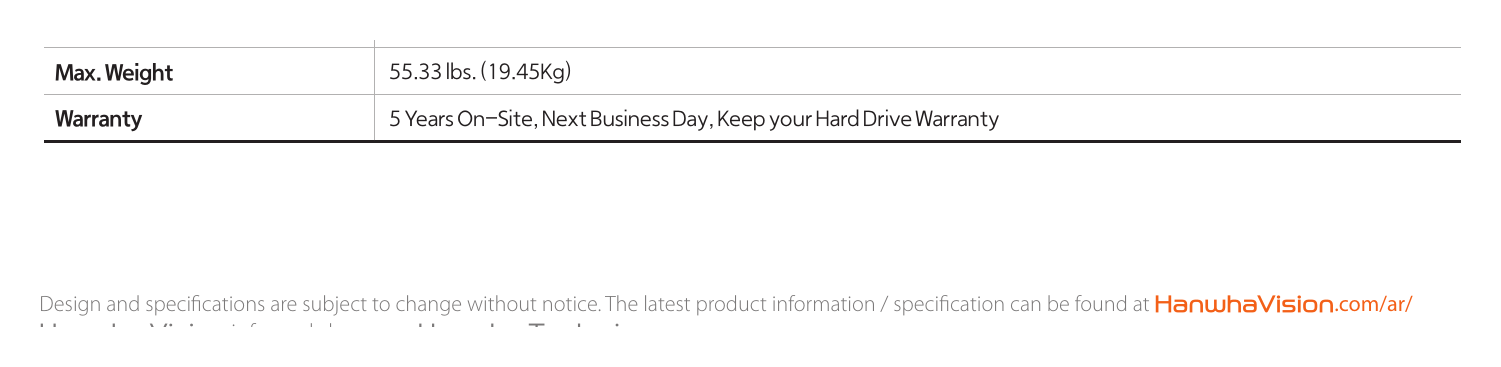

| Max. Weight | 55.33 lbs. (19.45Kg) |
|---|
| Warranty | 5 Years On-Site, Next Business Day, Keep your Hard Drive Warranty Models 1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for OS, |
|---|
| PRO-104-2-2 | 32GB RAM, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 128Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-1-104-2-2 | OS, 32GB RAM, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 256Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-2-104-2-2 | OS, 32GB RAM, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 384Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-3-104-2-2 | OS, 32GB RAM, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 512Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| *PRO-4-104-2-2 | OS, 32GB RAM, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for OS, |
|---|
| PRO-104-16-4 | 32GB RAM, (4)x4TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 128Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-1-104-16-4 | OS, 32GB RAM, (4)x4TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 256Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-2-104-16-4 | OS, 32GB RAM, (4)x4TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 384Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-3-104-16-4 | OS, 32GB RAM, (4)x4TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 512Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| *PRO-4-104-16-4 | OS, 32GB RAM, (4)x4TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for OS, |
|---|
| PRO-104-64-16 | 32GB RAM, (4)x16TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 128Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-1-104-64-16 | OS, 32GB RAM, (4)x16TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 256Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-2-104-64-16 | OS, 32GB RAM, (4)x16TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 384Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-3-104-64-16 | OS, 32GB RAM, (4)x16TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 512Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| *PRO-4-104-64-16 | OS, 32GB RAM, (4)x16TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD Models 1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for OS, |
|---|
| PRO-104-80-20 | 32GB RAM, (4)x20TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 128Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-1-104-80-20 | OS, 32GB RAM, (4)x20TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 256Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-2-104-80-20 | OS, 32GB RAM, (4)x20TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 384Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| PRO-3-104-80-20 | OS, 32GB RAM, (4)x20TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD 512Ch-1U 4 bay, (1) Intel Xeon Silver 4410 Scalable Processor, 12Core, 2x480GB M.2 Boss Card on RAID 1 for |
|---|
| *PRO-4-104-80-20 | OS, 32GB RAM, (4)x20TB SATA HDD, (2)1GbE, (2) 10/25Gb SFP PERC H755 8GB NV Cache RAID Controller, iDRAC 16G, (2) 800W PSU, Windows Server 2022 IoT, 5Yrs Warranty with KYHD |
|---|
