| Imaging Device | 1/3" Progressive scan CMOS |
|---|
| Total Pixels | 2,010(H) x 1,108(V), 2.2M pixels |
|---|
| Effective Pixels | 1,944(H) x 1,092(V), 2.1M pixels |
|---|
| Scanning System | Progressive Color : 1Lux@F1.2, 0.015Lux (Sens-up, 60x) Min. Illumination B/W : 0Lux (IR LED on) |
|---|
| S / N Ratio | 50dB (AGC off, Weight on) |
|---|
| Video Output | SMPTE292M (HD-SDI), Monitoring CVBS |
|---|
| Focal Length (Zoom Ratio) | 3 ~ 8.5mm (2.8x) motorized varifocal |
|---|
| Max. Aperture Ratio | F1.2 |
|---|
| Angular Field of View | H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21°(Tele) |
|---|
| Min. Object Distance | 0.5m (1.64ft) |
|---|
| Focus Control | Simple focus (Motorized V/F) / Manual |
|---|
| Lens Type / Mount Type | DC auto iris / Board-in type Pan / Tilt / Rotate |
|---|
| Pan Range | 0° ~ 354° |
|---|
| Tilt Range | 0° ~ 67° |
|---|
| Key Features | Rotate Range 0° ~ 355° Operational On Screen Display |
|---|
| HD (1280 x 720, 60fps) resolution | Danish, Portuguese, Japanese, Serbian, Czech, Romanian, Turkish |
|---|
| Camera Title | Off / On (Displayed up to 15 characters) |
|---|
| 日夜切換 | Auto (ICR) / External / Color / B/W |
|---|
| • Simple focus, WDR (100dB) | Wide Dynamic Range 100dB |
|---|
| Digital Noise Reduction | SSNRIII (Off / On) |
|---|
| Digital Image Stabilization | Off / On |
|---|
| Motion Detection | Off / On |
|---|
| 尺寸 | Unit : mm (inch) |
|---|
| Privacy Masking | Off / On (4ea polygonal + 16ea rectangular zones) |
|---|
| Sens-up (Frame Integration) | 2x ~ 60x |
|---|
| Gain Control | Off / Low / Medium / High |
|---|
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K) |
|---|
| Electronic Shutter Speed | ESC / A.FLK / Manual 118.5 (4.67") (4.67") |
|---|
| Digital Zoom | Off / On (1x ~ 16x) |
|---|
| Reverse | Off / H-Rev / V-Rev / HV-Rev 118.5 |
|---|
| Profile | Built-in |
|---|
| PIP | Off / On |
|---|
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis)Appear |
|---|
| Ø100.0 | (3.94") |
|---|
| Ø100.0 (3.94") | Ø160.0 (6.3") |
|---|
| Ø160.0 (6.3") | Alarm (MD) output 1, External D/N in 1 |
|---|
| Remote Control Interface | RS-485 |
|---|
| Protocol | RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE |
|---|
| HD-SDI Kit | IR Distance 15m (49.21ft) (IR LED : 12ea) Environmental Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
|---|
| 防護等級 | IP66 Electrical |
|---|
| SPH-120R | SPH-110C Input Voltage / Current Dual (24V AC & 12V DC ±10%) |
|---|
| Repeater | Converter Power Consumption Max. 6W |
|---|

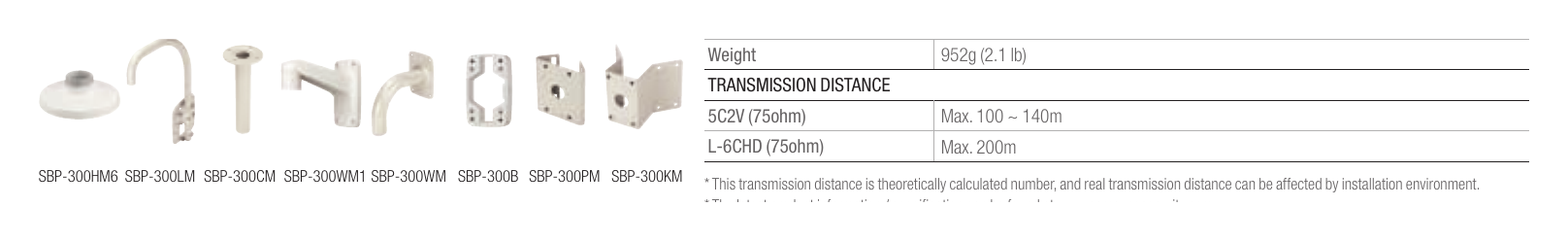

| Accessories (Optional) | Color / Material Ivory / Aluminum |
|---|
| Dimensions (WxH) | Ø160.0 x 118.5mm (Ø6.3" x 4.67") |
|---|
| 重量 | 952g (2.1 lb) Transmission Distance 5C2V (75ohm) Max. 100 ~ 140m |
|---|
| L-6CHD (75ohm) | Max. 200m * The latest product information / specification can be found at www.samsungsecurity.com REVISED 07-2014 |
|---|
