HANWHA SND-5011 CCTV攝影機安裝・保養

Name: HANWHA SND-5011 SND-5011-POR-2P-DATASHEET
Brand: Hanwha
SKU: SND-5011

產品簡介

Hanwha SND-5011 為1.3Megapixel HD Network Dome Camera SND-5011N/P，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SND-5011 香港價格連安裝報價。

Imaging Device：1/3" 1.3M CMOS
Total Pixels：1,384(H) x 1,076(V)
Effective Pixels：1,329(H) x 1,049(V)
Scanning System：Progressive
最低照度：1.6Lux (F1.8, 50IRE), 0.027Lux (Sens-up 60x)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Imaging Device	1/3" 1.3M CMOS
Total Pixels	1,384(H) x 1,076(V)
Effective Pixels	1,329(H) x 1,049(V)
Scanning System	Progressive
最低照度	1.6Lux (F1.8, 50IRE), 0.027Lux (Sens-up 60x)
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Focal Length (Zoom Ratio)	3mm fixed
Max. Aperture Ratio	F1.8
Angular Field of View	H : 91.2˚ / V : 72.3˚ / D : 119.1˚
Min. Object Distance	0.4m (1.31ft)
Focus Control	Manual
Mount Type	Board-in type Pan / Tilt / Rotate
Pan Range	0° ~ 352°
Tilt Range	0° ~ 90°
Rotate Range	0° ~ 352° Operational
Camera Title	Off / On (Displayed up to 15 characters)
日夜切換	Auto (Electrical) / Color / B/W
Backlight Compensation	Off / BLC
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4 programmable zones, 20fps)
Privacy Masking	Off / On (12 rectangular zones)
Sens-up (Frame Integration)	Off / Auto (2x ~ 60x)
Key Features	Gain Control Off / Low / Medium / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
• Max. 1.3M (1280 x 1024) resolution	Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Flip / Mirror	Off / On
• 16 : 9 HD (720p) resolution support	Intelligent Video Analytics Tampering (20fps)
Alarm I/O	Input 1ea
• Built-in 3mm fixed lens	Network
Ethernet	RJ-45 (10/100BASE-T)
• H.264, MJPEG dual codec	Video Compression Format H.264, MJPEG
• Multiple streaming	Resolution 1280 x 1024, 1280 x 720P(HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Max. Framerate	30fps
• Tampering, PoE	Video Quality Adjustment H.264 : Compression level, Target bitrate level control MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
IP	IPv4, IPv6 TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS 83.7 (3.3") HTTPS(SSL) login authentication, Digest login authentication Security IP address filtering, User access log, 802.1x authentication

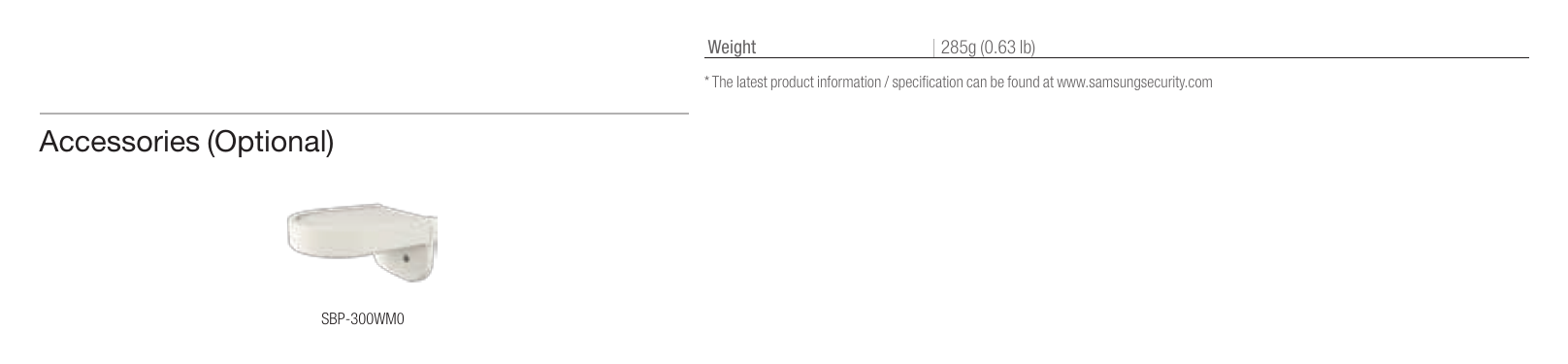

尺寸	Unit : mm (inch)
Streaming Method	Unicast / Multicast
Max. User Access	10 users at unicast mode
ONVIF Conformance	Yes (Profile S) English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language	Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish Supported OS : Windows XP / VISTA / 7, MAC OS 10.7 or higher
Web Viewer	Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9 or higher, Google Chrome 15 or higher, Apple Safari 5.1 or higher (3.3") 83.7 (3.3")
Central Management Software	SmartViewer 83.7 Environmental
Operating Temperature / Humidity	-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Electrical
Input Voltage / Current	12V DC, PoE (IEEE802.3af class2) Ø107.6 (4.24")
Ø107.6	(4.24") Power Consumption Max. 3.7W (12V DC), Max. 4.3W (PoE)
Color / Material	Ivory / Plastic
Dimensions (WxH)	Ø107.6 x 83.7mm (Ø4.24" x 3.3")
重量	285g (0.63 lb) * The latest product information / specification can be found at www.samsungsecurity.com Ø107.6 (4.24") SBP-300WM0
REVISED 07-2014	42
