HANWHA SND-7061 CCTV攝影機安裝・保養

Name: HANWHA SND-7061 SND-7061-SPA-2P-DATASHEET
Brand: Hanwha
SKU: SND-7061

產品簡介

Hanwha SND-7061 為3Megapixel Network Dome Camera SND-7061N/P，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SND-7061 香港價格連安裝報價。

Imaging Device：1/2.8" 3M CMOS
Total Pixels：2,144(H) x 1,588(V)
Effective Pixels：2,096(H) x 1,561(V)
Scanning System：Progressive
最低照度：0.4Lux (F1.2, 50IRE), 0.007Lux (Sens-up 60x)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Imaging Device	1/2.8" 3M CMOS
Total Pixels	2,144(H) x 1,588(V)
Effective Pixels	2,096(H) x 1,561(V)
Scanning System	Progressive
最低照度	0.4Lux (F1.2, 50IRE), 0.007Lux (Sens-up 60x)
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Focal Length (Zoom Ratio)	3 ~ 8.5mm (2.8x) varifocal
Max. Aperture Ratio	F1.2 NVR
Angular Field of View	H : 96°(Wide) ~ 35.3°(Tele) / V : 70.2°(Wide) ~ 27.5°(Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Manual
鏡頭類型	DC auto iris
Mount Type	Board-in type Pan / Tilt / Rotate PERIPHERAL
Pan Range	0° ~ 355°
Tilt Range	17° ~ 90°
Rotate Range	0° ~ 355° Operational
Camera Title	Off / On (Displayed up to 15 characters)
日夜切換	Auto (Electrical) / Color / B/W
Backlight Compensation	Off / BLC
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4 programmable zones, 3M 15fps, 2M 20fps) Analogue
Privacy Masking	Off / On (12 rectangular zones)
Key Features	Sens-up (Frame Integration) Off / Auto (2x ~ 60x)
Gain Control	Off / Low / Medium / High
• Max. 3M (2048 x 1536) resolution	White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Auto / A.FLK / Manual (1/30 ~ 12,000sec)
• 3 ~ 8.5mm (2.8x) varifocal lens	Intelligent Video Analytics Tampering (3M 15fps, 2M 20fps)
Alarm I/O	Input 1ea
• H.264, MJPEG dual codec	Network DVR
Ethernet	RJ-45 (10/100BASE-T)
• Multiple streaming	Video Compression Format H.264, MJPEG
• Smart compression (ROI encoding)	2048 x 1536, 1920 x 1080P (Full HD), 1600 x 1200, 1280 x 1024, 1280 x 960,
解像度	1280 x 720P (HD), 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360,
• Tampering, PoE	320 x 240, 320 x 180 H.264 : Max. 20fps@2048 x 1536, Max. 30fps@the other resolutions MJPEG : 800 x 600 ~ 320 x 180 - 20fps@2048 x 1536, 30fps@the other resolutions Max. Framerate 1280 x 1024 ~1920 x 1080 - 15fps@the other resolutions 2048 x 1536 - 10fps@2048 x 1536
Smart Codec	Yes (Area based method) 92.7 (3.65") H.264 : Compression level, Target bitrate level control Video Quality Adjustment MJPEG : Quality level control
尺寸	Unit : mm (inch)
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 5 profiles) PERIPHERAL
IP	IPv4, IPv6 TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS HTTPS(SSL) login authentication, Digest login authentication Security IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	10 users at unicast mode 92.7 (3.65") (3.65")
ONVIF Conformance	Yes (Profile S) English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, MONITOR 92.7
Webpage Language	Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish Supported OS : Windows XP / VISTA / 7, MAC OS 10.7 or higher
Web Viewer	Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9 or higher, Google Chrome 15 or higher, Apple Safari 5.1 or higher
Ø115.8	(4.56") Ø115.8 (4.56")
Central Management Software	SmartViewer Environmental CONTROLLER
Operating Temperature / Humidity	-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Electrical
Input Voltage / Current	12V DC, PoE (IEEE802.3af)
功耗	Max. 3.7W (12V DC), Max. 4.3W (PoE)
Accessories (Optional)	Mechanical
Color / Material	Ivory / Plastic Access Control
Dimensions (WxH)	Ø115.8 x 92.7mm (Ø4.56" x 3.65") Ø115.8 (4.56")

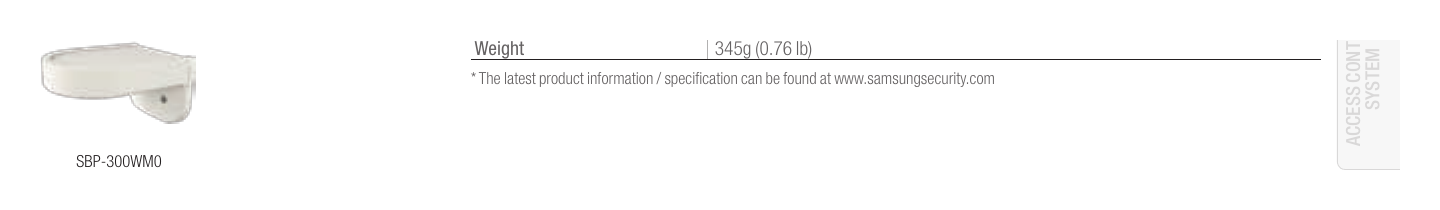

重量	345g (0.76 lb) * The latest product information / specification can be found at www.samsungsecurity.com SBP-300WM0
