| 影像感測器 | 1/2.9" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 最低照度 | Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F2.2 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m |
|---|
| 補光類型 | IR, White Light |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (768 x 432) 60 Hz: 30 fps (768 x 432) Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| Audio Type | Mono sound |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊壓縮 | G.711/AAC-LC |
|---|
| 音訊碼率 | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200, Hik-Connect |
|---|
| 瀏覽器 | Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 標準 | LTE-FDD |
|---|
| Frequency | LTE-FDD:B2/4/5/12/13/17/66/71 |
|---|
| Uplink and Downlink Data Rate | Cat 4, uplink: 50 Mbps, downlink: 150 Mbps |
|---|
| SIM Card Type | Nano SIM |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| 內置麥克風 | Yes, 1 built-in microphone |
|---|
| Built-in Speaker | Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB. |
|---|
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Upload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug, reverse polarity protection |
|---|
| 材質 | Plastic |
|---|

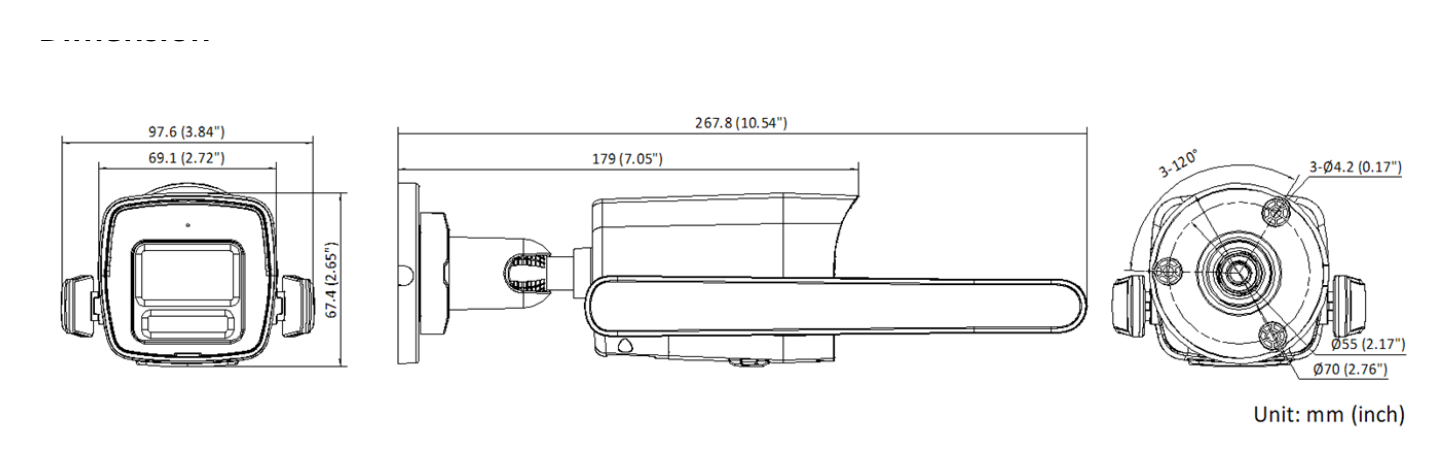

| 尺寸 | 267.8 mm × 97.6 mm × 67.4 mm (10.54" × 3.84" × 2.65") |
|---|
| 包裝尺寸 | 530 mm × 524 mm × 325 mm (8.5" × 4.8" × 4.6") |
|---|
| 重量 | Approx. 390 g (0.84 lb.) |
|---|
| 連包裝重量 | Approx. 722 g (1.59 lb.) |
|---|
| 儲存環境 | -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing) -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing) Conditions |
|---|
| 語言 | English, Ukrainian |
|---|
| 一般功能 | Heartbeat, anti-banding, mirror, password protection, password reset via email |
|---|
| Flashing Light | Yes, White Light CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, |
|---|
| Safety | CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
