| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 2560 × 1920 |
|---|
| 最低照度 | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to180°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0° 4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F2.0 |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 30 m |
|---|
| 紅外波長 | 850 nm 50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main profile |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| 音訊壓縮 | -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC -UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
|---|
| 音訊取樣率 | -UF: 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | -UF: Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface, ISAPI Up to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Plug-in required live view: IE 10+ |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Auto, Schedule, Day, Night |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 影像增強 | BLC, 3D DNR |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | -UF: Built-in memory card slot, support microSD card, up to 256 GB |
|---|
| 內置麥克風 | -UF: Yes |
|---|
| 重設鍵 | -UF: Yes |
|---|
| 基本事件 | Motion detection, video tampering, exception Upload to FTP, notify surveillance center, send email -UF also supports: upload to memory card, trigger recording, trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|

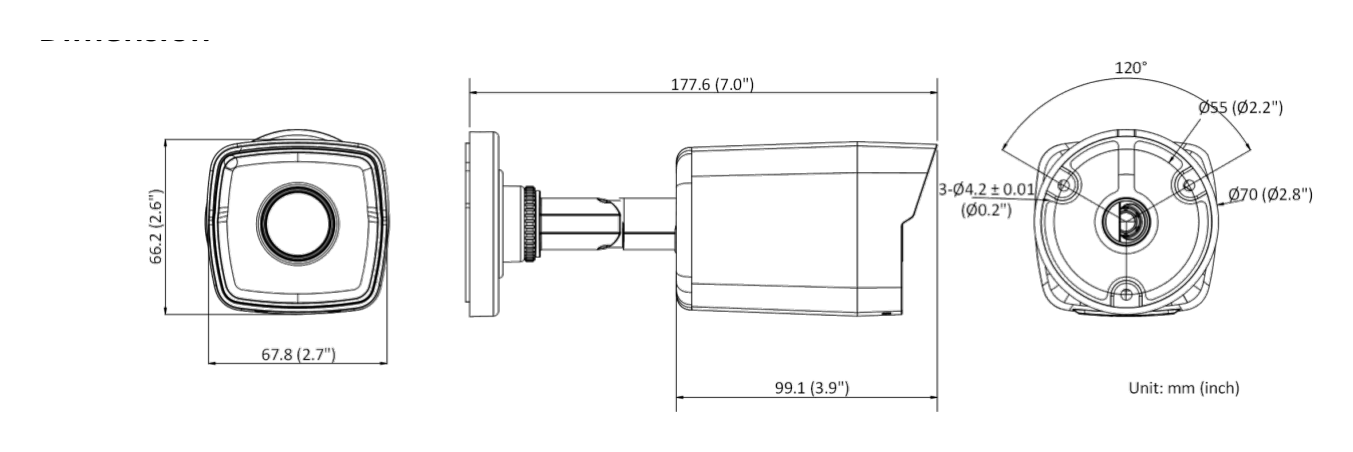

| 尺寸 | 177.6 mm × 67.8 mm ×66.2 mm (7" × 2.7" × 2.6") |
|---|
| 包裝尺寸 | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
|---|
| 重量 | Approx. 270 g (0.6 lb.) |
|---|
| 連包裝重量 | Approx. 481 g (1.1 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 語言 | English, Ukrainian Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015 UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/ |
|---|
| Environment | WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
