| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 最低照度 | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | 24/7 color imaging |
|---|
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126° 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.0 2.8 mm: 1.5 m to ∞ 4 mm: 2.1 m to ∞ 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m |
|---|
| 補光類型 | White Light |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| 感興趣區域 ROI | 1 fixed region(s) for main stream |
|---|
| Audio Type | -U: Mono sound |
|---|
| 音訊壓縮 | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | -U: 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | -U: Yes Password protection, complicated password, watermark, basic and digest |
|---|
| 安全 | authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|
| 同時取流 | Up to 6 channels Open Network Video Interface (Profile S, Profile T, Profile G (only -U model supports)), ISAPI, SDK |
|---|
| 網絡協議 | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
|---|
| 內置麥克風 | -U: Yes |
|---|
| 重設鍵 | -F: Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|
| 材質 | Base: aluminum alloy, cover: plastic |
|---|

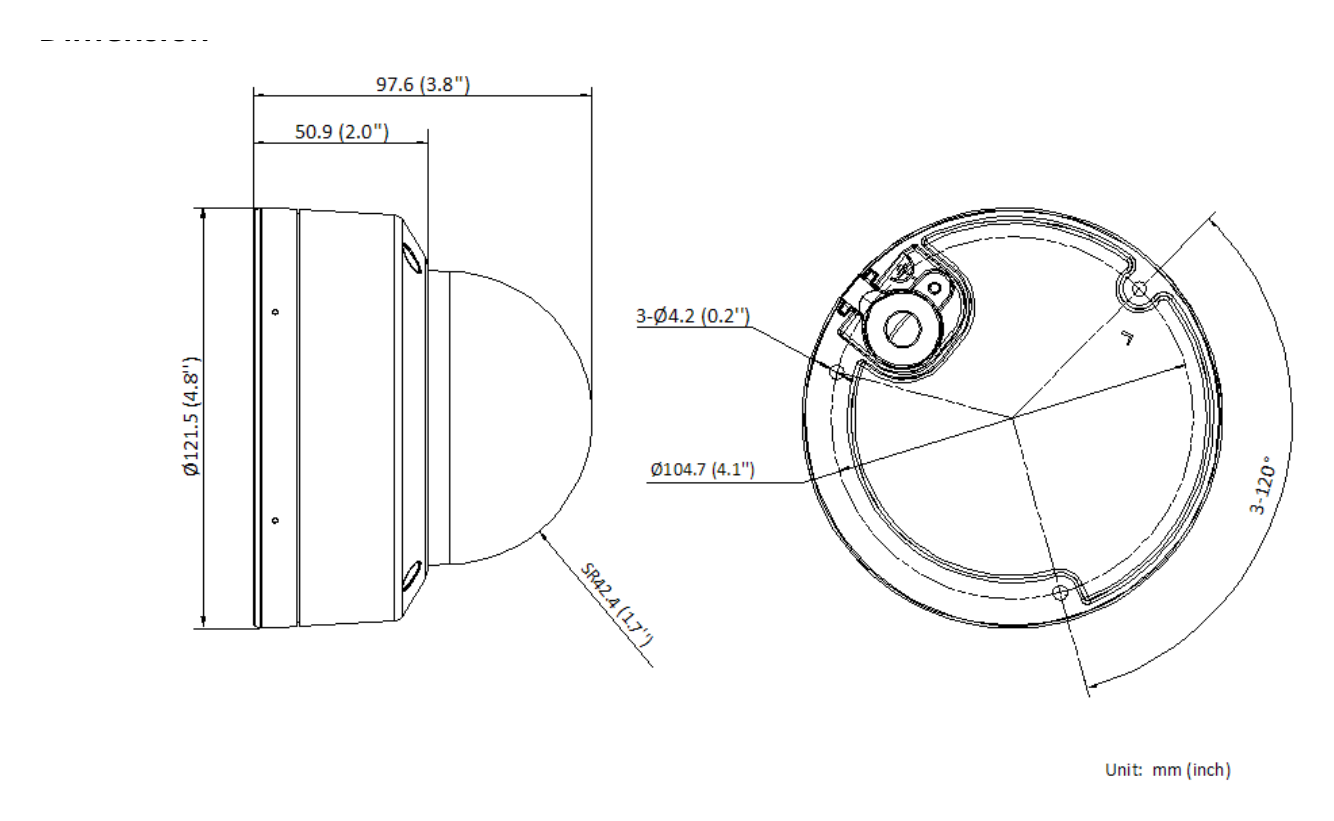

| 尺寸 | Ø 121.5 mm × 97.6 mm (Ø 4.8" × 3.8") |
|---|
| 包裝尺寸 | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
|---|
| 重量 | Approx. 500 g (1.1 lb.) |
|---|
| 連包裝重量 | Approx. 700 g (1.5 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 語言 | English, Ukrainian |
|---|
| 一般功能 | Heartbeat, anti-banding, mirror, password protection, password reset via email FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN |
|---|
| EMC | 50130-4: 2011 + A1: 2014 RCM: AS/NZS CISPR 32: 2015 KC: KN32: 2015, KN35: 2015 UL: UL 62368-1 CB: IEC 62368-1: 2014 + A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU |
|---|
| Environment | WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013 Protection IK08: IEC 62262:2002 |
|---|
