| 影像感測器 | 1/2.8" Progressive Scan CMOS Max. 1920 × 1080 Resolution Min. Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
|---|
| Camera | Illumination |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter Angle Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° Adjustment |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional |
|---|
| 焦距 | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127° |
|---|
| & FOV | 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 2.8 mm: 1 m to ∞ Depth of Field 4 mm: 1.2 m to ∞ 2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m |
|---|
| DORI 偵測距離 | DORI 4 mm: D: 54 m, O: 21 m, R: 11 m, I: 5 m Supplement Light Type Supplement Up to 30 m Light Range Smart |
|---|
| Supplement | Yes Light |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) Main Stream 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) Sub-Stream 60 Hz: 30 fps (640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|---|
| 第三碼流 | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. Main stream: H.265/H.264/H.264+/H.265+ |
|---|
| Video | Video Sub-stream: H.265/H.264/MJPEG Compression Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile Bit Rate CBR,VBR Control |
|---|
| Scalable Video | H.264 and H.265 encoding Region of 1 fixed region(s) for main stream and sub-stream Interest (ROI) -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Compression -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps Audio Bit Rate (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Sampling Rate -S: Yes Noise Filtering TCP/IP, ICMP, HTT |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Smooth Yes Streaming Up to 32 users User/Host 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication |
|---|
| Network | (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication |
|---|
| 安全 | for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection Storage are supported. |
|---|
| 客戶端 | iVMS-4200,Hik-Connect,Hik-Central Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| Parameters | Yes Switch |
|---|
| Image | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client |
|---|
| Settings | software or web browser Day/Night Day,Night,Auto,Schedule |
|---|
| 信噪比 SNR | ≥ 52 dB BLC,HLC,3D DNR Enhancement |
|---|
| 隱私遮蔽 | Yes |
|---|
| 接口 | Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Built-in memory card slot, support microSD card, up to 256 GB Storage -S: 1 input (line in), two-core terminal block , max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block , max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equi |
|---|
| 警報 | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
|---|
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (human and Basic Event vehicle)),video tampering alarm,exception Smart Event |
|---|
| Event | Face detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger |
|---|
| 聯動方式 | recording,trigger capture, trigger alarm output (-S), audible warning (-S) |
|---|
| Perimeter | Line crossing, intrusion |
|---|
| 防護等級 | Support alarm triggering by specified target types (human and vehicle) 12 VDC ± 25%, 0.5 A, max. 6 W,Ø 5.5 mm coaxial power plug,reverse polarity protection, Power PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5 W |
|---|
| 材質 | Body: aluminum alloy, bubble: plastic |
|---|

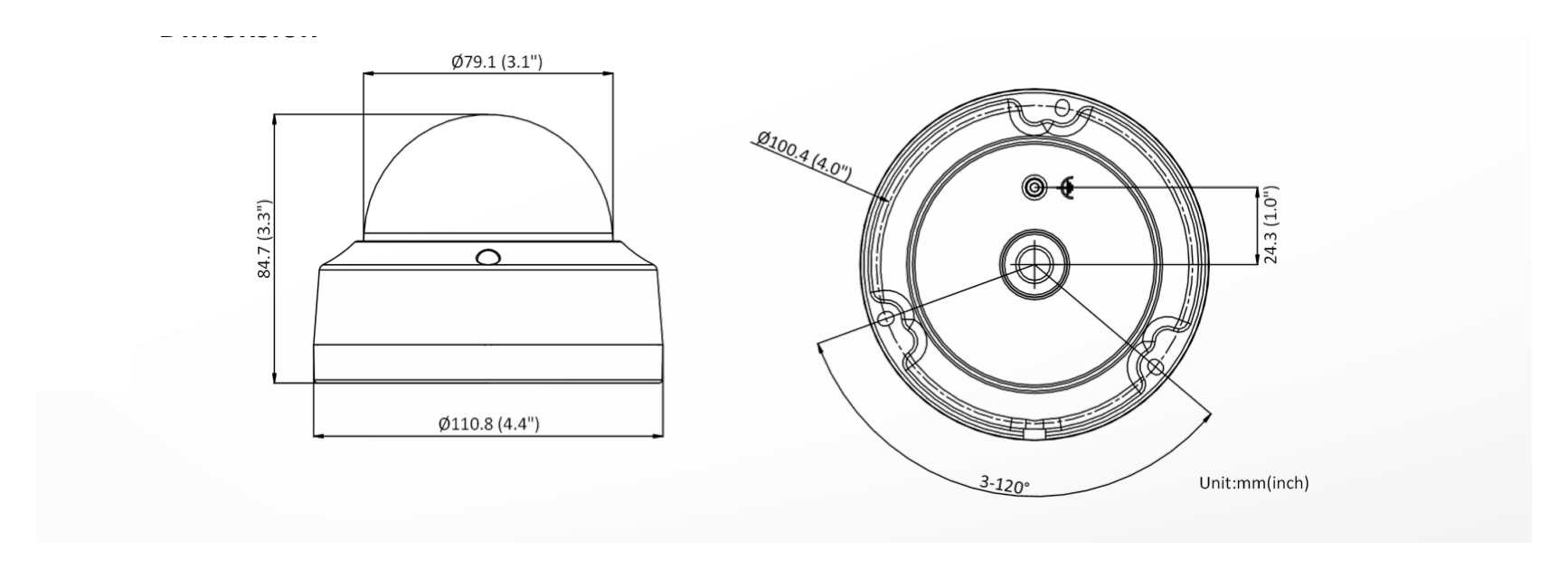

| 尺寸 | Ø 110.8 mm × 84.7 mm (Ø 4.4" × 3.3") Package 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
|---|
