HIKVISION DS-2CD2143G0-IU CCTV攝影機安裝・保養

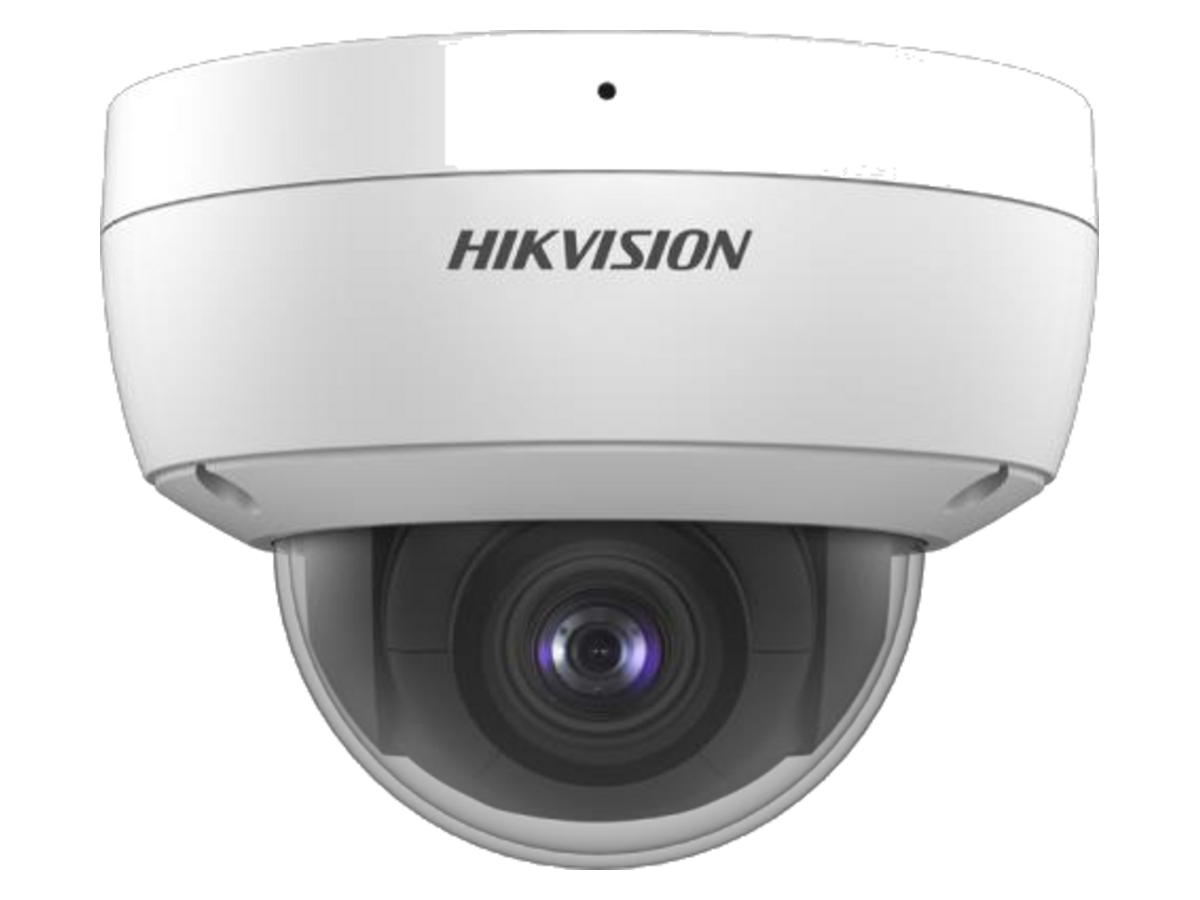

Name: HIKVISION DS-2CD2143G0-IU 半球攝影機
Brand: Hikvision
SKU: DS-2CD2143G0-IU

產品簡介

Hikvision DS-2CD2143G0-IU 為4 MP IR Fixed Dome Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD2143G0-IU 香港價格連安裝報價。

4MP高清畫質，人臉、車牌等細節睇得清楚，事後調片唔怕影像矇糊
夜視低照度表現好，環境好暗都靚少少光就已經有彩色畫面，晚間監控更清晰
120dB寬動態(WDR)，逆光或光暗反差大嘅出入口都唔會過曝或全黑一片
支援PoE一線供電，一條網線同時傳輸影像同電力，安裝走線簡單慳成本
IP66防水防塵連IK10防撞等級，室外日曬雨淋、被人惡意撞擊都撐得住
內置人臉偵測、越界及入侵警報，AI事件觸發自動記錄，減少人手睇片

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/3" Progressive Scan CMOS
最低照度	Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
慢快門	Yes
日夜切換	IR Cut Filter
WDR	120 dB
角度調節	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
鏡頭類型	Fixed lens, 2.8/4/6 mm
光圈	F1.6 2.8 mm: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
視場角 FOV	4 mm: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
鏡頭接口	M12
IR Range	Up to 30 m
Wavelength	850 nm
最大解像度	2688 × 1520 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) Main Stream 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) Sub Stream 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) Third Stream 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) Main stream/
H.264 類型	Main Profile/High Profile
H.264+	Main stream supports
H.265 類型	Main Profile
H.265+	Main stream supports
視頻碼率	32 Kbps to 16 Mbps
SVC 分級編碼	H.264 and H.265 encoding support
音訊壓縮	G.711/G.722.1/G.726/MP2L2/PCM/MP3 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps- Audio Bit Rate 320Kbps(MP3)
環境噪音過濾	Yes
音訊取樣率	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
智能事件	Line crossing detection, intrusion detection and face detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Trigger recording: memory card, network storage, pre-record and post-record
聯動方式	Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
Region of Interest	1 fixed region for main stream and sub-stream
影像增強	BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
日夜模式	Day/Night/Auto/Schedule
網絡儲存	microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
網絡協議	UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
API	ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication
安全	(EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
同時取流	Up to 6 channels
用戶管理	Up to 32 users, 3 levels: administrator, operator and user
客戶端	iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+
瀏覽器	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
通訊接口	1 RJ45 100M self-adaptive Ethernet port
Audio	1 audio input (built-in microphone)
機身儲存	Built-in micro SD/SDHC/SDXC slot, up to 128 GB 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
介面語言	French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e- mail, pixel counter, HTTP listening
重設	Reset via reset button on camera body, web browser and client software -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Conditions
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
供電	12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
功耗及電流	12 VDC, 0.5 A, max. 6 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W

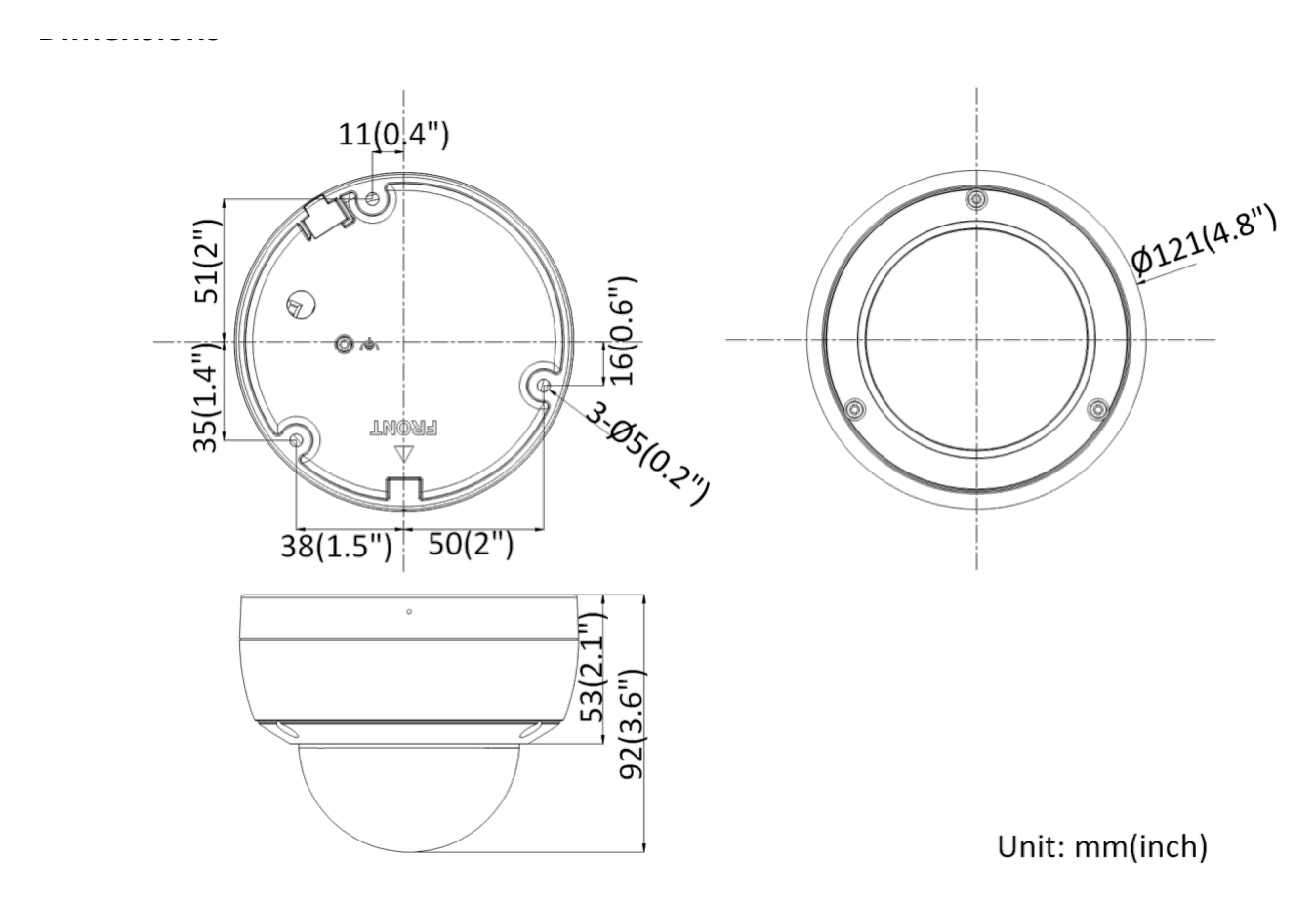

材質	Camera body: metal, bubble: plastic Camera: Φ121 × 92 mm (Φ4.8" × 3.6") Dimensions With package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3") Camera: Approx. 570 g (1.3 lb.) Weight With package: Approx. 950 g (2.1 lb.) 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,
EMC	EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry	2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
防護等級	Ingress protection: IK10 (IEC 62262:2002), IP66 (IEC 60529-2013)
