| 影像感測器 | 1/3" Progressive Scan CMOS Max. 2688 × 1520 Resolution Min. Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|---|
| Camera | Illumination |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter Angle Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Adjustment |
|---|
| 鏡頭類型 | Fixed focal length, 2.8 and 4 mm optional |
|---|
| 焦距 | 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° |
|---|
| & FOV | 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m |
|---|
| DORI 偵測距離 | DORI 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m Supplement Light Type Supplement Up to 30 m Light Range Smart |
|---|
| Supplement | Yes Light |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Main Stream 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) Sub-Stream 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Third Stream 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Main stream: H.265/H.264/H.26 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile Bit Rate CBR/VBR Control Scalable Video Yes Coding (SVC) Region of 1 fixed region for main stream and sub-stream Interest (ROI) -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Compression -S: |
|---|
| 音訊碼率 | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32- |
|---|
| Audio | 192Kbps(MP2L2)/8-320Kbps(MP3) -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Sampling Rate -S: Yes Noise Filtering TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, Protocols 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Up to 6 channels Live View |
|---|
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, IP address filter, Security |
|---|
| Network | Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Storage |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11 |
|---|
| 瀏覽器 | Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| Parameters | Yes Switch |
|---|
| Image | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance |
|---|
| Settings | adjustable by client software or web browser Day/Night |
|---|
| 信噪比 SNR | ≥ 52 dB BLC, HLC, 3D DNR Enhancement Ethernet 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Built-in microSD, up to 512 GB Storage -S: 1 input (line in), two-core terminal block , max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block , max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non - |
|---|
| 警報 | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
|---|
| 重設鍵 | Yes |
|---|
| 基本事件 | Motion detection (human and vehicle targets classification), video tampering alarm, exception Line crossing detection, intrusion detection (support alarm triggering by specified target types |
|---|
| 智能事件 | (human and vehicle)) Face detection Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Linkage Email, trigger alarm output (-S model supports) 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection Power PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|

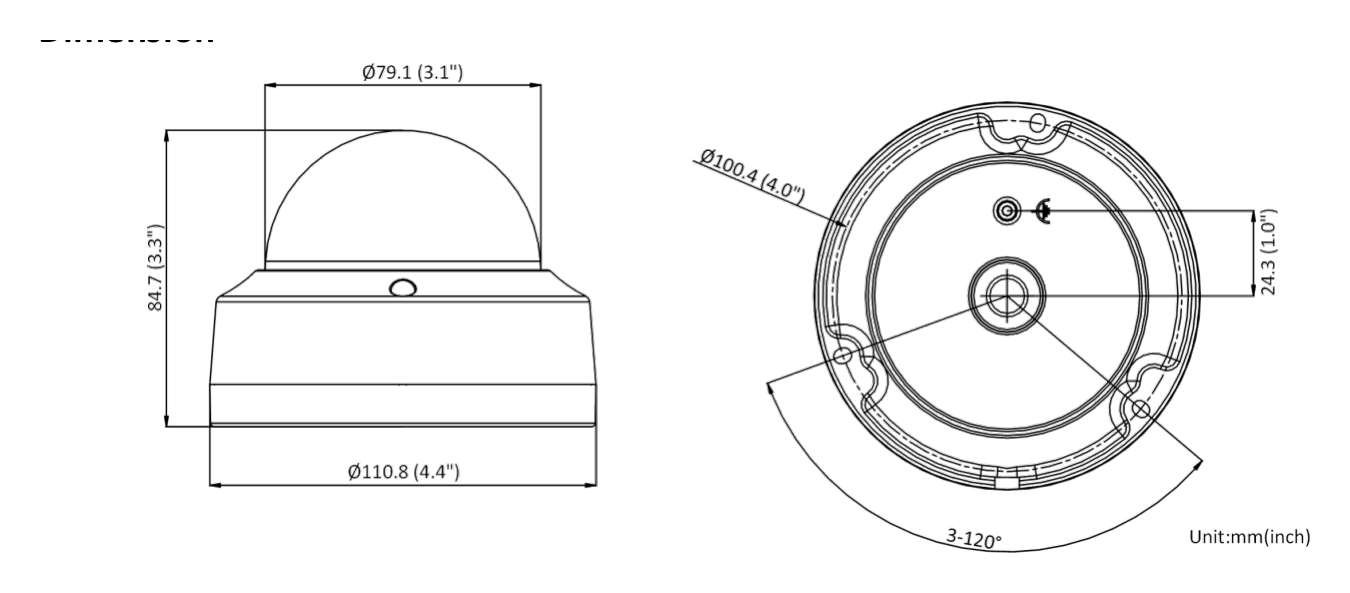

| 尺寸 | Ø110.8 × 84.7 mm (Ø4.4″ × 3.3″) Package 134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″) |
|---|
