| 影像感測器 | 1/2.8" Progressive Scan CMOS Max. 3200 × 1800 Resolution Min. Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|---|
| Camera | Illumination |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter Angle Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Adjustment |
|---|
| 鏡頭類型 | Fixed focal length, 2.8 and 4 mm optional |
|---|
| 焦距 | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° |
|---|
| & FOV | 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m |
|---|
| DORI 偵測距離 | DORI 4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m Supplement Light Type Supplement Up to 30 m Light Range Smart |
|---|
| Supplement | Yes Light |
|---|
| 紅外波長 | 850 nm 50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Main Stream 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) Sub-Stream 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|---|
| 第三碼流 | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Main stream: H.265/H.264/H.264+/H.265+ |
|---|
| Video | Sub-stream: H.265/H.264/MJPEG |
|---|
| Compression | Third stream: H.265/H.264 *Third stream is supported under certain settings. |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile Bit Rate CBR/VBR Control H.264 and H.265 encoding Coding (SVC) Region of 1 fixed region for main stream and sub-stream Interest (ROI) -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Compression -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps Audio Bit Rate (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) -S: 8 kHz/16 kHz/32 kHz/44.1 |
|---|
| 網絡協議 | 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP Simultaneous Up to 6 channels Live View |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication |
|---|
| 安全 | for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Storage |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| Parameters | Yes Switch |
|---|
| Image | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by |
|---|
| Settings | client software or web browser Day/Night Day, Night, Auto, Schedule |
|---|
| 信噪比 SNR | ≥ 52 dB BLC, HLC, 3D DNR Enhancement |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 接口 | Interface |
|---|
| On-Board | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB -S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: |
|---|
| Audio | non-equilibrium; 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium,mono sound |
|---|
| 警報 | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
|---|
| 重設鍵 | Yes |
|---|
| 基本事件 | Motion detection (human and vehicle targets classification), video tampering alarm, exception Line crossing detection, intrusion detection (support alarm triggering by specified target types |
|---|
| 智能事件 | (human and vehicle)) Face detection Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger Linkage capture, send email, audible warning (-IS), trigger alarm output (-S model supports) 12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse pol arity protection Power PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5 W Aluminum alloy body Mater |
|---|

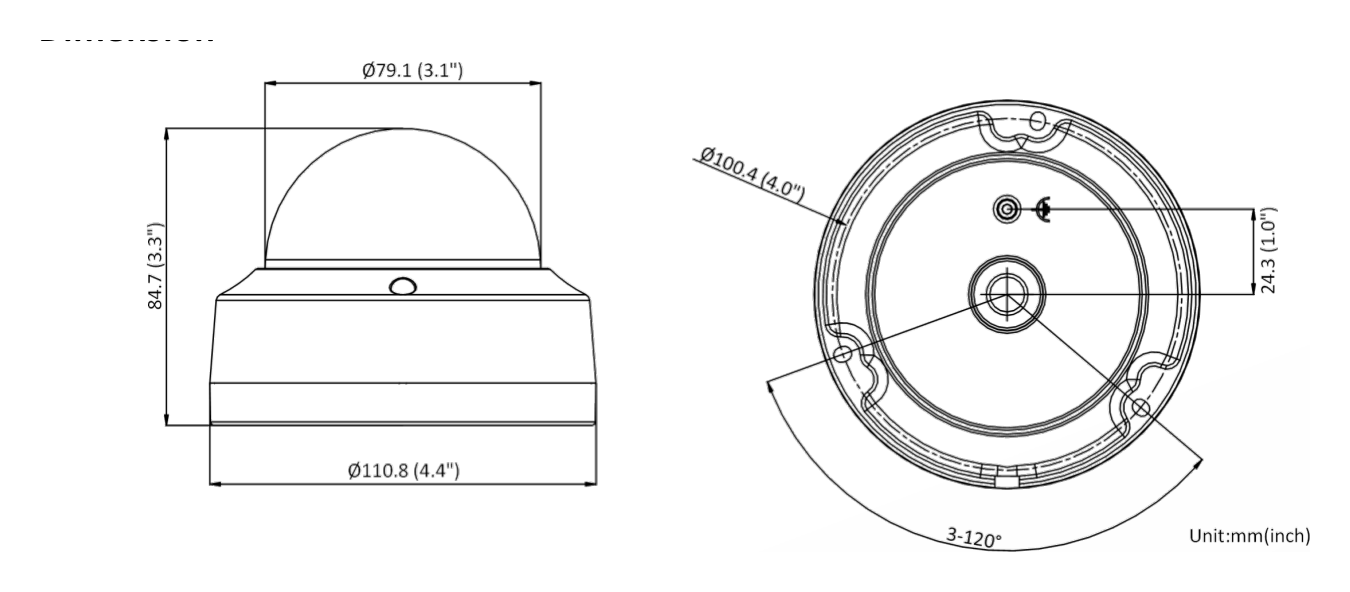

| 尺寸 | Ø 110.8 mm × 84.7 mm (Ø 4.4" × 3.3") Package 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
|---|
