| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最低照度 | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | IR Cut Filter |
|---|
| WDR | 120 dB |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed lens, 2.8/4/6 mm |
|---|
| 光圈 | F2.0 2.8mm: Horizontal FOV: 114° , vertical FOV: 62°, diagonal FOV: 135° |
|---|
| 視場角 FOV | 4 mm: Horizontal FOV: 86° , vertical FOV: 46°, diagonal FOV: 102° 6 mm: Horizontal FOV: 54° , vertical FOV: 30°, diagonal FOV: 62° |
|---|
| 鏡頭接口 | M12 |
|---|
| IR Range | Up to 30 m |
|---|
| Wavelength | 850 nm |
|---|
| 最大解像度 | 1920 × 1080 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) Main Stream 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) Sub Stream 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) Third Stream 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) Main stream/third stream: H.265/H.264 Vi |
|---|
| H.264 類型 | Main Profile/High Profile |
|---|
| H.264+ | Main stream supports |
|---|
| H.265 類型 | Main Profile |
|---|
| H.265+ | Main stream supports |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding Audio(-U) |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps- Audio Bit Rate 320Kbps(MP3) |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 智能事件 | Line crossing detection, intrusion detection and face detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Trigger recording: memory card, network storage, pre-record and post-record |
|---|
| 聯動方式 | Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email |
|---|
| Region of Interest | 1 fixed region for main stream and sub-stream |
|---|
| 影像增強 | BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day/Night/Auto/Schedule microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, |
|---|
| 網絡協議 | UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
|---|
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication |
|---|
| 安全 | (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
|---|
| 同時取流 | Up to 6 channels |
|---|
| 用戶管理 | Up to 32 users, 3 levels: administrator, operator and user |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+ |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
|---|
| 通訊接口 | 1 RJ45 100M self-adaptive Ethernet port |
|---|
| Audio (-U) | 1 audio input (built-in microphone), mono sound |
|---|
| Video Output | No |
|---|
| Interface Style | Pigtail style interface |
|---|
| 機身儲存 | Built-in micro SD/SDHC/SDXC slot, up to 128 GB 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
|---|
| 介面語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) General Function mail, pixel counter, HTTP listening |
|---|
| 重設 | Reset via reset button on camera body, web browser and client software Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Conditions |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
|---|
| 供電 | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
|---|
| 功耗及電流 | 12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W |
|---|

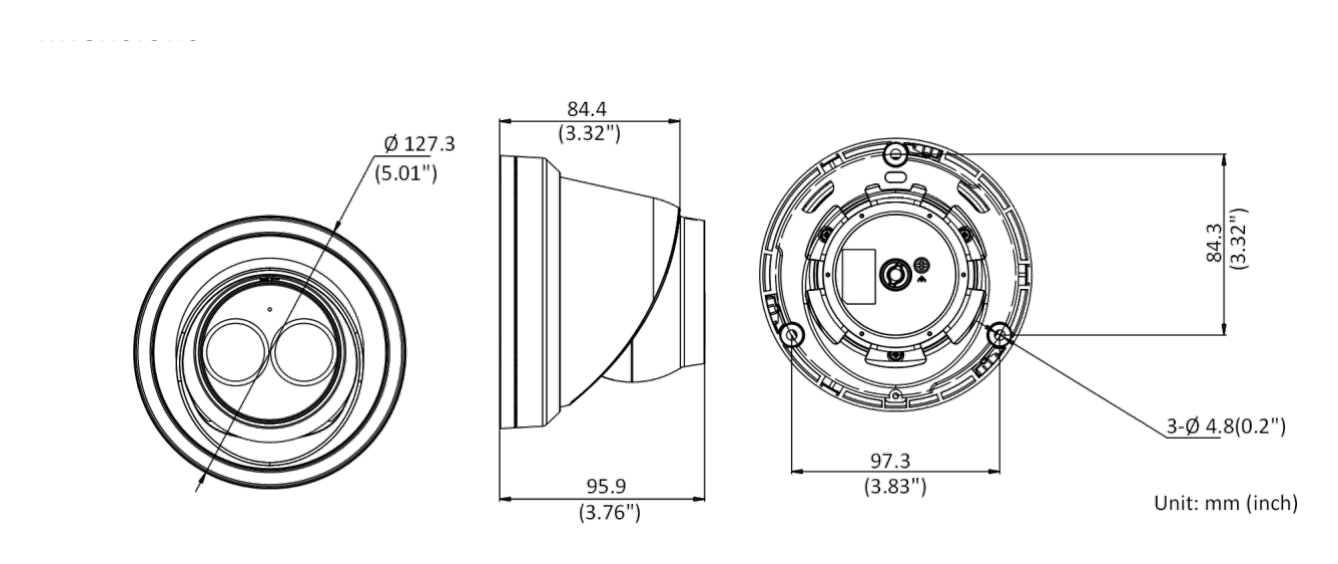

| 材質 | Metal Camera: Φ 127.3 × 95.9 mm (5" × 3. 8") Dimensions With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6") Camera: Approx. 635 g (1.4 lb.) Weight With package: Approx. 890 g (1.96 lb.) 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, |
|---|
| EMC | EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
|---|
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 Without -U: Ingress protection: IP67 (IEC 60529-2013) Protection With -U: Ingress protection: IP66 (IEC 60529-2013) |
|---|
