| 影像感測器 | 1/3" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 4 mm 2.8 mm, horizontal FOV 99.3°, vertical FOV 54.8°, diagonal FOV 120.2° 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0° |
|---|
| 鏡頭接口 | Ø 14 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 2.8 mm: 1.1 m to ∞ 4 mm: 1.3 m to ∞ 2.8mm: D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4mm: D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m |
|---|
| 補光類型 | IR, White Light |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|---|
| 第三碼流 | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 碼率控制 | CBR, VBR |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | -2U: 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, |
|---|
| 網絡協議 | SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Password protection, complicated password, HTTPS encryption, IP address filter, |
|---|
| 安全 | Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Plug-in required live view: IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
|---|
| 圖像參數切換 | Yes |
|---|
| 日夜模式 | Day, Night, Auto, Schedule Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Built-in memory card slot, support micro SD/micro SDHC/micro SDXC card, up to 512 |
|---|
| 重設鍵 | Yes |
|---|
| 內置麥克風 | -2U: 2 built-in microphones Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|---|
| 智能事件 | Scene change detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
|---|
| 人臉抓拍 | Yes Line crossing, intrusion, region entrance, region exiting Perimeter Protection Support alarm triggering by specified target types (human and vehicle) 12 VDC ± 25%, 0.67 A, max. 8 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W |
|---|
| 材質 | Metal |
|---|

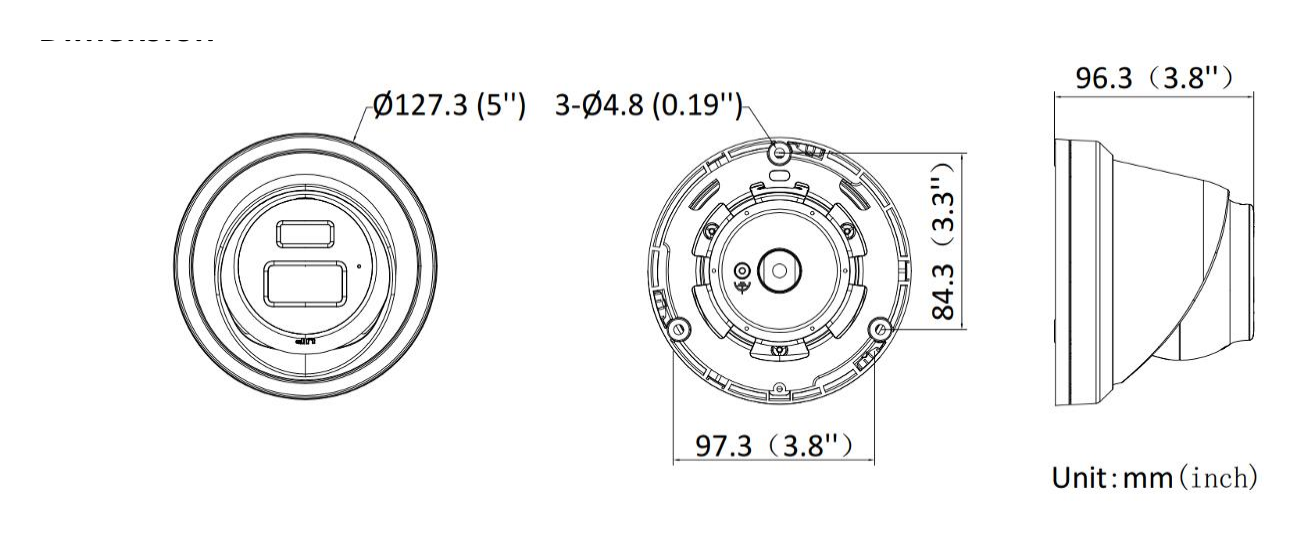

| 尺寸 | Ø 127.3 mm × 96.3 mm (Ø 5.0" × 3.8") |
|---|
| 包裝尺寸 | 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5") |
|---|
| 重量 | Approx. 515 g (1.1 lb.) |
|---|
| 連包裝重量 | Approx. 755 g (1.7 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Sloven |
|---|
| 一般功能 | Heartbeat, mirror, flash log, password reset via email , pixel counter, anti-banding CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
|---|
| Safety | CB: IEC 62368-1: 2014+A11 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
