| 影像感測器 | 1/2.5" Progressive Scan CMOS |
|---|
| 最低照度 | Color: 0.014 lux @(F1.6, AGC ON), 0 lux with IR on |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 慢快門 | Yes |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 日夜切換 | IR Cut Filter |
|---|
| 角度調節 | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
|---|
| 對焦 | Fixed |
|---|
| 鏡頭類型 | 2.8, 4, 6 mm 2.8 mm: horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131° |
|---|
| 視場角 FOV | 4 mm: horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105° 6 mm: horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61° |
|---|
| 光圈 | F1.6 |
|---|
| 鏡頭接口 | M12 |
|---|
| IR Range | Up to 10 m |
|---|
| Wavelength | 850 nm |
|---|
| 最大解像度 | 2688 × 1520 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) Main stream: H.265/H.264 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| H.264+ | Main stream supports |
|---|
| H.265+ | Main stream supports |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding support |
|---|
| 感興趣區域 ROI | Support 1 fixed region for main stream and sub-stream separately |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM |
|---|
| 音訊碼率 | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | ONVIF (PROFILE S, PROFILE G), ISAPI TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, |
|---|
| 網絡協議 | NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
|---|
| 用戶管理 | Up to 32 users. 3 levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, 802.1X authentication |
|---|
| 安全 | (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Support MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR Wired network: Hik-Connect, iVMS-4200, Hik-Central |
|---|
| 客戶端 | Wi-Fi: iVMS-4200, Hik-Central *Wi-Fi connection with Hik-Connect directly is not possible. Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
|---|
| Encryption Mode | -W: WPA, WPA2 |
|---|
| Wi-Fi Protocol | -W: IEEE 802.11b/g/n |
|---|
| Frequency Range | -W: 2.412 GHz to 2.4835 GHz |
|---|
| Channel Bandwidth | -W: 20 MHz -W: 11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps |
|---|
| Wireless Range | -W: Up to 50 m (The performance varies based on actual environment) |
|---|
| 日夜模式 | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
|---|
| 影像增強 | BLC/3D DNR/HLC Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser -S: |
|---|
| Audio | 2 inputs: line in or mic in (built-in microphone) 1 output: line out, mono sound, terminal block -S: |
|---|
| 警報 | 1 input: alarm in 1 output: alarm out, terminal block |
|---|
| 機身儲存 | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
|---|
| 硬件重設 | Yes |
|---|
| 通訊接口 | 1 RJ45 10M/100M self-adaptive Ethernet port Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event baggage detection |
|---|
| Face Detection | Yes |
|---|
| Exception Detection | Scene change detection Trigger recording: memory card, network storage, pre-record and post-record Trigger |
|---|
| 聯動方式 | captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email |
|---|
| 韌體版本 | V5.6.5 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
|---|
| 介面語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via General Function e-mail, pixel counter, HTTP listening Startup and Operating -30 °C to +60 |
|---|

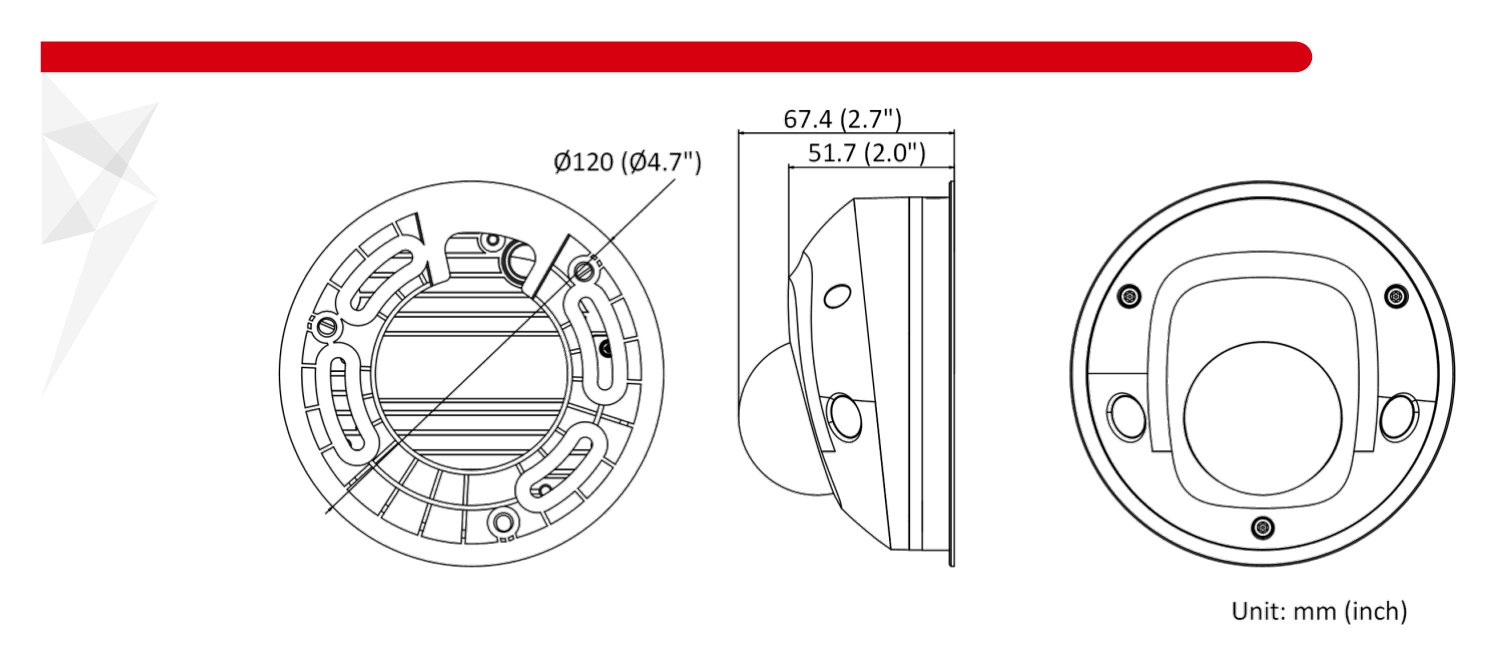

| 尺寸 | Ø 120 mm × 67.4 mm (Ø 4.7" × 2.7") |
|---|
| 重量 | Camera: approx. 400 g (0.9 lb.) |
|---|
| 防護等級 | Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013) |
|---|
