| 影像感測器 | 1/2.5" Progressive Scan CMOS |
|---|
| 最低照度 | Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | IR Cut Filter |
|---|
| Digital Noise Reduction | 3D DNR |
|---|
| WDR | 120dB |
|---|
| 焦距 | 2.8 to 12 mm |
|---|
| 鏡頭類型 | Motorized |
|---|
| 光圈 | F1.4 |
|---|
| 對焦 | Auto |
|---|
| 視場角 FOV | 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5° |
|---|
| 鏡頭接口 | Φ14 |
|---|
| IR Range | Up to 50 m |
|---|
| Wavelength | 850nm Main stream: H.265/H.264 |
|---|
| 視頻壓縮 | Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|---|
| H.264 類型 | Main Profile/High Profile |
|---|
| H.264+ | Main stream supports |
|---|
| H.265 類型 | Main Profile |
|---|
| H.265+ | Main stream supports |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Trigger recording: memory card, network storage, pre-record and post-record |
|---|
| 聯動方式 | Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output (-S), Email |
|---|
| Region of Interest | Support 1 fixed region for main stream and sub-stream |
|---|
| 最大解像度 | 2688 × 1520 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) |
|---|
| 影像增強 | BLC/3D DNR/HLC Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
|---|
| Target Cropping | No |
|---|
| SVC | H.264 and H.265 encoding support |
|---|
| 日夜模式 | Day/Night/Auto/Schedule/Triggered by alarm in (-S) |
|---|
| 網絡儲存 | Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
|---|
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, |
|---|
| 安全 | EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
|---|
| 同時取流 | Up to 6 channels Up to 32 users 3 levels: Administrator, Operator and User |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+ |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
|---|
| Audio (-S) | 1 input (line in), 1 output (line out), mono sound, terminal block |
|---|
| Alarm (-S) | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
|---|
| Video Output | 1Vp-p Composite Output(75Ω) (For adjustment only) 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
|---|
| Reset Button | Yes Yes |
|---|
| 音訊取樣率 | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
|---|
| 音訊壓縮 | G722.1/G.711/G726/MP2L2/PCM/MP3 |
|---|
| 音訊碼率 | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
|---|
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) 32 languages |
|---|
| 介面語言 | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|---|
| 供電 | 12 VDC ± 25%, Φ5.5mm coaxial power plug; PoE(802.3at, class 4) |
|---|
| 功耗 | 12 VDC, 1.2 A, max. 14.4 W |
|---|
| and Current | PoE (802.3at, 42.5V to 57V), 0.5 A to 0.3 A, max. 18 W |
|---|
| Protection Level | IP67, IK10 |
|---|
| 材質 | Metal |
|---|

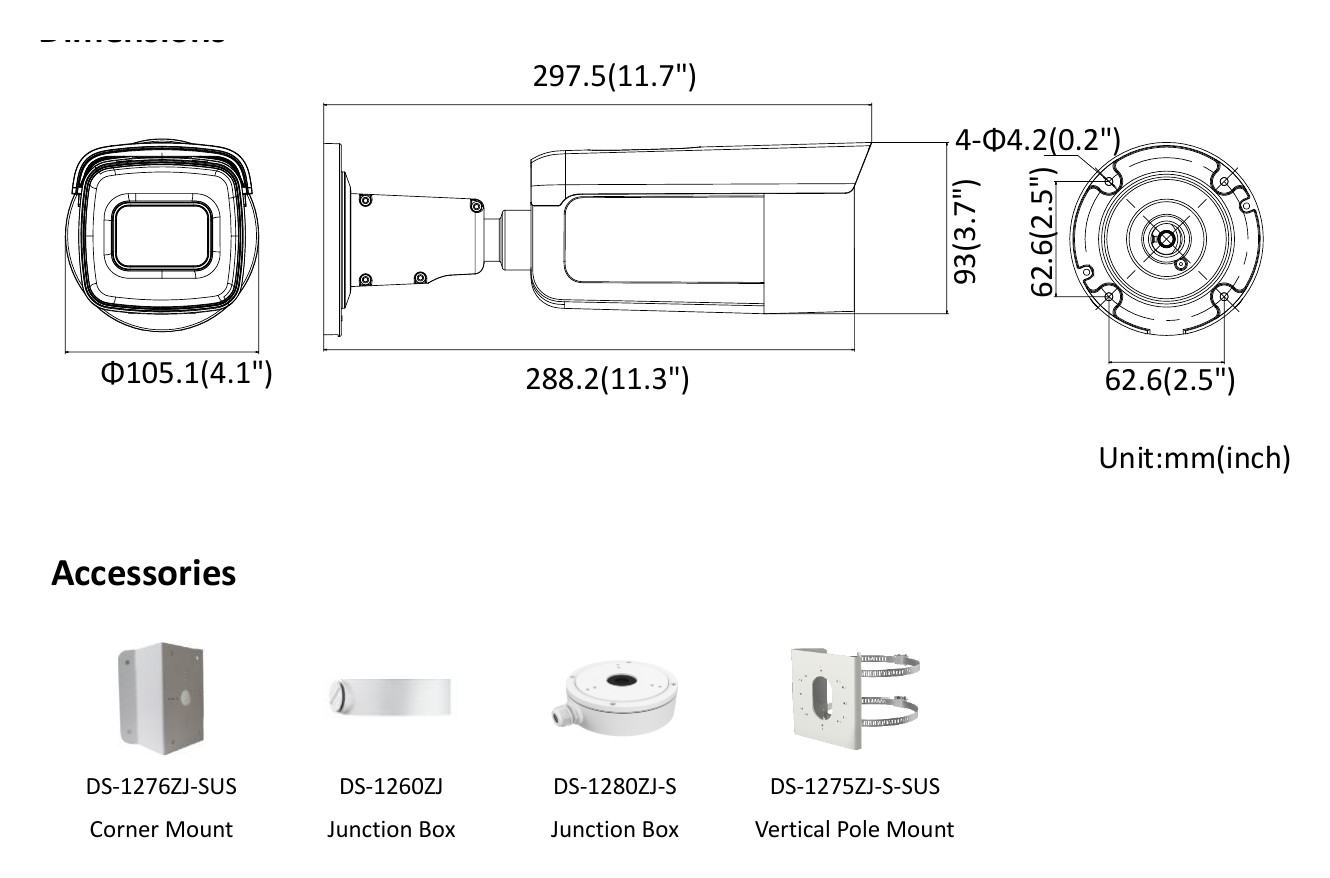

| 尺寸 | Φ105.1 × 297.5 mm (Φ4.1"× 11.7") Weight With Package: 2004g (4.4lb.) 297.5(11.7") 4-Φ4.2(0.2") 62.6(2.5") 93(3.7") |
|---|
| Φ105.1(4.1") | 288.2(11.3") 62.6(2.5") Unit:mm(inch) Accessories |
|---|
| DS-1276ZJ-SUS | DS-1260ZJ DS-1280ZJ-S DS-1275ZJ-S-SUS |
|---|
| Corner Mount | Junction Box Junction Box Vertical Pole Mount |
|---|
